130BETO (2007)
LOWER CASING & DRIVE 1

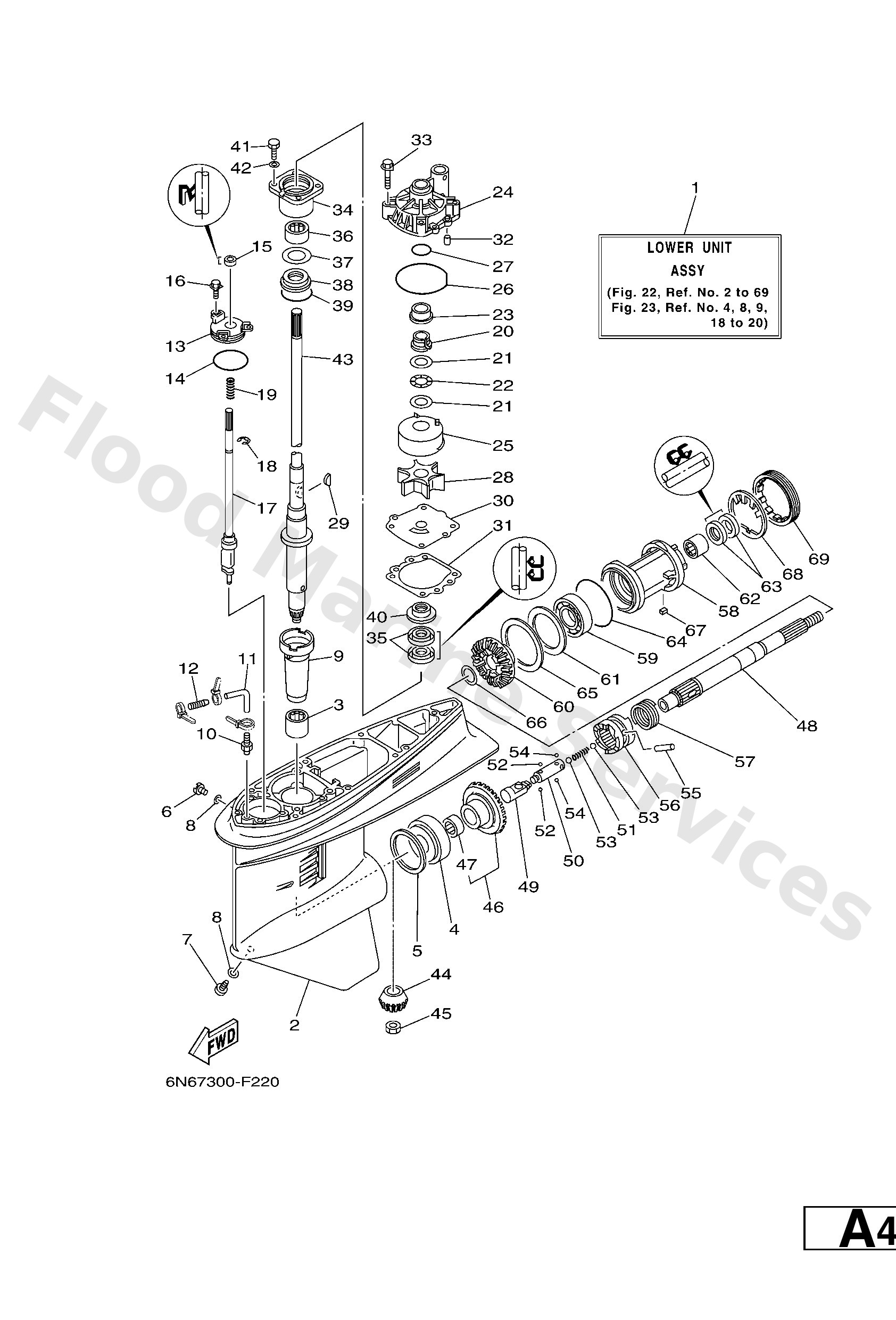

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6E545300178D
L(20.3")
Lower unit assembly
Loading…
↗
2
6E545301058D
Casing, lower
Loading…
↗
3
93315628U9
Brg,cyl-cal roller (6e5)
Loading…
↗
4
93332000U7
Brg,tapered roller 76mm (6e5)
Loading…
↗
5
6E54556701
UR
Shim (t:0.10mm)
Loading…
↗
5
6E54556710
UR
Shim (t:0.12mm)
Loading…
↗
5
6E54556720
UR
Shim (t:0.15mm)
Loading…
↗
5
6E54556730
UR
Shim (t:0.18mm)
Loading…
↗
5
6E54556740
UR
Shim (t:0.30mm)
Loading…
↗
5
6E54556750
UR
Shim (t:0.40mm)
Loading…
↗
5
6E54556760
UR
Shim (t:0.50mm)
Loading…
↗
6
9034008002
Plug, straight screw
Loading…
↗
7
6884534110
Plug, drain
Loading…
↗
8
9043008020
Gasket
Loading…
↗
9
6E54553600
Sleeve, drive shaft
Loading…
↗
10
6E54537800
Nipple, hose
Loading…
↗
11
9044507ME8
L(20.3")
Hose (l250)
Loading…
↗
12
6E58355810
End, nipple
Loading…
↗
13
6E54532100
Plate
Loading…
↗
14
9321058144
O-ring(47x)
Loading…
↗
15
9310609014
Oil seal
Loading…
↗
16
9011906M10
Bolt, with washer
Loading…
↗
17
6E54415002
Shift cam assembly
Loading…
↗
18
9900108600
Circlip(2r6)
Loading…
↗
19
9050111M10
Spring, compression (663)
Loading…
↗
20
61A4553800
Spacer, 1
Loading…
↗
21
9020122M01
Washer, plate(61a)
Loading…
↗
22
9020622M19
Washer, wave(61a)
Loading…
↗
23
61A4552700
Collar, drive shaft
Loading…
↗
24
61A4431101
Housing, water pump
Loading…
↗
25
61A4432202
Insert, cartridge
Loading…
↗
26
9321086M38
O-ring (6e5)
Loading…
↗
27
9321037160
O-ring (6g8)
Loading…
↗
28
6E54435201
Impeller
Loading…
↗
29
9028004M05
Key, woodruff (6e5)
Loading…
↗
30
6E54432300
Outer plate, cartridge
Loading…
↗
31
6E544315A0
Gasket,water pump
Loading…
↗
32
9360612019
Pin, dowel (614)
Loading…
↗
33
9011908M14
Bolt, with washer
Loading…
↗
34
6E5453310094
Housing, bearing
Loading…
↗
35
9310128M16
Oil seal (6e5)
Loading…
↗
36
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
37
6E54558760
UR
Shim (t:0.50mm)
Loading…
↗
37
6E54558710
UR
Shim (t:0.12mm)
Loading…
↗
37
6E54558750
UR
Shim (t:0.40mm)
Loading…
↗
37
6E54558740
UR
Shim (t:0.30mm)
Loading…
↗
37
6E54558720
UR
Shim (t:0.15mm)
Loading…
↗
37
6E54558730
UR
Shim (t:0.18mm)
Loading…
↗
37
6E54558701
UR
Shim (t:0.10mm)
Loading…
↗
38
93341930V2
Bearing, thrust(64d)
Loading…
↗
39
9321055M14
O-ring (70e)
Loading…
↗
40
6E54534400
Cover, oil seal
Loading…
↗
41
9709508025
Bolt (62g)
Loading…
↗
42
9299508600
Washer, plain (663)
Loading…
↗
43
6E54550101
L(20.3")
Drive shaft comp.
Loading…
↗
44
6E54555102
Pinion
Loading…
↗
45
9017016M01
Nut, hexagon (688)
Loading…
↗
46
6E54556001
Gear 1 assembly
Loading…
↗
47
93315425U7
Brg,cyl-cal roller (6e5)
Loading…
↗
48
6E54561101
Shaft, propeller
Loading…
↗
49
6E54564103
Shifter
Loading…
↗
50
6E54563401
Slide, shift
Loading…
↗
51
9050116M37
Spring (6g5)
Loading…
↗
52
9350732009
Ball (12r)
Loading…
↗
53
9351132017
Ball (498)
Loading…
↗
54
9350316003
Ball
Loading…
↗
55
9025008M07
Pin, straight (6g5)
Loading…
↗
56
6E54563101
Clutch, dog
Loading…
↗
57
6E54563301
Ring, cross pin
Loading…
↗
58
6E5453320094
Housing, bearing
Loading…
↗
59
93306208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
60
6E54557101
Gear 2
Loading…
↗
61
6E54557600
Washer, thrust 2
Loading…
↗
62
9331543061
Bearing
Loading…
↗
63
9310130M17
Oil seal (6e5)
Loading…
↗
64
9321086M39
O-ring (6e5)
Loading…
↗
65
6L64557710
UR
Shim (t:0.12mm)
Loading…
↗
65
6L64557740
UR
Shim (t:0.30mm)
Loading…
↗
65
6L64557730
UR
Shim (t:0.18mm)
Loading…
↗
65
6L64557720
UR
Shim (t:0.15mm)
Loading…
↗
65
6L64557700
UR
Shim (t:0.10mm)
Loading…
↗
65
6L64557750
UR
Shim (t:0.40mm)
Loading…
↗
65
6L64557760
UR
Shim (t:0.50mm)
Loading…
↗
66
9020130M92
Washer (6g5)
Loading…
↗
67
9028204010
Key, strait(663)
Loading…
↗
68
6884538302
Washer, claw
Loading…
↗
69
6884538400
Nut
Loading…
↗
