20DMHO (2008)
LOWER CASING & DRIVE 1

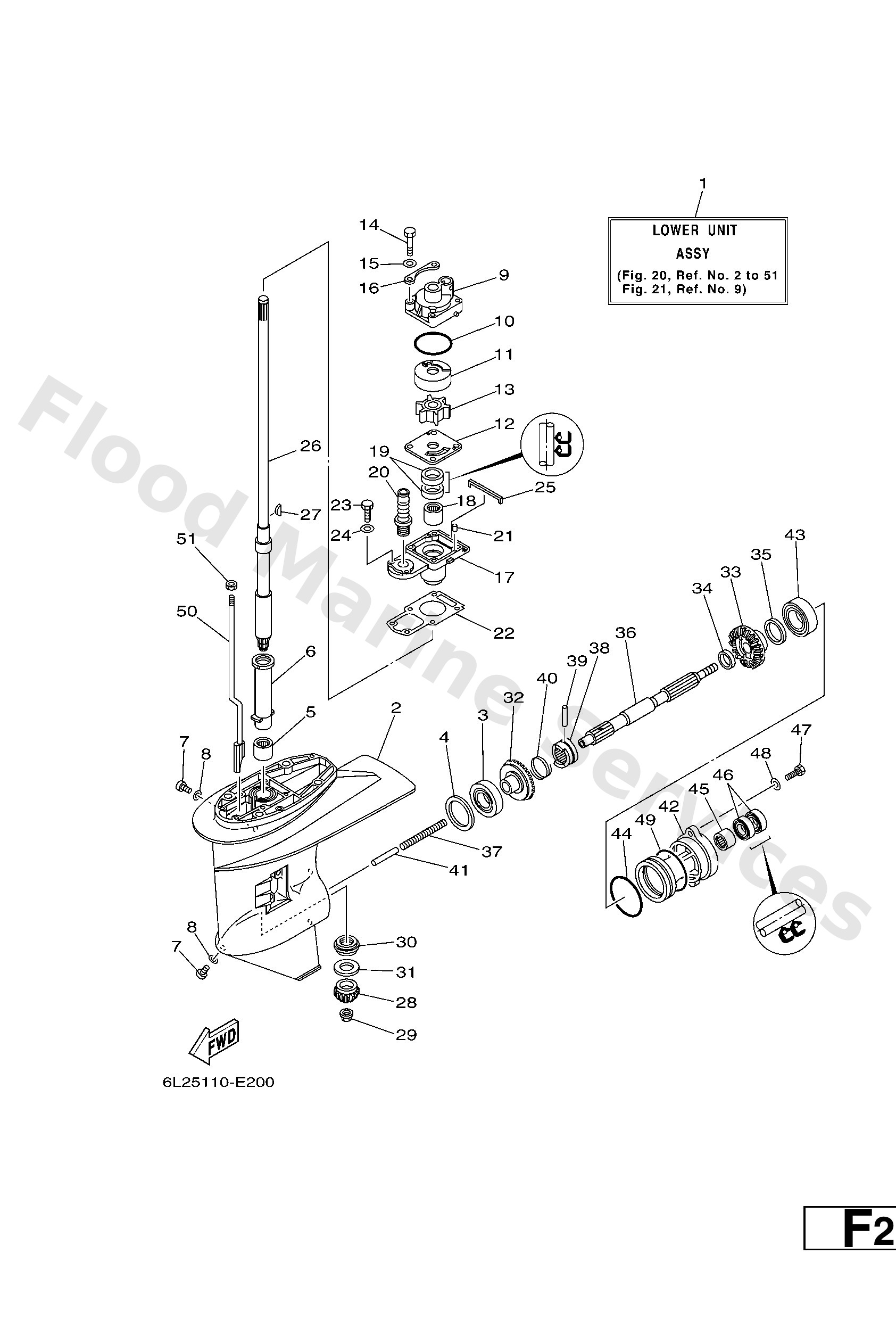

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6L245300134D
L(21.5")
Lower unit assembly
Loading…
↗
1
6L245300034D
S(16.5")
Lower unit assembly
Loading…
↗
2
6L245311024D
Casing, lower
Loading…
↗
3
9333200005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
4
6L24556700
UR
Shim (t:1.0mm)
Loading…
↗
4
6L24556710
UR
Shim (t:1.1mm)
Loading…
↗
4
6L24556720
UR
Shim (t:1.2mm)
Loading…
↗
4
6L24556730
UR
Shim (t:1.3mm)
Loading…
↗
4
6L24556740
UR
Shim (t:1.4mm)
Loading…
↗
5
93315220V9
Bearing, cylindrical(6l2)
Loading…
↗
6
6L24553600
Sleeve, drive shaft
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
9043008020
Gasket
Loading…
↗
9
6L24431100
Housing, water pump
Loading…
↗
10
9321045161
O-ring
Loading…
↗
11
6L24432200
Insert, cartridge
Loading…
↗
12
6L24432300
Outer plate, cartridge
Loading…
↗
13
6L24435200
Impeller
Loading…
↗
14
9709506040
Bolt (682)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
6L24432800
Plate
Loading…
↗
17
6L245331005B
Housing, bearing
Loading…
↗
18
9331522004
Brg,cyl-cal roller 21g nt
Loading…
↗
19
9310120048
Oil seal (20x30x6-648)
Loading…
↗
20
6L24414700
Boot, shift rod
Loading…
↗
21
9360412M07
Pin, dowel (688)
Loading…
↗
22
6L245315A0
Packing,l0wer casing
Loading…
↗
23
9709506020
Bolt(7u8)
Loading…
↗
25
6L24537500
Damper, seal
Loading…
↗
26
6L24551010
L(21.5")
Drive shaft assembly
Loading…
↗
26
6L24551000
S(16.5")
Drive shaft assembly
Loading…
↗
27
9028003024
Key, woodruff(662)
Loading…
↗
28
6L24555101
Pinion
Loading…
↗
29
9017910M14
Nut(6j8)
Loading…
↗
30
93341320U0
Bearing, thrust (6l2)
Loading…
↗
31
6L24558700
UR
Shim (t:1.5mm)
Loading…
↗
31
6L24558710
UR
Shim (t:1.6mm)
Loading…
↗
32
6L24556010
Gear
Loading…
↗
33
6L24557100
Gear
Loading…
↗
34
9020120417
Washer, plate(663)
Loading…
↗
35
6L24557700
UR
Shim (t:1.0mm)
Loading…
↗
35
6L24557710
UR
Shim (t:1.1mm)
Loading…
↗
35
6L24557720
UR
Shim (t:1.2mm)
Loading…
↗
35
6L24557730
UR
Shim (t:1.3mm)
Loading…
↗
36
65W4561100
Shaft, propeller
Loading…
↗
37
9050110065
Spring compression648456360000
Loading…
↗
38
6L24563100
Clutch, dog
Loading…
↗
39
9025005010
Pin straight 648456320000
Loading…
↗
40
6484563300
Ring, cross pin
Loading…
↗
41
6484563500
Plunger,shift
Loading…
↗
42
6L245361034D
Cap, lower casing
Loading…
↗
43
9330600612
Bearing(2hr)
Loading…
↗
44
9321060MA3
O-ring(6j8)
Loading…
↗
46
9310120M07
Oil seal
Loading…
↗
49
9321060M99
O-ring(6t3)
Loading…
↗
50
6L24415000
S(16.5")
Shift cam assembly
Loading…
↗
50
6L24415010
L(21.5")
Shift cam assembly
Loading…
↗
51
9538006600
Nut(661)
Loading…
↗
