30DETO (2009)
LOWER CASING & DRIVE 1

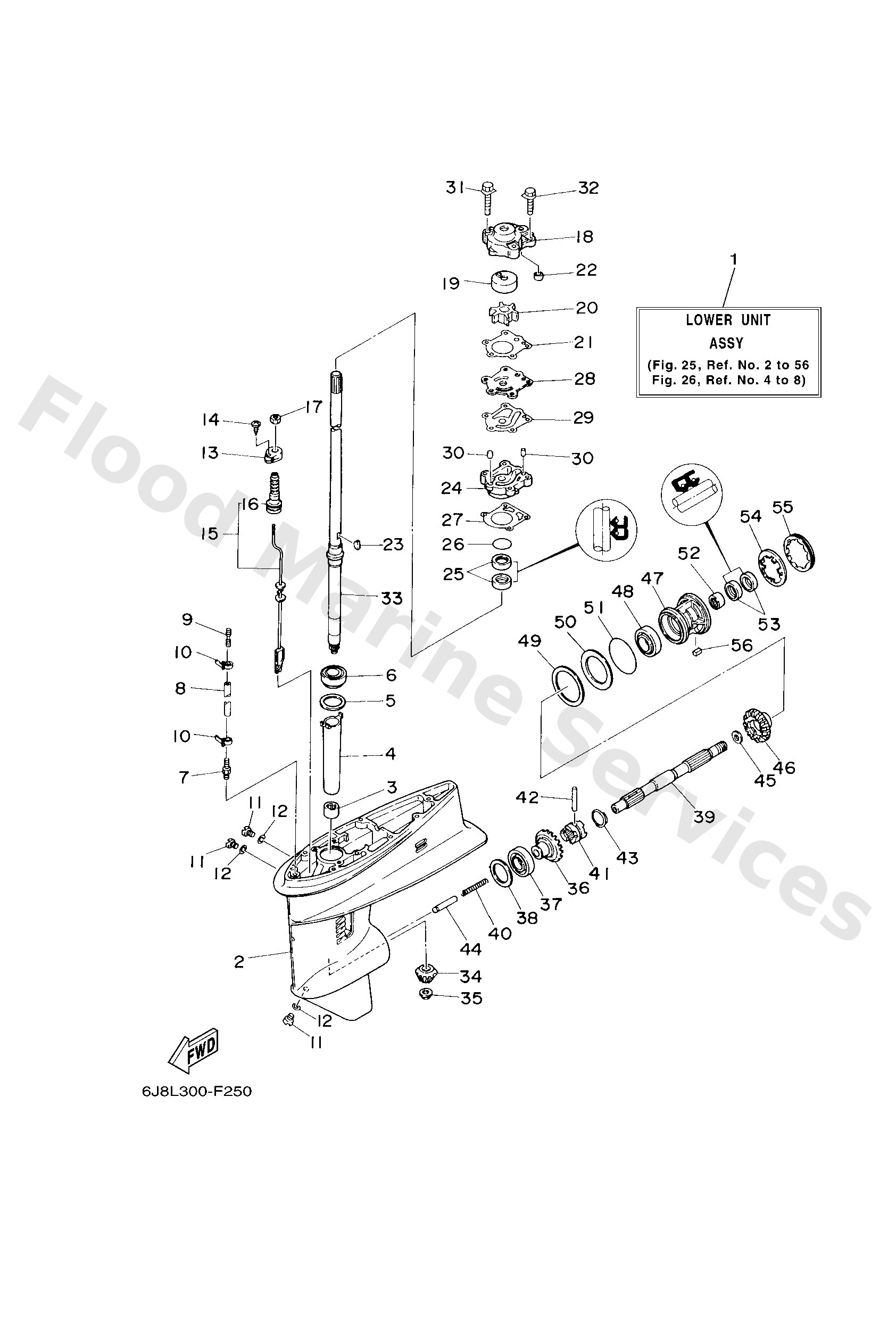

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6J845300144D
L(21.5")
Lower unit assembly
Loading…
↗
1
6J845300044D
S(16.7")
Lower unit assembly
Loading…
↗
2
6J845301024D
Casing, lower
Loading…
↗
3
93315220V7
Bearing, cylindrical(6j8)
Loading…
↗
4
6J84553600
Sleeve, drive shaft
Loading…
↗
5
6634558701
UR
Shim (t:0.10mm)
Loading…
↗
5
6634558710
UR
Shim (t:0.12mm)
Loading…
↗
5
6634558720
UR
Shim (t:0.15mm)
Loading…
↗
5
6634558730
UR
Shim (t:0.18mm)
Loading…
↗
5
6634558740
UR
Shim (t:0,30mm)
Loading…
↗
5
6634558750
UR
Shim (t:0.40mm)
Loading…
↗
5
6634558760
UR
Shim (t:0.50mm)
Loading…
↗
6
9333200001
Brg, tapered roller (409)
Loading…
↗
7
6E54537800
Nipple, hose
Loading…
↗
8
9044507ME9
S(16.7")
Hose (l250)
Loading…
↗
8
9044507M31
L(21.5")
Hose (l200)
Loading…
↗
9
6E58355800
End, nipple
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
9034008002
Plug, straight screw
Loading…
↗
12
9043008020
Gasket
Loading…
↗
13
6824417600
Bracket
Loading…
↗
14
9778050110
Screw, tapping(6u1)
Loading…
↗
15
6J84415010
L(21.5")
Shift cam assembly
Loading…
↗
15
6J84415000
S(16.7")
Shift cam assembly
Loading…
↗
16
6824414700
Boot, shift rod
Loading…
↗
17
9538006700
Nut
Loading…
↗
18
6J84431100
Housing, water pump
Loading…
↗
19
6634432200
Insert, cartridge
Loading…
↗
20
6H44435202
Impeller
Loading…
↗
21
66344315A0
Gasket,water pump 1
Loading…
↗
22
6634436600
Damper, water seal 2
Loading…
↗
23
9028003024
Key, woodruff(662)
Loading…
↗
24
663443410094
Housing, water pump
Loading…
↗
25
9310123070
Oil seal (663)
Loading…
↗
26
9321041042
O-ring (132)
Loading…
↗
27
66344316A0
Gasket,water pump 2
Loading…
↗
28
6634432300
Outer plate, cartridge
Loading…
↗
29
66344324A0
Gasket,cartridge outer plate
Loading…
↗
30
9360408062
Pin,dowel (626)
Loading…
↗
31
9011908M13
Bolt, with washer(6h0)
Loading…
↗
32
9011908M34
Bolt, with washer(6j8)
Loading…
↗
33
6J84550100
S(16.7")
Drive shaft comp.
Loading…
↗
33
6J84550110
L(21.5")
Drive shaft comp.
Loading…
↗
34
6J84555100
Pinion
Loading…
↗
35
9017910M14
Nut(6j8)
Loading…
↗
36
6J84556000
Gear
Loading…
↗
37
93332000V6
Bearing(6j8)
Loading…
↗
38
6J84556740
UR
Shim, thrust (0.3t)
Loading…
↗
38
6J84556760
UR
Shim, thrust (0.5t)
Loading…
↗
38
6J84556750
UR
Shim, thrust (0.4t)
Loading…
↗
38
6J84556730
UR
Shim (t:0.18mm)
Loading…
↗
38
6J84556720
UR
Shim, thrust (0.15t)
Loading…
↗
38
6J84556710
UR
Shim (t:0.12mm)
Loading…
↗
38
6J84556701
UR
Shim (t:0.10mm)
Loading…
↗
39
6J84561100
Shaft, propeller
Loading…
↗
40
9050110065
Spring compression648456360000
Loading…
↗
41
6J84563100
Clutch, dog
Loading…
↗
42
9025005010
Pin straight 648456320000
Loading…
↗
43
6484563300
Ring, cross pin
Loading…
↗
44
6J84563500
Plunger, shift
Loading…
↗
45
9020120417
Washer, plate(663)
Loading…
↗
46
6J84557100
Gear
Loading…
↗
47
689453310194
Housing, bearing
Loading…
↗
48
9330600612
Bearing(2hr)
Loading…
↗
49
6644557750
UR
Shim (t:0.40mm)
Loading…
↗
49
6644557760
UR
Shim (t:0.50mm)
Loading…
↗
49
6644557740
UR
Shim (t:0.30mm)
Loading…
↗
49
6644557730
UR
Shim (t:0.18mm)
Loading…
↗
49
6644557720
UR
Shim (t:0.15mm)
Loading…
↗
49
6644557710
UR
Shim (t:0.12mm)
Loading…
↗
49
6644557701
UR
Shim (t:0.10mm)
Loading…
↗
50
6644557600
Washer, thrust 2
Loading…
↗
51
9321060MA3
O-ring(6j8)
Loading…
↗
52
9331522004
Brg,cyl-cal roller 21g nt
Loading…
↗
53
9310120M07
Oil seal
Loading…
↗
54
9021445M02
Washer, claw(6a9)
Loading…
↗
55
6644538400
Nut
Loading…
↗
56
9028204010
Key, strait(663)
Loading…
↗
