55BED (2005)
LOWER CASING & DRIVE 1

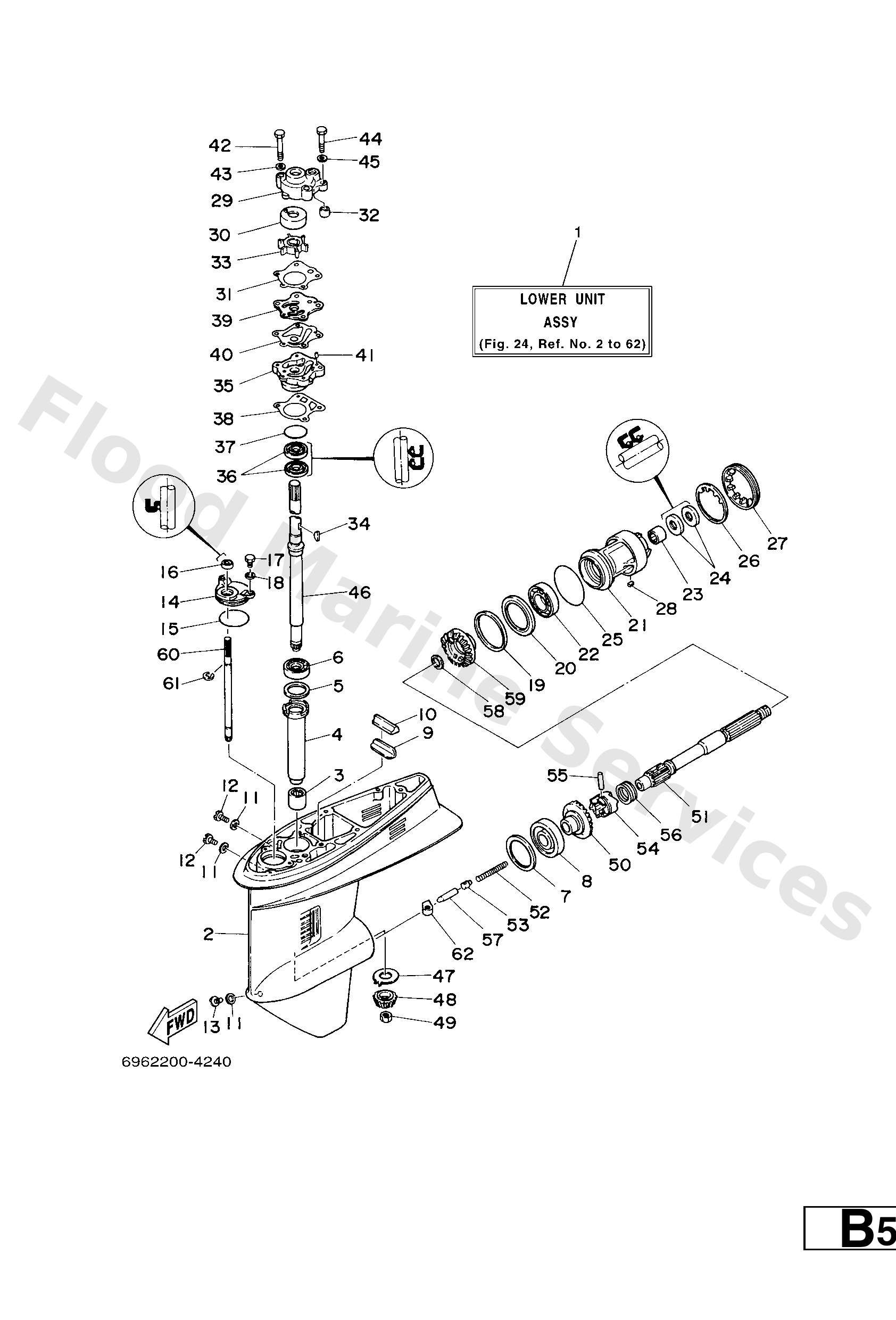

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
69745300124D
L
Lower unit assembly
Loading…
↗
1
69745300014D
S
Lower unit assembly
Loading…
↗
2
69745311024D
Casing, lower
Loading…
↗
3
9331532224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
4
6634553600
Sleeve, drive shaft
Loading…
↗
5
6634558701
UR
Shim (t:0.10mm)
Loading…
↗
5
6634558710
UR
Shim (t:0.12mm)
Loading…
↗
5
6634558720
UR
Shim (t:0.15mm)
Loading…
↗
5
6634558730
UR
Shim (t:0.18mm)
Loading…
↗
5
6634558740
UR
Shim (t:0,30mm)
Loading…
↗
5
6634558750
UR
Shim (t:0.40mm)
Loading…
↗
5
6634558760
UR
Shim (t:0.50mm)
Loading…
↗
6
9333200001
Brg, tapered roller (409)
Loading…
↗
7
6634556701
UR
Shim (t:0.10mm)
Loading…
↗
7
6634556760
UR
Shim (t:0.50mm)
Loading…
↗
7
6634556750
UR
Shim (t:0.40mm)
Loading…
↗
7
6634556740
UR
Shim (t:0.30mm)
Loading…
↗
7
6634556730
UR
Shim (t:0.18mm)
Loading…
↗
7
6634556720
UR
Shim (t:0.15mm)
Loading…
↗
7
6634556710
UR
Shim (t:0.12mm)
Loading…
↗
8
9333200003
Brg,cyl-cal roller 318g ky
Loading…
↗
9
663453760094
Guide, seal damper
Loading…
↗
10
6634537500
Rubber, seal 2
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
9034008002
Plug, straight screw
Loading…
↗
13
6884534110
Plug, drain
Loading…
↗
14
6634532100
Plate
Loading…
↗
15
9321049046
O-ring (620)
Loading…
↗
16
9310609014
Oil seal
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
6634557720
UR
Shim (t:0.15mm)
Loading…
↗
19
6634557760
UR
Shim (t:0.50mm)
Loading…
↗
19
6634557750
UR
Shim (t:0.40mm)
Loading…
↗
19
6634557740
UR
Shim (t:0.30mm)
Loading…
↗
19
6634557730
UR
Shim (t:0.18mm)
Loading…
↗
19
6634557710
UR
Shim (t:0.12mm)
Loading…
↗
19
6634557701
UR
Shim (t:0.10mm)
Loading…
↗
20
6634557600
Washer, thrust 2
Loading…
↗
21
663453310094
Housing, bearing
Loading…
↗
22
9330600702
Brg,r-b 6007 62mm 150g ky
Loading…
↗
23
9331722204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
24
9310122067
Oil seal (22x36x6-663)
Loading…
↗
25
9321066M98
O-ring(6h4)
Loading…
↗
26
9021448M03
Washer, claw(697)
Loading…
↗
27
6974538400
Nut
Loading…
↗
28
9028204010
Key, strait(663)
Loading…
↗
29
6634431102
Housing, water pump
Loading…
↗
30
6634432200
FOR STD
Insert, cartridge
Loading…
↗
30
6634432240
FOR CHROMATE
Insert, cartridge
Loading…
↗
31
66344315A0
Gasket,water pump 1
Loading…
↗
32
6634436600
Damper, water seal 2
Loading…
↗
33
6974435200
Impellar
Loading…
↗
34
9028003M03
Key, woodruff (697)
Loading…
↗
35
663443410094
Housing, water pump
Loading…
↗
36
9310123070
Oil seal (663)
Loading…
↗
37
9321041042
O-ring (132)
Loading…
↗
38
66344316A0
Gasket,water pump 2
Loading…
↗
39
6634432300
FOR STD
Outer plate, cartridge
Loading…
↗
39
6704432300
FOR CHROMATE
Outer plate, cartridge
Loading…
↗
40
66344324A0
Gasket,cartridge outer plate
Loading…
↗
41
9360408062
Pin,dowel (626)
Loading…
↗
42
9709508055
Bolt, hexagon
Loading…
↗
43
9299508600
Washer, plain (663)
Loading…
↗
44
9709508045
Bolt, hexagon
Loading…
↗
46
6634551001
S
Drive shaft assembly
Loading…
↗
46
6634551011
L
Drive shaft assembly
Loading…
↗
47
6634555200
Bearing, plain
Loading…
↗
48
6974555100
Pinion
Loading…
↗
49
9017012138
Nut hexagon(663)
Loading…
↗
50
6974556000
Gear 1 assembly
Loading…
↗
51
6974561100
Shaft, propeller
Loading…
↗
52
9050116233
Spring compression(663)
Loading…
↗
53
6634563400
Slide, shift
Loading…
↗
54
6634563101
Clutch, dog
Loading…
↗
55
9025006023
Pin, strait (663)
Loading…
↗
56
6634563300
Ring, cross pin
Loading…
↗
57
6884563500
Plunger, shift
Loading…
↗
58
9020122429
Washer, plate(663)
Loading…
↗
59
6974557100
Gear 2
Loading…
↗
60
6634414401
Rod, shift 2
Loading…
↗
61
9900108600
Circlip(2r6)
Loading…
↗
62
6634415100
Cam, shift
Loading…
↗
