75AED (2006)
LOWER CASING & DRIVE 1

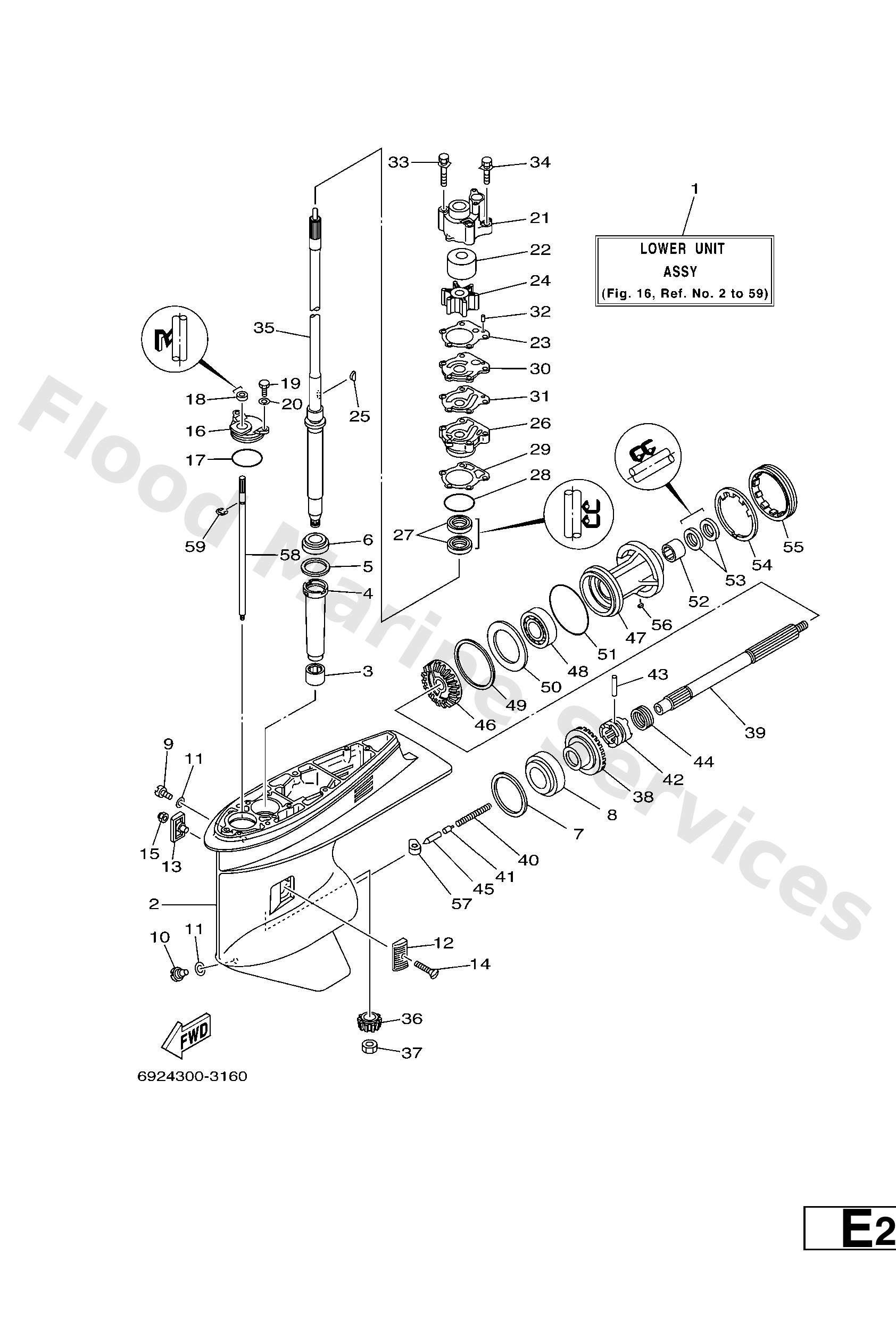

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
69245300144D
L (20.3")
Lower unit assembly
Loading…
↗
2
68845311064D
Lower casing set
Loading…
↗
3
93315325V1
Bearing, needle (688)
Loading…
↗
4
6884553601
Sleeve, drive shaft
Loading…
↗
5
6884558710
UR
Shim (t:0.12mm)
Loading…
↗
5
6884558720
UR
Shim (t:0.15mm)
Loading…
↗
5
6884558730
UR
Shim (t:0.18mm)
Loading…
↗
5
6884558740
UR
Shim (t:0.30mm)
Loading…
↗
5
6884558750
UR
Shim (t:0.40mm)
Loading…
↗
5
6884558760
UR
Shim (t:0.50mm)
Loading…
↗
5
6884558701
UR
Shim (t:0.10mm)
Loading…
↗
6
93332000U3
Brg,tapered roller 50mm (688)
Loading…
↗
7
6884556701
UR
Shim (t:0.10mm)
Loading…
↗
7
6884556760
UR
Shim (t:0.50mm)
Loading…
↗
7
6884556750
UR
Shim (t:0.40mm)
Loading…
↗
7
6884556740
UR
Shim (t:0.30mm)
Loading…
↗
7
6884556730
UR
Shim (t:0.18mm)
Loading…
↗
7
6884556720
UR
Shim (t:0.15mm)
Loading…
↗
7
6884556710
UR
Shim (t:0.12mm)
Loading…
↗
8
93332000W7
Bearing(6b0)
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
6884534110
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
6H14521400
Cover, water inlet
Loading…
↗
13
6H14521500
Cover, water inlet
Loading…
↗
14
9015105M00
Screw, countersunk(692)
Loading…
↗
15
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
16
6884532100
Plate
Loading…
↗
17
9321049046
O-ring (620)
Loading…
↗
18
9310609014
Oil seal
Loading…
↗
19
9709506016
Bolt, hexagon deep recess
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
6884431101
Housing, water pump 1
Loading…
↗
22
6884432200
Insert, cartridge
Loading…
↗
23
68844315A0
Gasket,water pump 1
Loading…
↗
24
6884435203
Impeller
Loading…
↗
25
9028004M04
Key, woodruff (688)
Loading…
↗
26
688443410194
Housing, water pump set
Loading…
↗
27
9310125M03
Oil seal
Loading…
↗
28
9321046044
O-ring
Loading…
↗
29
68844316A0
Gasket,water pump 2
Loading…
↗
30
6884432300
Outer plate, cartridge
Loading…
↗
31
68844324A0
Gasket,cartridge 0uter plate
Loading…
↗
32
9360410M03
Pin, dowel (688)
Loading…
↗
33
9011908M16
Bolt, with washer(6h0)
Loading…
↗
34
9011908M13
Bolt, with washer(6h0)
Loading…
↗
35
6884550111
L (20.3")
Drive shaft comp.
Loading…
↗
36
6884555101
Pinion
Loading…
↗
37
9017016M01
Nut, hexagon (688)
Loading…
↗
38
6884556000
Gear 1 (26t)
Loading…
↗
39
6884561100
Shaft, propeller
Loading…
↗
40
9050116233
Spring compression(663)
Loading…
↗
41
6884563400
Slide, shift
Loading…
↗
42
6884563101
Clutch, dog
Loading…
↗
43
9025007M02
Pin, straight (688)
Loading…
↗
44
6884563300
Ping, cross pin
Loading…
↗
45
6884563500
Plunger, shift
Loading…
↗
46
6884557101
Gear 2 (26t)
Loading…
↗
47
688453310094
Housing, bearing
Loading…
↗
48
93306207U0
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
49
6884557701
UR
Shim (t:0.10mm)
Loading…
↗
49
6884557710
UR
Shim (t:0.12mm)
Loading…
↗
49
6884557720
UR
Shim (t:0.15mm)
Loading…
↗
49
6884557730
UR
Shim (t:0.18mm)
Loading…
↗
49
6884557740
UR
Shim (t:0.30mm)
Loading…
↗
49
6884557750
UR
Shim (t:0.40mm)
Loading…
↗
49
6884557760
UR
Shim (t:0.50mm)
Loading…
↗
50
6884557600
Washer, thrust 2
Loading…
↗
51
9321085M97
O-ring(6h1)
Loading…
↗
52
93317325U0
Brg,needle
Loading…
↗
54
6884538302
Washer, claw
Loading…
↗
55
6884538400
Nut
Loading…
↗
56
9028204010
Key, strait(663)
Loading…
↗
57
6634415100
Cam, shift
Loading…
↗
58
6634414401
Rod, shift 2
Loading…
↗
59
9900108600
Circlip(2r6)
Loading…
↗
