8CMH (2008)
LOWER CASING & DRIVE 1

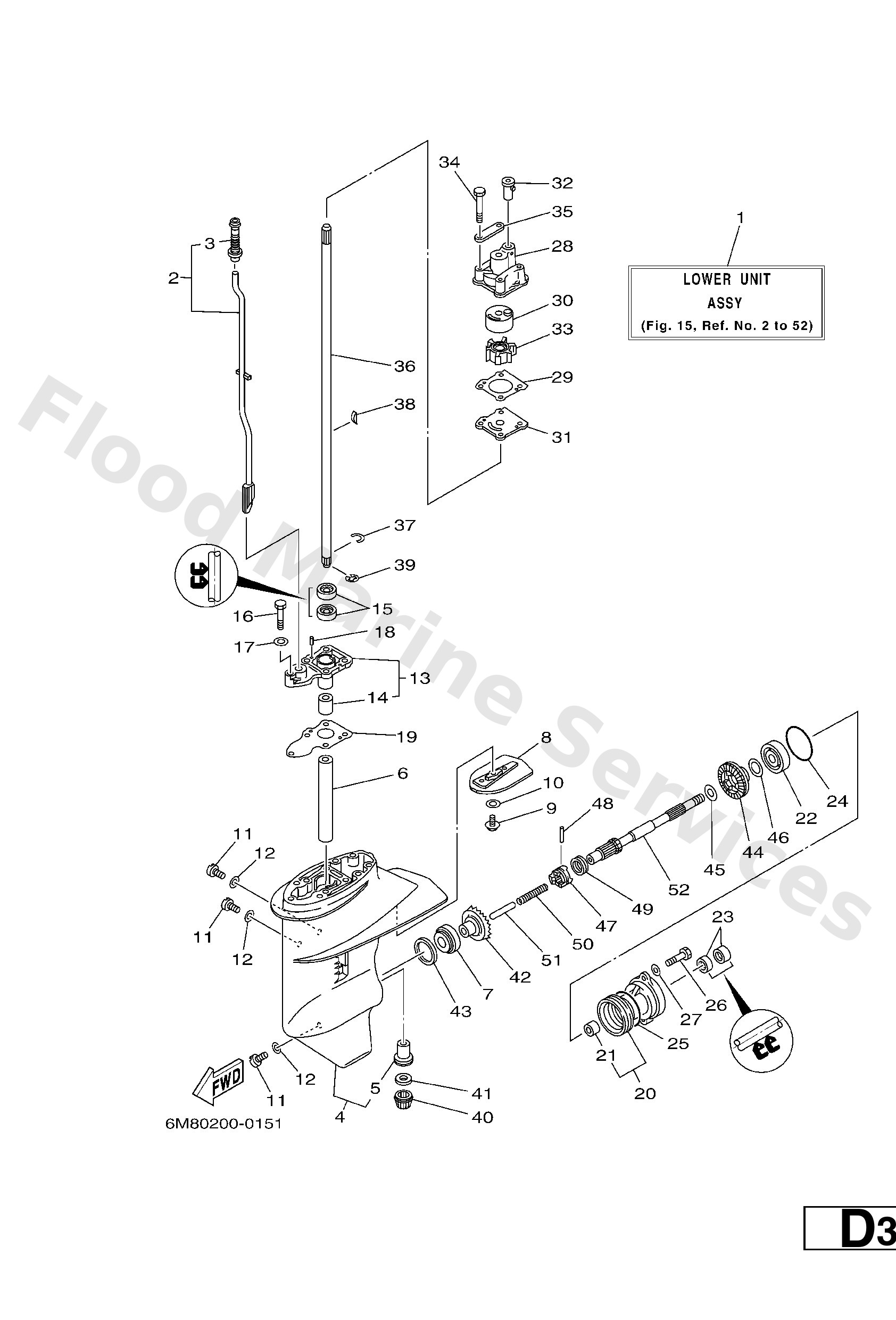

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6M8G5300104D
L(22.2")
Lower unit assembly
Loading…
↗
1
6M8G5300004D
S(17.2")
Lower unit assembly
Loading…
↗
2
6N0G415010
L(22.2")
Shift cam assembly
Loading…
↗
2
6N0G415000
S(17.2")
Shift cam assembly
Loading…
↗
3
6G14414700
Boot, shift rod
Loading…
↗
4
6N0G5311004D
Casing, lower
Loading…
↗
5
6G14531709
Bushing, drive shaft 2
Loading…
↗
6
9038714M49
Collar (6g1)
Loading…
↗
7
93332000U4
Brg,tapered roller 42mm (689)
Loading…
↗
8
6N0G525100
Anode
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299006300
Washer, tooth
Loading…
↗
11
9034008002
Plug, straight screw
Loading…
↗
12
9043008020
Gasket
Loading…
↗
13
6G145331015B
Housing, bearing 1
Loading…
↗
14
6G14531609
Bushing, drive shaft 1
Loading…
↗
15
9310111M23
Oil seal (6g1)
Loading…
↗
16
9709506030
Bolt(jf7)
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
9360408062
Pin,dowel (626)
Loading…
↗
19
6G145315A0
Packing, lower casing
Loading…
↗
20
6N0G5361004D
Cap, lower casing
Loading…
↗
21
6G14536209
Bushing, lower casing cap
Loading…
↗
22
93306004YH
Bearing (7k2)
Loading…
↗
23
9310115074
Oil seal (655)
Loading…
↗
24
9321049046
O-ring (620)
Loading…
↗
25
9321053M08
O-ring(50m)
Loading…
↗
28
6N0G431100
Housing, water pump
Loading…
↗
29
6G144315A0
Gasket,water pump
Loading…
↗
30
6G14432200
Insert, cartridge
Loading…
↗
31
6G14432300
Outer plate, cartridge
Loading…
↗
32
6474436600
Damper, water seal 2
Loading…
↗
33
6G14435200
Impeller
Loading…
↗
34
9709506045
Bolt, hexagon
Loading…
↗
35
6G14432800
Plate
Loading…
↗
36
6N0G551100
S(17.2")
Shaft, drive
Loading…
↗
36
6N0G551110
L(22.2")
Shaft, drive
Loading…
↗
37
9046709M05
Clip (6g1)
Loading…
↗
38
9028003024
Key, woodruff(662)
Loading…
↗
39
9900106600
Circlip(53l)
Loading…
↗
40
6N0G555100
Pinion
Loading…
↗
41
6G14553300
UR
Shim (t:1.9mm)
Loading…
↗
41
6G14553310
UR
Shim (t:2.0mm)
Loading…
↗
41
6G14553320
UR
Shim (t:2.1mm)
Loading…
↗
41
6G14553330
UR
Shim (t:2.2mm)
Loading…
↗
42
6N0G556000
Gear 1 (27t)
Loading…
↗
43
6644558701
UR
Shim (t:0.10mm)
Loading…
↗
43
6644558750
UR
Shim (t:0.40mm)
Loading…
↗
43
6644558740
UR
Shim (t:0.30mm)
Loading…
↗
43
6644558730
UR
Shim (t:0.18mm)
Loading…
↗
43
6644558720
UR
Shim (t:0.15mm)
Loading…
↗
43
6644558710
UR
Shim (t:0.12mm)
Loading…
↗
43
6644558760
UR
Shim (t:0.50mm)
Loading…
↗
44
6N0G557100
Gear 2
Loading…
↗
45
9020115M89
Washer, plate (6g1)
Loading…
↗
46
6474556700
UN
Shim, gear adjust
Loading…
↗
47
6G14563100
Clutch, dog
Loading…
↗
48
6G14563200
Cross, pin
Loading…
↗
49
6544563300
Ring, cross pin
Loading…
↗
50
9050112M38
Spring, compression(6g1)
Loading…
↗
51
6G14563500
Plunger, shift
Loading…
↗
52
6G14561101
Shaft, propellar
Loading…
↗
