9.9FMH (2008)
LOWER CASING & DRIVE 1

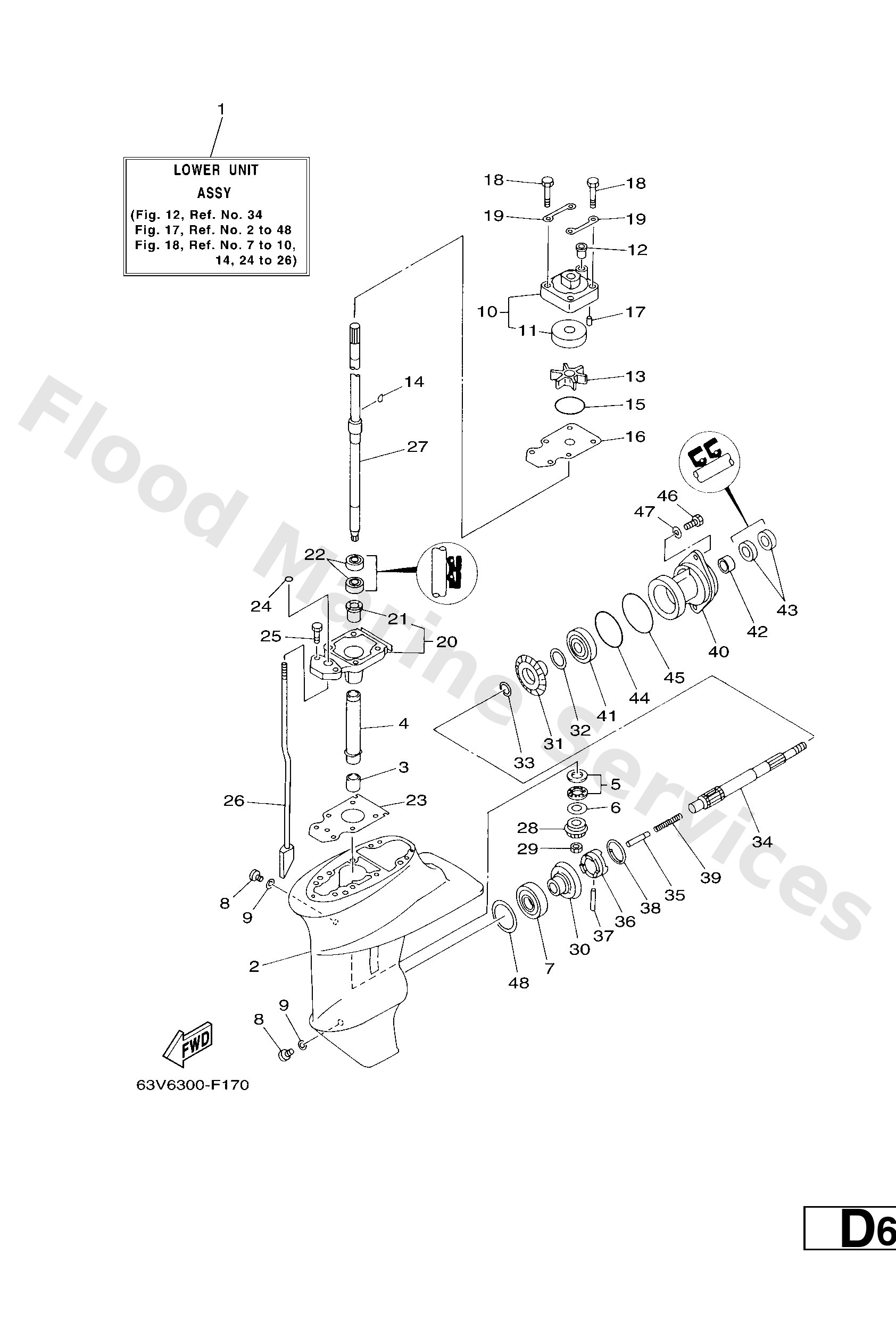

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
63V45300134D
L(22.3")
Lower unit assembly
Loading…
↗
1
63V45300034D
S(17.3")
Lower unit assembly
Loading…
↗
2
63V45311014D
Casing, lower
Loading…
↗
3
93315314V8
Bearing, needle (6e7)
Loading…
↗
4
63V4553600
Sleeve, drive shaft
Loading…
↗
5
9334141414
Bearing
Loading…
↗
6
6E84558710
UR
Shim (t:1.13mm)
Loading…
↗
6
6E84558730
UR
Shim (t:1.20mm)
Loading…
↗
7
9333200005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
8
9034008002
Plug, straight screw
Loading…
↗
9
9043008020
Gasket
Loading…
↗
10
63V4430100
Water pump housing comp.
Loading…
↗
11
63V4432200
Insert, cartridge
Loading…
↗
12
6474436600
Damper, water seal 2
Loading…
↗
13
63V4435201
Impeller
Loading…
↗
14
63V4433800
Key, woodruff
Loading…
↗
15
9321044398
O-ring(55x)
Loading…
↗
16
63V4432300
Outer plate, cartridge
Loading…
↗
17
9360412M07
Pin, dowel (688)
Loading…
↗
18
9708008045
Bolt, hexagon
Loading…
↗
19
63V4432800
Plate
Loading…
↗
20
63V45331005B
Housing, bearing
Loading…
↗
21
6264531609
Bushing, drive shaft 1
Loading…
↗
22
9310120048
Oil seal (20x30x6-648)
Loading…
↗
23
63V45315A0
Packing, lower casing
Loading…
↗
24
9321006ME6
O-ring
Loading…
↗
25
9708008025
Screw, bind(j36)
Loading…
↗
26
63V4415000
S(17.3")
Shift cam assembly
Loading…
↗
26
63V4415010
L(22.3")
Shift cam assembly
Loading…
↗
27
63V4551001
S(17.3")
Drive shaft assembly
Loading…
↗
27
63V4551011
L(22.3")
Drive shaft assembly
Loading…
↗
28
63V4555100
Pinion
Loading…
↗
29
9017908M06
Nut (6e7)
Loading…
↗
30
6E74556001
Gear
Loading…
↗
31
6E74557100
Gear 2
Loading…
↗
32
6264557700
UR
Shim (t:0.10mm)
Loading…
↗
32
6264557710
UR
Shim (t:0.20mm)
Loading…
↗
32
6264557720
UR
Shim (t:0.30mm)
Loading…
↗
32
6264557730
UR
Shim (t:0.40mm)
Loading…
↗
32
6264557740
UR
Shim (t:0.50mm)
Loading…
↗
33
9020117682
Washer, plate (2k7)
Loading…
↗
34
6834561100
Shaft propeller
Loading…
↗
35
6504563500
Plunger, shift
Loading…
↗
36
6824563100
Clutch, dog
Loading…
↗
37
9025005010
Pin straight 648456320000
Loading…
↗
38
6484563300
Ring, cross pin
Loading…
↗
39
9050114M06
Spring, compression
Loading…
↗
40
68345361024D
Cap, lower casing
Loading…
↗
41
9330600501
Bearing(1ff)
Loading…
↗
42
93315317U2
Brg,cyl-cal roller 14g (683)
Loading…
↗
43
9310117054
Oil seal (17x30x6-650)
Loading…
↗
44
9321057M09
O-ring (683)
Loading…
↗
45
9321056M80
O-ring(6j8)
Loading…
↗
46
9709506020
Bolt(7u8)
Loading…
↗
47
9299506600
Washer, plain (646)
Loading…
↗
48
6644556701
UR
Shim (t:0.10mm)
Loading…
↗
48
6644556710
UR
Shim (t:0.12mm)
Loading…
↗
48
6644556720
UR
Shim (t:0.15mm)
Loading…
↗
48
6644556730
UR
Shim (t:0.18mm)
Loading…
↗
48
6644556740
UR
Shim (t:0.30mm)
Loading…
↗
48
6644556750
UR
Shim (t:0.40mm)
Loading…
↗
48
6644556760
UR
Shim (t:0.50mm)
Loading…
↗
