90AETO (2012)
LOWER CASING & DRIVE 1

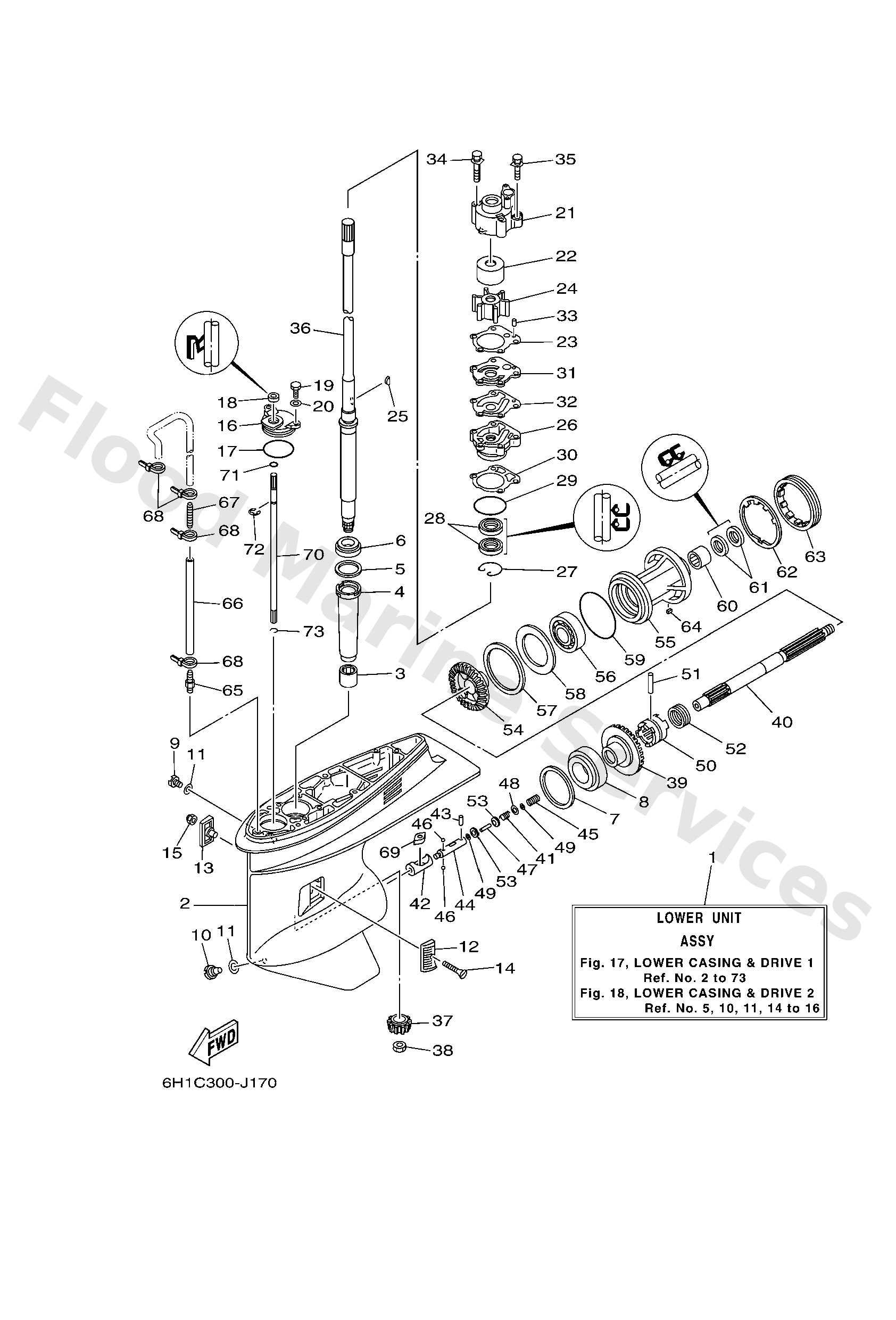

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6H145300168D
L(20.3")
Lower unit assembly
Loading…
↗
2
6H145301038D
Casing, lower
Loading…
↗
3
93315325V1
Bearing, needle (688)
Loading…
↗
4
6884553601
Sleeve, drive shaft
Loading…
↗
5
6884558701
UR
Shim (t:0.10mm)
Loading…
↗
5
6884558710
UR
Shim (t:0.12mm)
Loading…
↗
5
6884558720
UR
Shim (t:0.15mm)
Loading…
↗
5
6884558730
UR
Shim (t:0.18mm)
Loading…
↗
5
6884558740
UR
Shim (t:0.30mm)
Loading…
↗
5
6884558750
UR
Shim (t:0.40mm)
Loading…
↗
5
6884558760
UR
Shim (t:0.50mm)
Loading…
↗
6
93332000U3
Brg,tapered roller 50mm (688)
Loading…
↗
7
6884556701
UR
Shim (t:0.10mm)
Loading…
↗
7
6884556710
UR
Shim (t:0.12mm)
Loading…
↗
7
6884556720
UR
Shim (t:0.15mm)
Loading…
↗
7
6884556730
UR
Shim (t:0.18mm)
Loading…
↗
7
6884556740
UR
Shim (t:0.30mm)
Loading…
↗
7
6884556750
UR
Shim (t:0.40mm)
Loading…
↗
7
6884556760
UR
Shim (t:0.50mm)
Loading…
↗
8
93332000W7
Bearing(6b0)
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
6884534110
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
6H14521400
Cover, water inlet
Loading…
↗
13
6H14521500
Cover, water inlet
Loading…
↗
14
9015105M00
Screw, countersunk(692)
Loading…
↗
15
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
16
6884532100
Plate
Loading…
↗
17
9321049046
O-ring (620)
Loading…
↗
18
9310609014
Oil seal
Loading…
↗
19
9709506016
Bolt, hexagon deep recess
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
6884431101
Housing, water pump 1
Loading…
↗
22
6884432200
Insert, cartridge
Loading…
↗
23
68844315A0
Gasket,water pump 1
Loading…
↗
24
6884435203
Impeller
Loading…
↗
25
9028004M04
Key, woodruff (688)
Loading…
↗
26
6D84434101CA
Housing, water pump
Loading…
↗
27
9345044166
Circlip
Loading…
↗
28
9310125M03
Oil seal
Loading…
↗
29
9321046044
O-ring
Loading…
↗
30
68844316A0
Gasket,water pump 2
Loading…
↗
31
6884432300
Outer plate, cartridge
Loading…
↗
32
68844324A0
Gasket,cartridge 0uter plate
Loading…
↗
33
9360410M03
Pin, dowel (688)
Loading…
↗
34
9011908M16
Bolt, with washer(6h0)
Loading…
↗
35
9011908M13
Bolt, with washer(6h0)
Loading…
↗
36
6H14550111
L(20.3")
Drive shaft comp.
Loading…
↗
37
6884555101
Pinion
Loading…
↗
38
9017016M01
Nut, hexagon (688)
Loading…
↗
39
6884556000
Gear 1 (26t)
Loading…
↗
40
6H14561101
Shaft, propeller
Loading…
↗
41
9050112M48
Spring (6h1)
Loading…
↗
42
6H14564101
Shifter
Loading…
↗
43
9360312M11
Pin, dowel(6h1)
Loading…
↗
44
6H14563402
Slide, shift
Loading…
↗
45
9050116M65
Spring, compression(6h1)
Loading…
↗
46
9350316003
Ball
Loading…
↗
47
6H14566800
Shaft, free 1
Loading…
↗
48
9020103313
Washer, plate 8077743700
Loading…
↗
49
9018302M03
Nut, spring (6h1)
Loading…
↗
50
6H14563101
Clutch, dog
Loading…
↗
51
9025007M02
Pin, straight (688)
Loading…
↗
52
6884563300
Ping, cross pin
Loading…
↗
53
6H14563500
Plunger, shift
Loading…
↗
54
6H14557100
Gear 2
Loading…
↗
55
6884533100CA
Housing, bearing
Loading…
↗
56
93306207U0
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
57
6884557701
UR
Shim (t:0.10mm)
Loading…
↗
57
6884557710
UR
Shim (t:0.12mm)
Loading…
↗
57
6884557720
UR
Shim (t:0.15mm)
Loading…
↗
57
6884557730
UR
Shim (t:0.18mm)
Loading…
↗
57
6884557740
UR
Shim (t:0.30mm)
Loading…
↗
57
6884557750
UR
Shim (t:0.40mm)
Loading…
↗
57
6884557760
UR
Shim (t:0.50mm)
Loading…
↗
58
6884557600
Washer, thrust 2
Loading…
↗
59
9321085M97
O-ring(6h1)
Loading…
↗
60
93317325U0
Brg,needle
Loading…
↗
62
6884538302
Washer, claw
Loading…
↗
63
6884538402
Nut
Loading…
↗
64
9028204010
Key, strait(663)
Loading…
↗
65
6E54537800
Nipple, hose
Loading…
↗
66
9044507ME9
L(20.3")
Hose (l250)
Loading…
↗
67
6E58355810
End, nipple
Loading…
↗
68
9046511M10
Clamp
Loading…
↗
69
6H14415100
Cam, shift
Loading…
↗
70
6H14414400
Rod, shift 2
Loading…
↗
71
9321007003
O-ring (11m)
Loading…
↗
72
9900108600
Circlip(2r6)
Loading…
↗
73
9345007M00
Circlip (6e5)
Loading…
↗
