DEDHD (2013)
LOWER CASING & DRIVE 1

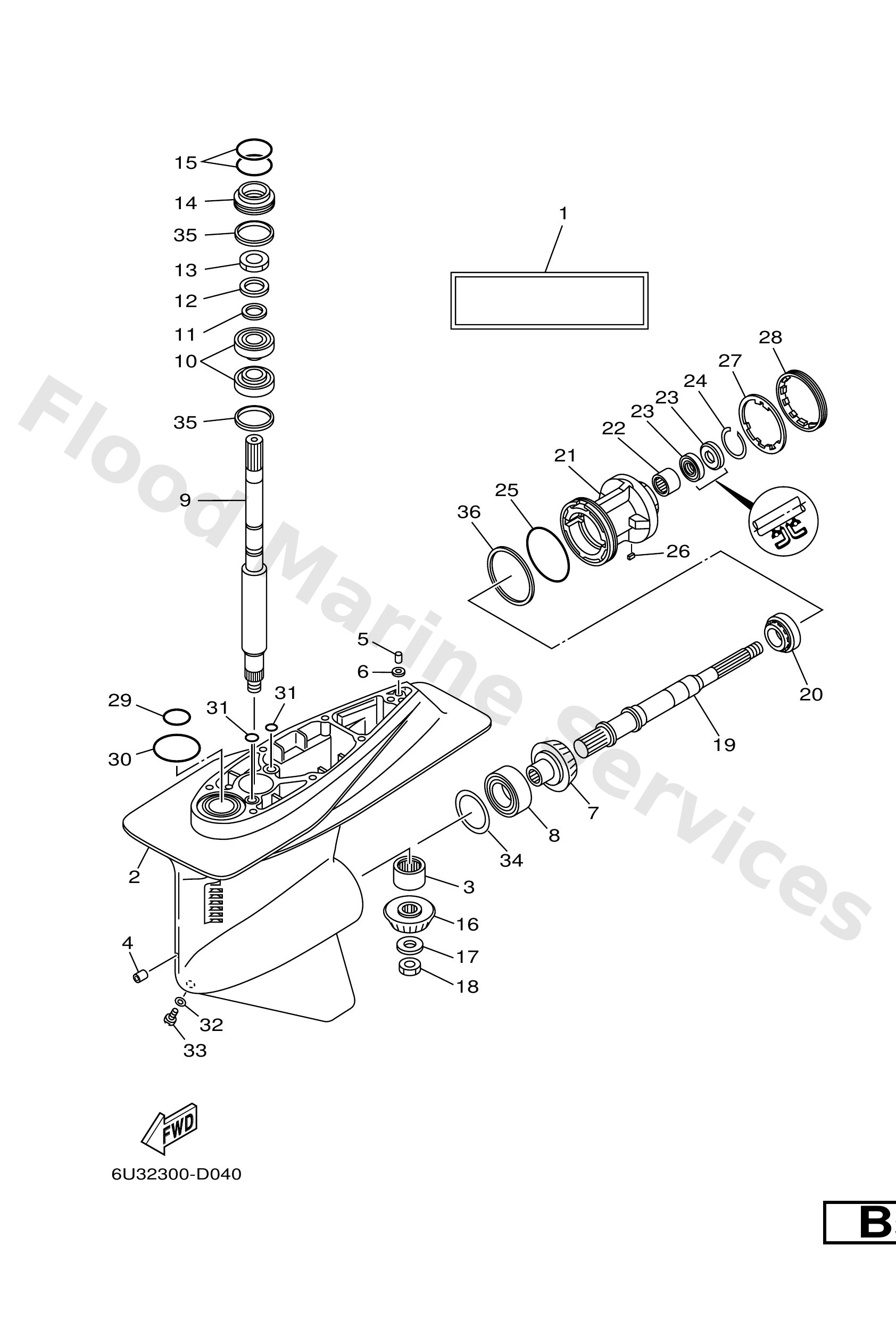

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
3
93319931U0
Bearing
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
9
6U34551100
Shaft, drive
Loading…
↗
10
27
WASHER 1
-
Loading…
↗
12
9021430M06
Washer, claw(6u1)
Loading…
↗
13
9017030M18
Nut(6t5)
Loading…
↗
14
6U1455380094
Spacer 1
Loading…
↗
16
6U34555103
Pinion
Loading…
↗
17
9020121M03
Washer, plate(6u1)
Loading…
↗
19
6U14561101
Shaft, propeller
Loading…
↗
25
9321099103
O-ring (802)
Loading…
↗
26
9028204M00
Key, straight(6g5)
Loading…
↗
29
31
-
Loading…
↗
35
22
BEARING 1
-
Loading…
↗
2
6T54558760
UN
Shim (t:0.50mm)
Loading…
↗
7
6T54558740
UN
Shim (t:0.30mm)
Loading…
↗
8
6T54558750
UN
Shim (t:0.40mm)
Loading…
↗
9
6U14556730
UN
Shim (t:0.18mm)
Loading…
↗
17
6U14557710
UN
Shim (t:0.12mm)
Loading…
↗
18
6U14557720
UN
Shim (t:0.15mm)
Loading…
↗
26
6U14556740
UN
Shim (t:0.30mm)
Loading…
↗
26
6U14556750
UN
Shim (t:0.40mm)
Loading…
↗
26
6U14556760
UN
Shim (t:0.50mm)
Loading…
↗
28
6T54538400
Nut
Loading…
↗
29
6T54558720
UN
Shim (t:0.15mm)
Loading…
↗
29
6T54558730
UN
Shim (t:0.18mm)
Loading…
↗
30
9321076MF8
O-ring(6u1)
Loading…
↗
32
6U14557730
UN
Shim (t:0.18mm)
Loading…
↗
32
6U14557740
UN
Shim (t:0.30mm)
Loading…
↗
32
6U14557750
UN
Shim (t:0.40mm)
Loading…
↗
32
9043008020
Gasket
Loading…
↗
35
6T54558700
UN
Shim (t:0.10mm)
Loading…
↗
35
6U14556720
UN
Shim (t:0.15mm)
Loading…
↗
