E15DMH (2004)
LOWER CASING & DRIVE 1

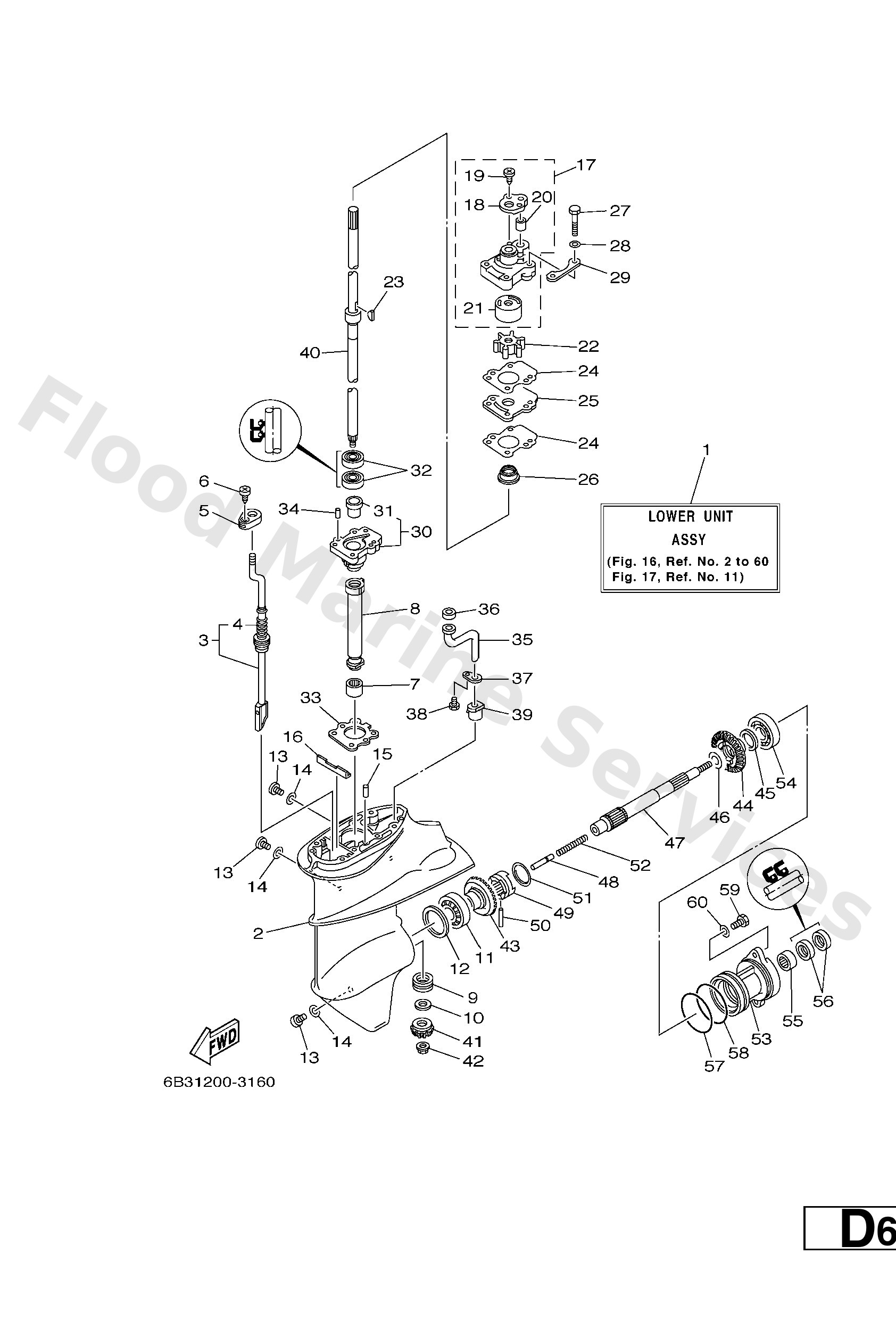

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6B445300104D
L
Lower unit assembly
Loading…
↗
1
6B445300004D
S
Lower unit assembly
Loading…
↗
1
6B445300304D
X
Lower Unit assembly
Loading…
↗
2
6E845311014D
Casing, lower
Loading…
↗
3
6B44415000
S
Shift cam assembly
Loading…
↗
3
6B44415010
L
Shift cam assembly
Loading…
↗
3
6B44415030
X
Shift cam assembly
Loading…
↗
4
6B44414700
Boot, shift rod
Loading…
↗
5
6824417600
Bracket
Loading…
↗
6
9778050110
Screw, tapping(6u1)
Loading…
↗
7
93315314V8
Bearing, needle (6e7)
Loading…
↗
8
6E74553600
Sleeve, drive shaft
Loading…
↗
9
9334141414
Bearing
Loading…
↗
10
6E8455871013
UR
Shim (t:1.13mm)
Loading…
↗
10
6E8455871020
UR
Shim (t:1.20mm)
Loading…
↗
11
9333200005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
12
664455670150
UR
Shim (t:0.50mm)
Loading…
↗
12
664455670140
UR
Shim (t:0.40mm)
Loading…
↗
12
664455670130
UR
Shim (t:0.30mm)
Loading…
↗
12
664455670115
UR
Shim (t:0.15mm)
Loading…
↗
12
664455670112
UR
Shim (t:0.12mm)
Loading…
↗
12
664455670110
UR
Shim (t:0.10mm)
Loading…
↗
12
664455670118
UR
Shim (t:0.18mm)
Loading…
↗
13
9034008002
Plug, straight screw
Loading…
↗
14
9043008020
Gasket
Loading…
↗
15
9360408062
Pin,dowel (626)
Loading…
↗
16
6824537601
Guide, seal damper
Loading…
↗
17
6824430040
Housing water pump assembly
Loading…
↗
18
6824431200
Cover, water pump housing
Loading…
↗
19
9778040112
Screw, pan head tapping
Loading…
↗
20
6824436500
Damper, water seal 1
Loading…
↗
21
6824432241
Insert, cartridge
Loading…
↗
22
6824435203
Impeller
Loading…
↗
23
9028003005
Key, woodruff
Loading…
↗
24
68244315A0
Gasket,water pump 1
Loading…
↗
25
6824432340
Outer plate, cartridge(chrome)
Loading…
↗
26
6824534400
Cover, oil seal
Loading…
↗
27
9709506045
Bolt, hexagon
Loading…
↗
28
9299506600
Washer, plain (646)
Loading…
↗
29
6824432800
Plate
Loading…
↗
30
6E745331005B
Housing, bearing
Loading…
↗
31
6264531609
Bushing, drive shaft 1
Loading…
↗
32
9310120001
Oil seal
Loading…
↗
33
68345315A0
Packing,lower casing
Loading…
↗
34
9360612019
Pin, dowel (614)
Loading…
↗
35
6834436201
Tube, water 2
Loading…
↗
36
6834436501
Damper, water seal 1
Loading…
↗
37
6834437300
Set plate, water tube
Loading…
↗
38
9709506010
Bolt
Loading…
↗
39
6E74436600
Damper, water seal 2
Loading…
↗
40
6B44550100
S
Drive shaft comp.
Loading…
↗
40
6B44550110
L
Drive shaft comp.
Loading…
↗
40
6B44550130
X
Drive shaft comp.
Loading…
↗
41
63V4555100
Pinion
Loading…
↗
42
9017908M06
Nut (6e7)
Loading…
↗
43
6E74556001
Gear
Loading…
↗
44
6E74557100
Gear 2
Loading…
↗
45
626455770001
UR
Shim (t:0.10mm)
Loading…
↗
45
626455770005
UR
Shim (t:0.50mm)
Loading…
↗
45
626455770003
UR
Shim (t:0.30mm)
Loading…
↗
46
9020117682
Washer, plate (2k7)
Loading…
↗
47
6834561100
Shaft propeller
Loading…
↗
48
6504563500
Plunger, shift
Loading…
↗
49
6824563100
Clutch, dog
Loading…
↗
50
9025005010
Pin straight 648456320000
Loading…
↗
51
6484563300
Ring, cross pin
Loading…
↗
52
9050114M06
Spring, compression
Loading…
↗
53
68345361024D
UR
Cap, lower casing
Loading…
↗
53
6B445361004D
UR ANTI-CORROSIVE
Cap, Lower Casing
Loading…
↗
54
9330600501
Bearing(1ff)
Loading…
↗
55
93315317U2
Brg,cyl-cal roller 14g (683)
Loading…
↗
56
9310117001
Oil seal
Loading…
↗
57
9321057M09
O-ring (683)
Loading…
↗
58
9321056M80
O-ring(6j8)
Loading…
↗
59
9709506020
Bolt(7u8)
Loading…
↗
