F100DET (2010)
LOWER CASING & DRIVE 1

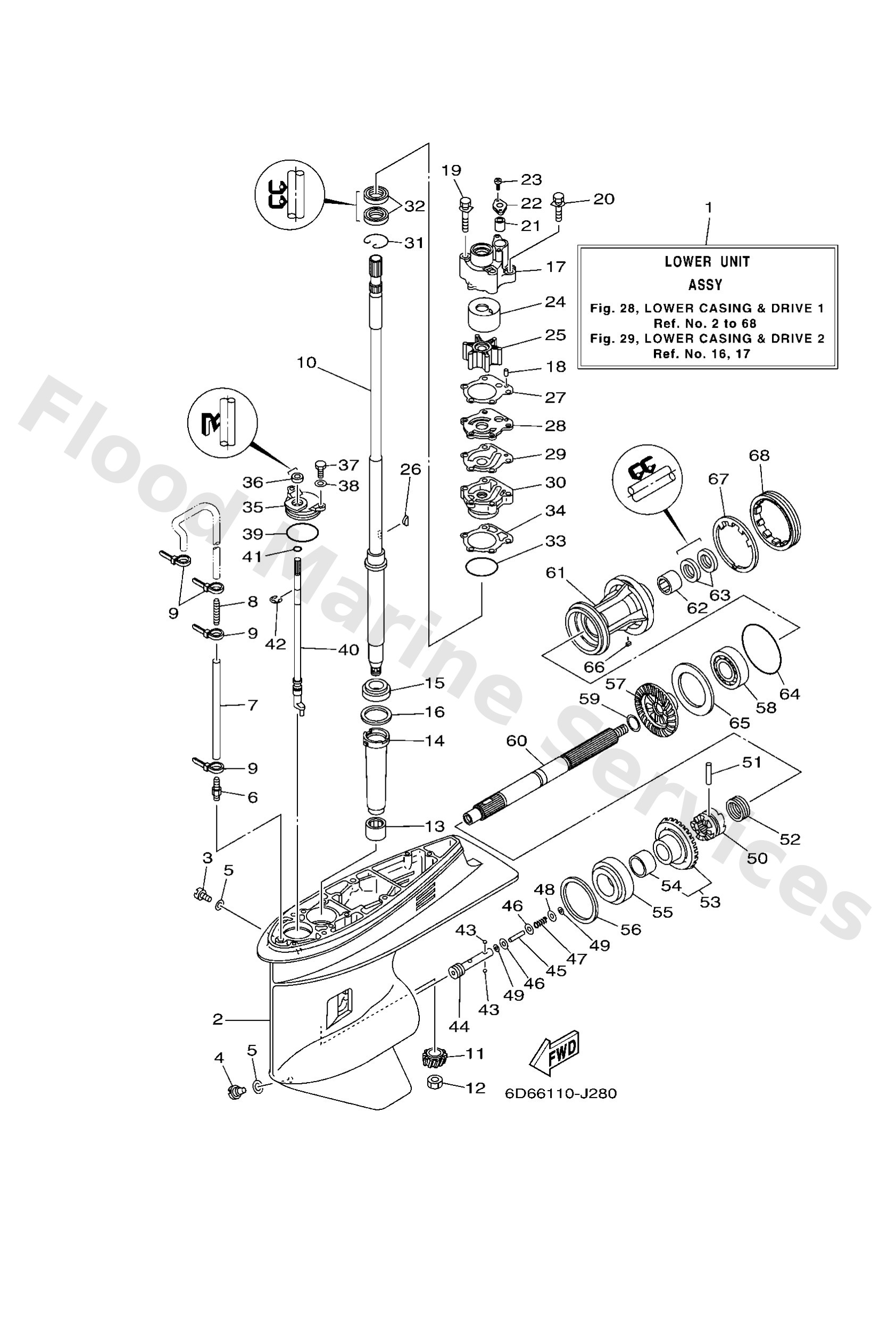

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6D945300128D
L(21.1")
Lower unit assembly
Loading…
↗
2
67F45301008D
Casing, lower
Loading…
↗
3
9034008002
Plug, straight screw
Loading…
↗
4
6884534110
Plug, drain
Loading…
↗
5
9043008020
Gasket
Loading…
↗
6
6E54537800
Nipple, hose
Loading…
↗
7
9044507M31
L(21.1")
Hose (l200)
Loading…
↗
8
6E58355810
End, nipple
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
67F4550110
L(21.1")
Drive shaft comp.
Loading…
↗
11
6D94555100
Pinion (13T)
Loading…
↗
12
9017016M01
Nut, hexagon (688)
Loading…
↗
13
9331552563
Bearing
Loading…
↗
14
6884553601
Sleeve, drive shaft
Loading…
↗
15
93332000U3
Brg,tapered roller 50mm (688)
Loading…
↗
16
6884558760
UR
Shim (t:0.50mm)
Loading…
↗
16
6884558750
UR
Shim (t:0.40mm)
Loading…
↗
16
6884558740
UR
Shim (t:0.30mm)
Loading…
↗
16
6884558720
UR
Shim (t:0.15mm)
Loading…
↗
16
6884558710
UR
Shim (t:0.12mm)
Loading…
↗
16
6884558701
UR
Shim (t:0.10mm)
Loading…
↗
16
6884558730
UR
Shim (t:0.18mm)
Loading…
↗
17
67F4431101
Housing, water pump
Loading…
↗
18
9360410M03
Pin, dowel (688)
Loading…
↗
19
9011908M87
Bolt, with washer
Loading…
↗
20
9011908M13
Bolt, with washer(6h0)
Loading…
↗
21
6634436600
Damper, water seal 2
Loading…
↗
22
9048019M06
Grommet (688)
Loading…
↗
23
9016004006
Screw, round tapping
Loading…
↗
24
67F4432200
Insert, cartridge
Loading…
↗
25
67F4435200
Impeller
Loading…
↗
26
9028004M04
Key, woodruff (688)
Loading…
↗
27
68844315A0
Gasket,water pump 1
Loading…
↗
28
67F4432300
Outer plate, cartridge
Loading…
↗
29
68844324A0
Gasket,cartridge 0uter plate
Loading…
↗
30
6D84434101CA
Housing, water pump
Loading…
↗
31
9345044166
Circlip
Loading…
↗
32
9310125M03
Oil seal
Loading…
↗
33
9321046044
O-ring
Loading…
↗
34
68844316A0
Gasket,water pump 2
Loading…
↗
35
6884532100
Plate
Loading…
↗
36
9310609014
Oil seal
Loading…
↗
37
9709506016
Bolt, hexagon deep recess
Loading…
↗
38
9299506600
Washer, plain (646)
Loading…
↗
39
9321049046
O-ring (620)
Loading…
↗
40
67F4415001
Shift cam assembly
Loading…
↗
41
9321007003
O-ring (11m)
Loading…
↗
42
9900108600
Circlip(2r6)
Loading…
↗
43
9350316003
Ball
Loading…
↗
44
67F4563400
Slide, shift
Loading…
↗
45
6H14566800
Shaft, free 1
Loading…
↗
46
6H14563500
Plunger, shift
Loading…
↗
47
9050112M48
Spring (6h1)
Loading…
↗
48
9020103313
Washer, plate 8077743700
Loading…
↗
49
9018302M03
Nut, spring (6h1)
Loading…
↗
50
6D84563100
Clutch, dog
Loading…
↗
51
9025007M02
Pin, straight (688)
Loading…
↗
52
6884563300
Ping, cross pin
Loading…
↗
53
67F4556000
Gear
Loading…
↗
54
93317322V0
Bearing
Loading…
↗
55
93332000UD
Bearing
Loading…
↗
56
6884556710
UR
Shim (t:0.12mm)
Loading…
↗
56
6884556720
UR
Shim (t:0.15mm)
Loading…
↗
56
6884556730
UR
Shim (t:0.18mm)
Loading…
↗
56
6884556740
UR
Shim (t:0.30mm)
Loading…
↗
56
6884556750
UR
Shim (t:0.40mm)
Loading…
↗
56
6884556760
UR
Shim (t:0.50mm)
Loading…
↗
56
6884556701
UR
Shim (t:0.10mm)
Loading…
↗
57
6D94557100
Gear 2 (30T)
Loading…
↗
58
93306207U0
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
59
9020125M05
Washer, plate
Loading…
↗
60
67F4561101
Shaft, propeller
Loading…
↗
61
67F4533100CA
Housing, bearing
Loading…
↗
62
93317325U0
Brg,needle
Loading…
↗
64
9321086M39
O-ring (6e5)
Loading…
↗
65
67F4557600
Washer, thrust 2
Loading…
↗
66
9028204010
Key, strait(663)
Loading…
↗
67
6884538302
Washer, claw
Loading…
↗
68
6884538400
Nut
Loading…
↗
