F2.5AMH (2006)
LOWER CASING & DRIVE 1

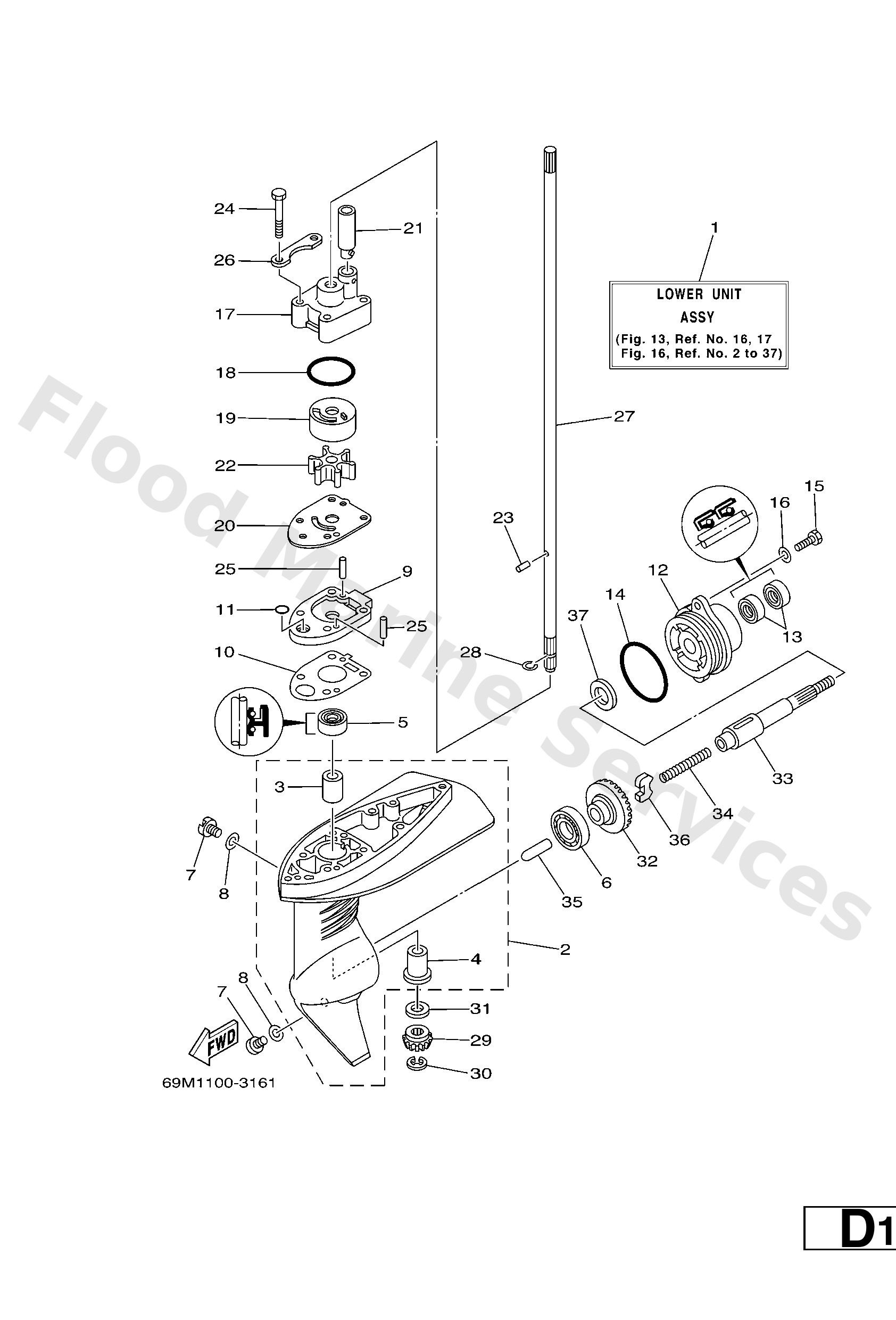

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
69MG5300114D
L (22.0")
Lower Unit assembly
Loading…
↗
1
69MG5300014D
S (17.0")
Lower unit ass.f2.5 court
Loading…
↗
2
69MG5311004D
Casing,lower
Loading…
↗
3
6L54531609
Bushing, d/shaft 1 90380-09m23
Loading…
↗
4
6L54531709
Bushing, d/shaft 2 90381-09m08
Loading…
↗
5
9310309M41
Oil seal
Loading…
↗
6
93316003Y0
Bearing
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
9043008020
Gasket
Loading…
↗
9
69MG53210094
Plate
Loading…
↗
10
69MG5315A0
Packing,lower casing
Loading…
↗
11
9321005001
O-ring
Loading…
↗
12
69MG5361004D
Cap,lower casing
Loading…
↗
13
9310113M12
Oil seal
Loading…
↗
14
9321048214
O-ring
Loading…
↗
15
9709506016
Bolt, hexagon deep recess
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
69MG431100
Housing, water pump
Loading…
↗
18
9321033M85
O-ring(6l5)
Loading…
↗
19
6L54432200
Insert, cartridge
Loading…
↗
20
69MG432300
Outer plate,cartridge
Loading…
↗
21
6E04436600
Damper, water seal 2
Loading…
↗
22
6L54435200
Impeller
Loading…
↗
23
9360407M13
Pin, dowel(6l5)
Loading…
↗
24
9709506040
Bolt (682)
Loading…
↗
25
9360418080
Pin. dowel. (647)
Loading…
↗
26
69MG432800
Plate
Loading…
↗
27
69MG551100
S (17.0")
Shaft, drive
Loading…
↗
27
69MG551110
L (22.0")
Shaft, drive
Loading…
↗
28
9344008819
Circlip
Loading…
↗
29
69MG555100
Pinion
Loading…
↗
30
9900106600
Circlip(53l)
Loading…
↗
31
6L5455330020
UR
Shim (T)2.0Mm)
Loading…
↗
31
6L5455330023
UR
Shim (t:2.3mm)
Loading…
↗
31
6L5455330022
UR
Shim (t:2.2mm)
Loading…
↗
31
6L5455330021
UR
Shim (t:2.1mm)
Loading…
↗
32
69MG556000
Gear
Loading…
↗
33
69MG561100
Shaft, propeller
Loading…
↗
34
9050110064
Spring, compression 6164563600
Loading…
↗
35
69MG563500
Plunger, shift
Loading…
↗
36
6L54563100
Clutch, dog
Loading…
↗
37
9020113198
Washer 6474556600
