F2.5BMH (2021)
LOWER CASING & DRIVE 1

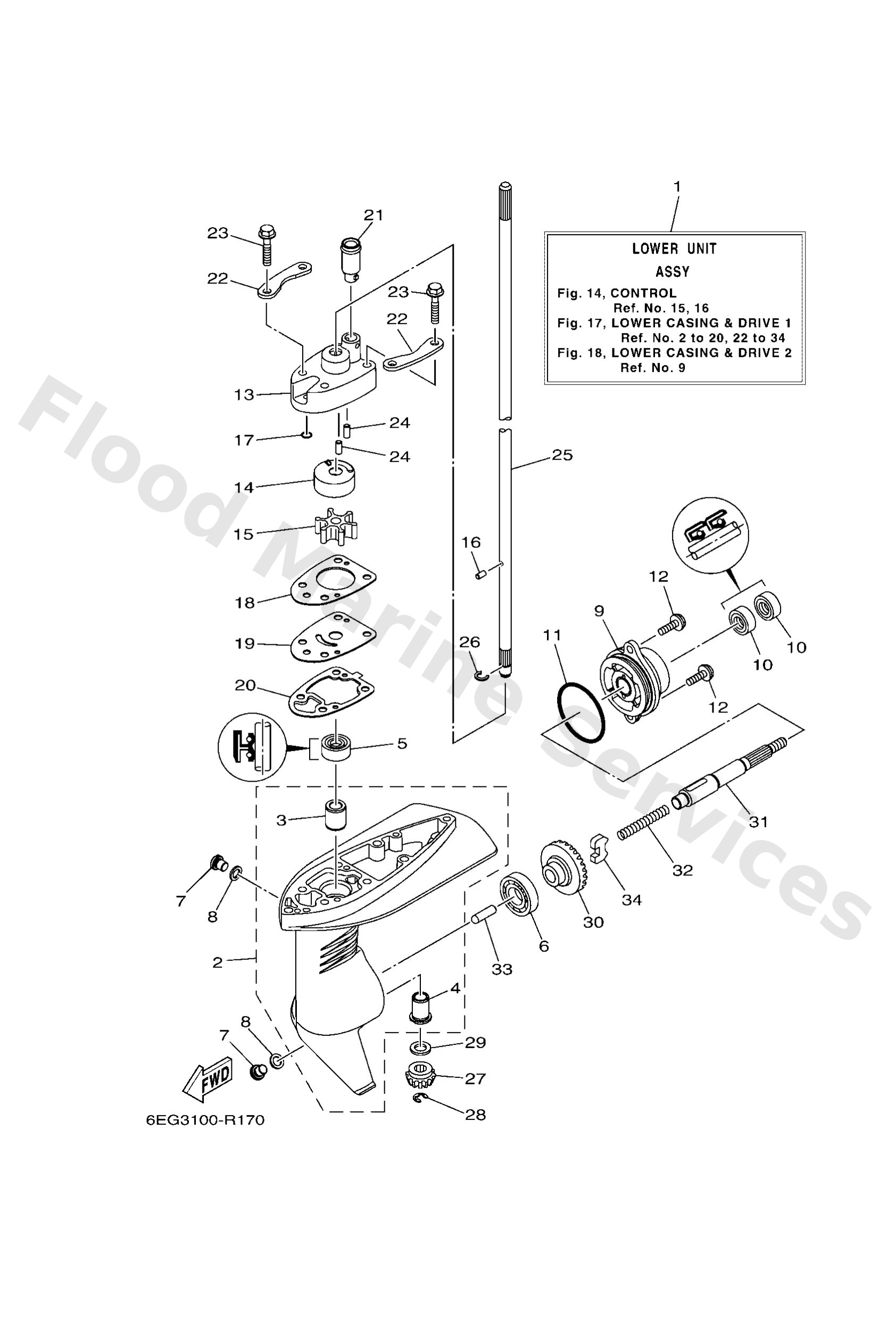

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6EGG5300118D
L(22.0")
Lower unit assembly
Loading…
↗
1
6EGG5300018D
S(17.0")
Lower unit assembly
Loading…
↗
2
6EGG5311008D
Casing, lower
Loading…
↗
3
6L54531609
Bushing, d/shaft 1 90380-09m23
Loading…
↗
4
6L54531709
Bushing, d/shaft 2 90381-09m08
Loading…
↗
5
9310309800
Oil seal
Loading…
↗
6
93316003Y0
Bearing
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
9043008003
Gasket
Loading…
↗
9
6EGG5361008D
Cap, lower casing
Loading…
↗
10
9310113800
Oil seal
Loading…
↗
11
9321048800
O-ring
Loading…
↗
12
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
13
6EGG431100
Housing, water pum
Loading…
↗
14
6EGG432200
Insert, cartridge
Loading…
↗
15
6L54435200
Impeller
Loading…
↗
16
9360407M13
Pin, dowel(6l5)
Loading…
↗
17
9321005001
O-ring
Loading…
↗
18
6EGG431500
Gasket, water pump
Loading…
↗
19
6EGG432300
Outer plate, cartr
Loading…
↗
20
6EGG531500
Packing, lower cas
Loading…
↗
21
6EEG436601
Damper, water seal 2
Loading…
↗
22
6EGG432800
Plate
Loading…
↗
23
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
24
9360412M07
Pin, dowel (688)
Loading…
↗
25
6EGG551100
S(17.0")
Shaft, drive
Loading…
↗
25
6EGG551110
L(22.0")
Shaft, drive
Loading…
↗
26
9046707M12
Clip(6l5)
Loading…
↗
27
6L54555100
Pinion
Loading…
↗
28
9900106600
Circlip(53l)
Loading…
↗
29
6EGG553300
Shim
Loading…
↗
30
6L54556000
Gear
Loading…
↗
31
6EGG561100
Shaft, propeller
Loading…
↗
32
9050110064
Spring, compression 6164563600
Loading…
↗
33
6EGG563500
Plunger, shift
Loading…
↗
34
6L54563100
Clutch, dog
Loading…
↗
