F200AET (2006)
LOWER CASING & DRIVE 1

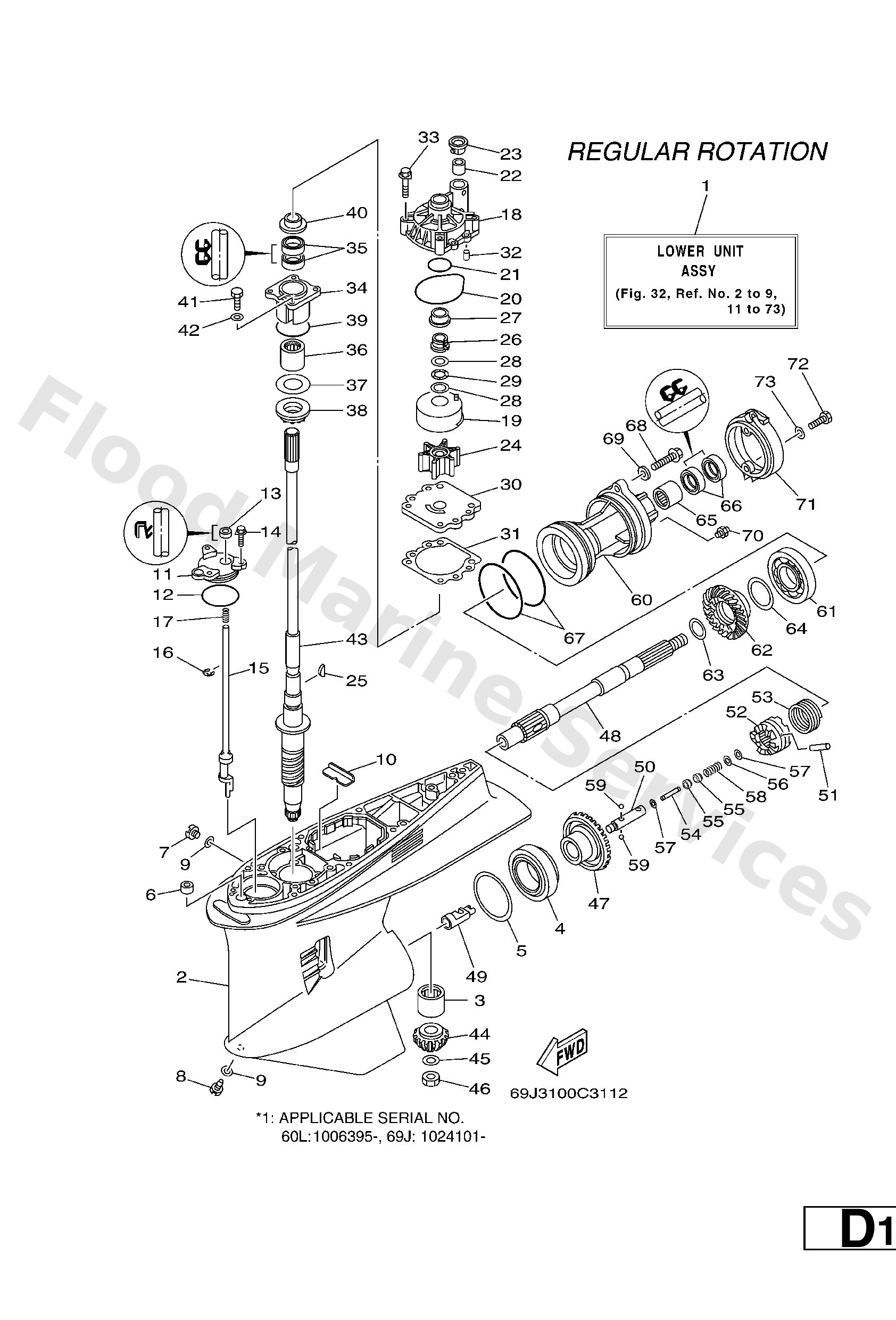

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
69J45300328D
U (30.3"),RH
Lower unit assembly
Loading…
↗
1
69J45300228D
X (25.3"),RH
Lower unit assembly
Loading…
↗
2
61A45301108D
Casing, lower
Loading…
↗
3
93311832v2
Bearing
Loading…
↗
4
93332000W1
Bearing(61a)
Loading…
↗
5
61A4556700
UR
Shim (t:0.10mm)
Loading…
↗
5
61A4556710
UR
Shim (t:0.12mm)
Loading…
↗
5
61A4556720
UR
Shim (t:0.15mm)
Loading…
↗
5
61A4556730
UR
Shim (t:0.18mm)
Loading…
↗
5
61A4556740
UR
Shim (t:0.30mm)
Loading…
↗
5
61A4556750
UR
Shim (t:0.40mm)
Loading…
↗
5
61A4556760
UR
Shim (t:0.50mm)
Loading…
↗
6
6634436600
Damper, water seal 2
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
6884534110
Plug, drain
Loading…
↗
9
9043008020
Gasket
Loading…
↗
10
61A453760094
Guide, seal damper
Loading…
↗
11
61A4532101
Plate
Loading…
↗
12
9321064488
93210-64488
Loading…
↗
13
9310609014
Oil seal
Loading…
↗
14
9011906M10
Bolt, with washer
Loading…
↗
15
69J4415000
Shift cam assembly
Loading…
↗
16
9900108600
Circlip(2r6)
Loading…
↗
17
9050111M10
Spring, compression (663)
Loading…
↗
18
61A4431101
Housing, water pump
Loading…
↗
19
61A4432202
Insert, cartridge
Loading…
↗
20
9321086M38
O-ring (6e5)
Loading…
↗
21
9321037160
O-ring (6g8)
Loading…
↗
22
6E54436500
Damper, water seal 1
Loading…
↗
23
6E54431200
Cover, water pump housing
Loading…
↗
24
6E54435201
Impeller
Loading…
↗
25
9028004M05
Key, woodruff (6e5)
Loading…
↗
26
61A4553800
Spacer, 1
Loading…
↗
27
61A4552700
Collar, drive shaft
Loading…
↗
28
9020122M01
Washer, plate(61a)
Loading…
↗
29
9020622M19
Washer, wave(61a)
Loading…
↗
30
6G54432300
Outer plate, cartridge
Loading…
↗
31
6E544315A0
Gasket,water pump
Loading…
↗
32
9360612019
Pin, dowel (614)
Loading…
↗
33
9011908M14
Bolt, with washer
Loading…
↗
34
61A453310094
Housing, bearing
Loading…
↗
35
9310128M16
Oil seal (6e5)
Loading…
↗
36
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
37
61A4558760
UR
Shim (t:0.50mm)
Loading…
↗
37
61A4558750
UR
Shim (t:0.40mm)
Loading…
↗
37
61A4558740
UR
Shim (t:0.30mm)
Loading…
↗
37
61A4558720
UR
Shim (t:0.15mm)
Loading…
↗
37
61A4558730
UR
Shim (t:0.18mm)
Loading…
↗
37
61A4558700
UR
Shim (t:0.10mm)
Loading…
↗
37
61A4558710
UR
Shim (t:0.12mm)
Loading…
↗
38
93341930U9
Bearing
Loading…
↗
39
9321055M14
O-ring (70e)
Loading…
↗
40
6E54534400
Cover, oil seal
Loading…
↗
41
9709508025
Bolt (62g)
Loading…
↗
42
9299508600
Washer, plain (663)
Loading…
↗
43
69J4550100
X (25.3")
Drive shaft comp.
Loading…
↗
43
61A4550130
U (30.3")
Drive shaft comp.
Loading…
↗
44
69J4555100
UR
Pinion
Loading…
↗
45
9020116M00
Washer, plate(6t5)
Loading…
↗
46
9017016M19
Nut(6t5)
Loading…
↗
47
69J4556000
UR
Gear
Loading…
↗
48
69J4561100
Shaft, propeller
Loading…
↗
49
61A4564102
Shifter
Loading…
↗
50
61A4563401
Slide, shift
Loading…
↗
51
61A4563200
Pin, cross
Loading…
↗
52
69J4563100
Clutch, dog
Loading…
↗
53
61A4563300
Ring, cross pin
Loading…
↗
54
6H14566800
Shaft, free 1
Loading…
↗
55
61A4563500
Plunger, shift
Loading…
↗
56
9020102M00
Washer, plate(61a)
Loading…
↗
57
9018302M03
Nut, spring (6h1)
Loading…
↗
58
9050110M77
Spring, compression(61a)
Loading…
↗
59
9350104011
Ball
Loading…
↗
60
69J453320094
Housing, bearing
Loading…
↗
61
93306210U0
Bearing(61a)
Loading…
↗
62
69J4557100
UR
Gear
Loading…
↗
63
9020131M00
Washer, plate(61a)
Loading…
↗
64
61A4557700
UR
Shim (t:0.10mm)
Loading…
↗
64
61A4557710
UR
Shim (t:0.12mm)
Loading…
↗
64
61A4557720
UR
Shim (t:0.15mm)
Loading…
↗
64
61A4557730
UR
Shim (t:0.18mm)
Loading…
↗
44
6P24555101
UR *1
Pinion
Loading…
↗
47
6P24556000
UR *1
Gear set
Loading…
↗
62
6P24557100
UR *1
Gear
Loading…
↗
64
61A4557760
UR
Shim (t:0.50mm)
Loading…
↗
64
61A4557750
UR
Shim (t:0.40mm)
Loading…
↗
64
61A4557740
UR
Shim (t:0.30mm)
Loading…
↗
65
9331543061
Bearing
Loading…
↗
66
9310130M17
Oil seal (6e5)
Loading…
↗
67
9321104384
O-ring (705)
Loading…
↗
68
9010508036
Bolt, flange
Loading…
↗
69
9020108023
Washer, plate
Loading…
↗
70
9370009M00
Nipple, grease(6t4)
Loading…
↗
71
69J45361008D
Cap, lower casing
Loading…
↗
72
9709508020
Bolt, hexagon
Loading…
↗
