F40JMHD (2025)
LOWER CASING & DRIVE 1

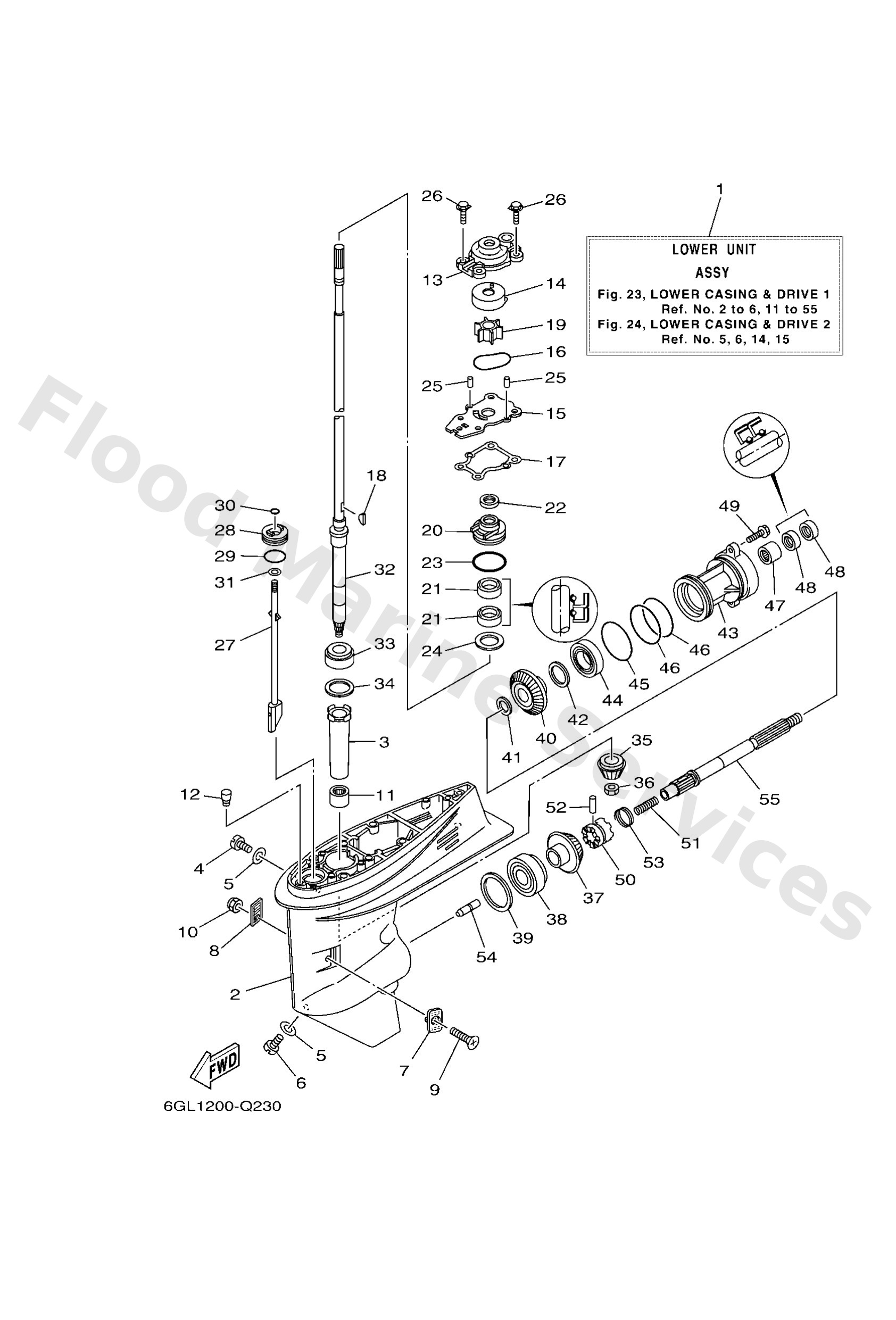

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6GL45300138D
Lower Unit assembly
Loading…
↗
2
67C45301008D
Casing, lower
Loading…
↗
3
6H44553600
Sleeve, drive shaft
Loading…
↗
4
9034008002
Plug, straight screw
Loading…
↗
5
9043008003
Gasket
Loading…
↗
6
6884534110
Plug, drain
Loading…
↗
7
63D4521400
Cover, water inlet
Loading…
↗
8
63D4521500
Cover, water inlet
Loading…
↗
9
9014205M06
Screw, countersunk
Loading…
↗
10
9538005600
Nut, hexagon (663)
Loading…
↗
11
9331532224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
12
6J84537800
Nipple, hose (plug)
Loading…
↗
13
66T4431100
Housing, water pump
Loading…
↗
14
63D4432240
FOR CHROMATE
Insert, cartridge
Loading…
↗
15
66T4432340
FOR CHROMATE
Outer plate, cartridge
Loading…
↗
16
9321059MG7
O-ring
Loading…
↗
17
63D4431600
Gasket, water pump
Loading…
↗
18
9028003M03
Key, woodruff (697)
Loading…
↗
19
6H44435202
Impeller
Loading…
↗
20
6BG4434100
Housing, water pump
Loading…
↗
21
9310122M60
Oil seal
Loading…
↗
22
66T4534402
Cover, oil seal
Loading…
↗
23
9321048001
O-ring
Loading…
↗
24
9020127M00
Washer, plate(62x)
Loading…
↗
25
9360408062
Pin,dowel (626)
Loading…
↗
26
9011908185
Bolt, with washer
Loading…
↗
27
67C4415011
Shift cam assembly
Loading…
↗
28
66T4532100
Plate
Loading…
↗
29
9321033MG4
O-ring
Loading…
↗
30
9321006ME6
O-ring
Loading…
↗
31
9299006600
Washer, plain (646)
Loading…
↗
32
67C4550110
Drive shaft comp.
Loading…
↗
33
9333200001
Brg, tapered roller (409)
Loading…
↗
34
6634558760
UR
Shim (t:0.50mm)
Loading…
↗
34
6634558750
UR
Shim (t:0.40mm)
Loading…
↗
34
6634558740
UR
Shim (t:0,30mm)
Loading…
↗
34
6634558730
UR
Shim (t:0.18mm)
Loading…
↗
34
6634558710
UR
Shim (t:0.12mm)
Loading…
↗
34
6634558701
UR
Shim (t:0.10mm)
Loading…
↗
34
6634558720
UR
Shim (t:0.15mm)
Loading…
↗
35
66T4555100
Pinion
Loading…
↗
36
9017012138
Nut hexagon(663)
Loading…
↗
37
66T4556001
Gear
Loading…
↗
38
9333200003
Brg,cyl-cal roller 318g ky
Loading…
↗
39
6634556730
UR
Shim (t:0.18mm)
Loading…
↗
39
6634556760
UR
Shim (t:0.50mm)
Loading…
↗
39
6634556750
UR
Shim (t:0.40mm)
Loading…
↗
39
6634556740
UR
Shim (t:0.30mm)
Loading…
↗
39
6634556720
UR
Shim (t:0.15mm)
Loading…
↗
39
6634556710
UR
Shim (t:0.12mm)
Loading…
↗
39
6634556701
UR
Shim (t:0.10mm)
Loading…
↗
40
66T4557100
Gear
Loading…
↗
41
9020122429
Washer, plate(663)
Loading…
↗
42
63D4557700
UR
Shim (t:0.10mm)
Loading…
↗
42
63D4557720
UR
Shim (t:0.15mm)
Loading…
↗
42
63D4557760
UR
Shim (t:0.50mm)
Loading…
↗
42
63D4557750
UR
Shim (t:0.40mm)
Loading…
↗
42
63D4557740
UR
Shim (t:0.30mm)
Loading…
↗
42
63D4557730
UR
Shim (t:0.18mm)
Loading…
↗
42
63D4557710
UR
Shim (t:0.12mm)
Loading…
↗
43
63D45361028D
Cap, lower casing
Loading…
↗
44
93306001U1
Bearing(62x)
Loading…
↗
45
9321069MG6
O-ring
Loading…
↗
46
9321074MG5
O-ring (xea)
Loading…
↗
47
9331722204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
48
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
49
9010508M61
Bolt, washer based(62x)
Loading…
↗
50
66T4563100
Clutch, dog
Loading…
↗
51
9050118M01
Spring, compression
Loading…
↗
52
9025006023
Pin, strait (663)
Loading…
↗
53
67C4563301
Ring, cross pin
Loading…
↗
54
66T4563500
Plunger, shift
Loading…
↗
55
66T4561100
Shaft, propeller
Loading…
↗
