F50HED (2016)
LOWER CASING & DRIVE 1

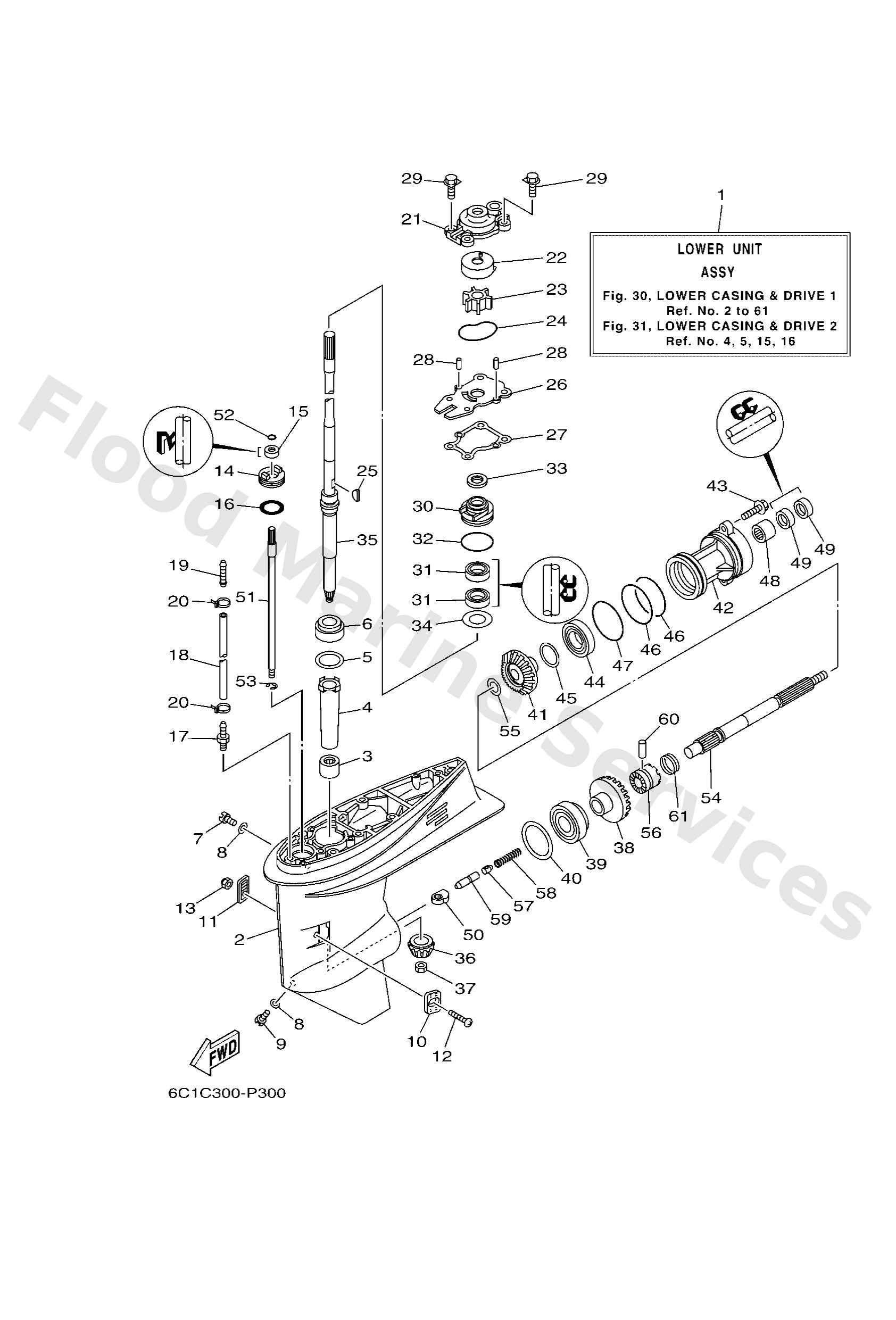

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
69W45300018D
L(20.7")
Lower unit assembly
Loading…
↗
2
69W45301008D
Casing, lower
Loading…
↗
3
9331532224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
4
6H44553600
Sleeve, drive shaft
Loading…
↗
5
6634558710
UR
Shim (t:0.12mm)
Loading…
↗
5
6634558720
UR
Shim (t:0.15mm)
Loading…
↗
5
6634558730
UR
Shim (t:0.18mm)
Loading…
↗
5
6634558740
UR
Shim (t:0,30mm)
Loading…
↗
5
6634558750
UR
Shim (t:0.40mm)
Loading…
↗
5
6634558760
UR
Shim (t:0.50mm)
Loading…
↗
5
6634558701
UR
Shim (t:0.10mm)
Loading…
↗
6
9333200001
Brg, tapered roller (409)
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
9043008003
Gasket
Loading…
↗
9
6884534110
Plug, drain
Loading…
↗
10
63D4521400
Cover, water inlet
Loading…
↗
11
63D4521500
Cover, water inlet
Loading…
↗
12
9015205010
Screw, countersunk
Loading…
↗
13
9538005600
Nut, hexagon (663)
Loading…
↗
14
63D4532100
Plate
Loading…
↗
15
9310609014
Oil seal
Loading…
↗
16
9321033MG4
O-ring
Loading…
↗
17
6E54537800
Nipple, hose
Loading…
↗
18
9044507ME8
L(20.7")
Hose (l250)
Loading…
↗
19
6E58355810
End, nipple
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
21
63D4431100
Housing, water pump
Loading…
↗
22
63D4432200
Insert, cartridge
Loading…
↗
23
6H34435200
Impellar
Loading…
↗
24
9321059MG7
O-ring
Loading…
↗
25
9028003024
Key, woodruff(662)
Loading…
↗
26
63D4432300
Outer plate, cartridge
Loading…
↗
27
63D4431600
Gasket, water pump
Loading…
↗
28
9360408062
Pin,dowel (626)
Loading…
↗
29
9011908M15
Bolt, with washer(62w)
Loading…
↗
30
6BG4434100
Housing, water pump
Loading…
↗
31
9310125M57
Oil seal
Loading…
↗
32
9321048001
O-ring
Loading…
↗
33
63D4534400
Cover, oil seal
Loading…
↗
34
9020127M00
Washer, plate(62x)
Loading…
↗
35
69W4550100
L(20.7")
Drive shaft comp.
Loading…
↗
36
69W4555100
Pinion
Loading…
↗
37
9017012138
Nut hexagon(663)
Loading…
↗
38
69W4556000
Gear
Loading…
↗
39
9333200092
Bearing
Loading…
↗
40
6634556760
UR
Shim (t:0.50mm)
Loading…
↗
40
6634556750
UR
Shim (t:0.40mm)
Loading…
↗
40
6634556740
UR
Shim (t:0.30mm)
Loading…
↗
40
6634556730
UR
Shim (t:0.18mm)
Loading…
↗
40
6634556720
UR
Shim (t:0.15mm)
Loading…
↗
40
6634556710
UR
Shim (t:0.12mm)
Loading…
↗
40
6634556701
UR
Shim (t:0.10mm)
Loading…
↗
41
62Y4557100
Gear
Loading…
↗
42
63D45361028D
Cap, lower casing
Loading…
↗
43
9010508M61
Bolt, washer based(62x)
Loading…
↗
44
93306001U1
Bearing(62x)
Loading…
↗
45
63D4557760
UR
Shim (t:0.50mm)
Loading…
↗
45
63D4557750
UR
Shim (t:0.40mm)
Loading…
↗
45
63D4557740
UR
Shim (t:0.30mm)
Loading…
↗
45
63D4557730
UR
Shim (t:0.18mm)
Loading…
↗
45
63D4557710
UR
Shim (t:0.12mm)
Loading…
↗
45
63D4557700
UR
Shim (t:0.10mm)
Loading…
↗
45
63D4557720
UR
Shim (t:0.15mm)
Loading…
↗
46
9321074MG5
O-ring (xea)
Loading…
↗
47
9321069MG6
O-ring
Loading…
↗
48
9331722204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
49
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
50
62Y4415100
Cam, shift
Loading…
↗
51
63D4414400
Rod, shift
Loading…
↗
52
9321007003
O-ring (11m)
Loading…
↗
53
9900108600
Circlip(2r6)
Loading…
↗
54
63D4561100
Shaft, propeller
Loading…
↗
55
9020122008
Washer, plate
Loading…
↗
56
62Y4563100
Clutch, dog
Loading…
↗
57
6634563400
Slide, shift
Loading…
↗
58
9050118001
Spring, compression
Loading…
↗
59
63D4563500
Plunger, shift
Loading…
↗
60
9025006023
Pin, strait (663)
Loading…
↗
61
67C4563300
Ring, cross pin
Loading…
↗
