F9.9FMH (2009)
LOWER CASING & DRIVE 1

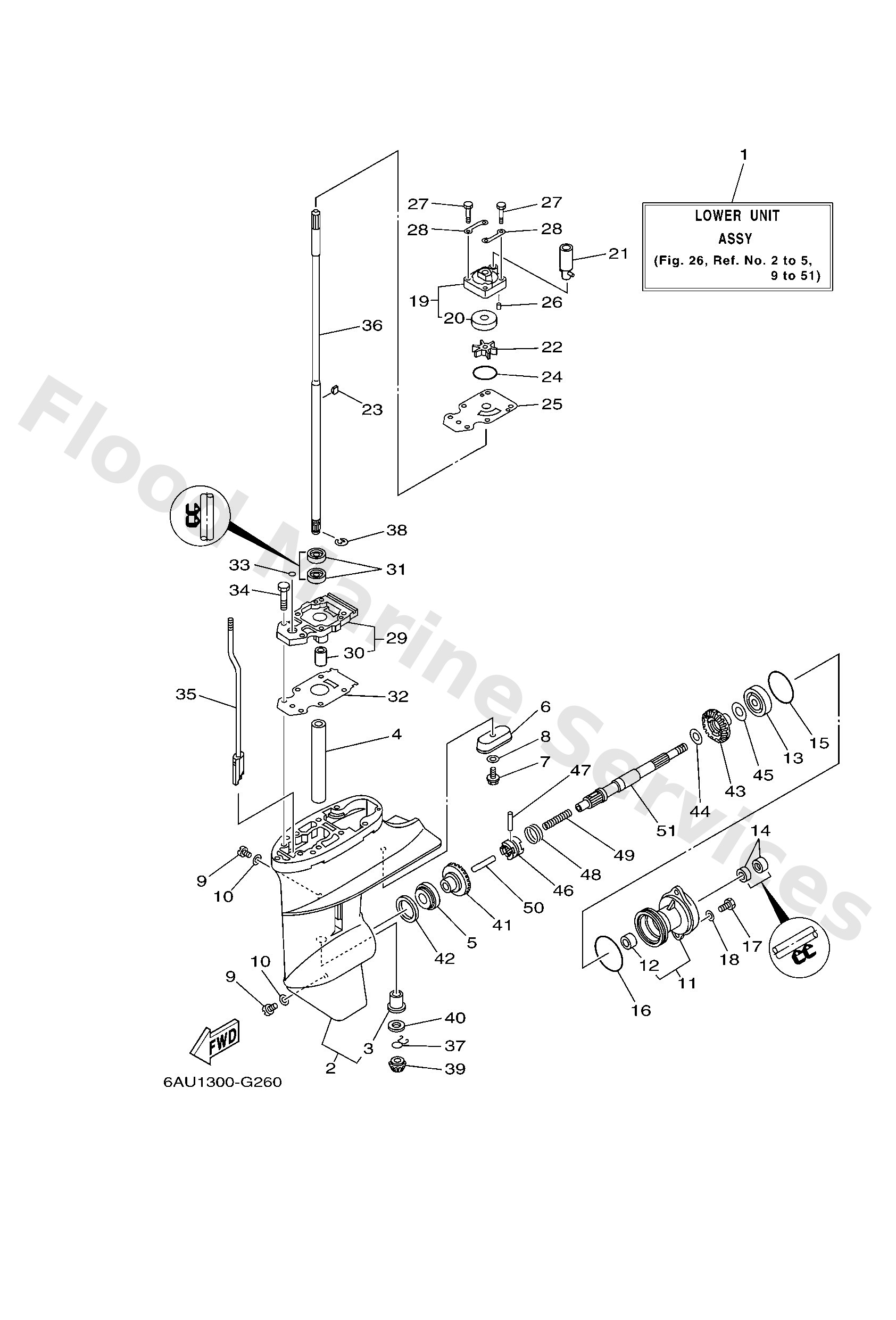

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6AU45300104D
L(21.9")
Lower unit assembly
Loading…
↗
1
6AU45300004D
S(16.9")
Lower unit assembly
Loading…
↗
2
6AU45311004D
Casing, lower
Loading…
↗
3
6G14531709
Bushing, drive shaft 2
Loading…
↗
4
9038714M49
Collar (6g1)
Loading…
↗
5
93306004U0
Bearing (7k2)
Loading…
↗
6
68T4525100
Anode
Loading…
↗
7
9589506016
Bolt, flange deep recess
Loading…
↗
8
9299006300
Washer, tooth
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
9043008020
Gasket
Loading…
↗
11
6G145361014D
Cap, lower casing
Loading…
↗
12
6G14536209
Bushing, lower casing cap
Loading…
↗
14
9310115074
Oil seal (655)
Loading…
↗
15
9321049046
O-ring (620)
Loading…
↗
16
9321053M08
O-ring(50m)
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
63V4430100
Water pump housing comp.
Loading…
↗
20
63V4432200
Insert, cartridge
Loading…
↗
21
68T4436600
Damper, water seal 2
Loading…
↗
22
68T4435200
Impeller
Loading…
↗
23
6644433800
Key, woodruff
Loading…
↗
24
9321044398
O-ring(55x)
Loading…
↗
25
68T4432300
Outer plate, cartridge
Loading…
↗
26
9360412M07
Pin, dowel (688)
Loading…
↗
27
9708008045
Bolt, hexagon
Loading…
↗
28
63V4432800
Plate
Loading…
↗
29
68T45331005B
Housing, bearing
Loading…
↗
30
6G14531609
Bushing, drive shaft 1
Loading…
↗
31
9310111M23
Oil seal (6g1)
Loading…
↗
32
68T45315A0
Packing, lower casing
Loading…
↗
33
9321006ME6
O-ring
Loading…
↗
34
9708008025
Screw, bind(j36)
Loading…
↗
35
68T4415000
Shift cam assembly
Loading…
↗
36
6AU4551100
S(16.9")
Shaft, drive
Loading…
↗
36
6AU4551110
L(21.9")
Shaft, drive
Loading…
↗
37
9046709M05
Clip (6g1)
Loading…
↗
38
9900107600
Circlip(6l2)
Loading…
↗
39
68T4555100
Pinion
Loading…
↗
40
6G14553300
UR
Shim (t:1.9mm)
Loading…
↗
40
6G14553330
UR
Shim (t:2.2mm)
Loading…
↗
40
6G14553320
UR
Shim (t:2.1mm)
Loading…
↗
40
6G14553310
UR
Shim (t:2.0mm)
Loading…
↗
41
68T4556000
Gear
Loading…
↗
42
6644558760
UR
Shim (t:0.50mm)
Loading…
↗
42
6644558710
UR
Shim (t:0.12mm)
Loading…
↗
42
6644558750
UR
Shim (t:0.40mm)
Loading…
↗
42
6644558740
UR
Shim (t:0.30mm)
Loading…
↗
42
6644558730
UR
Shim (t:0.18mm)
Loading…
↗
42
6644558720
UR
Shim (t:0.15mm)
Loading…
↗
42
6644558701
UR
Shim (t:0.10mm)
Loading…
↗
43
68T4557100
Gear
Loading…
↗
44
9020115M89
Washer, plate (6g1)
Loading…
↗
45
6474556700
UN
Shim, gear adjust
Loading…
↗
46
68T4563100
Clutch, dog
Loading…
↗
47
6G14563200
Cross, pin
Loading…
↗
48
6544563300
Ring, cross pin
Loading…
↗
49
90501140A1
Spring, compression
Loading…
↗
50
6G14563500
Plunger, shift
Loading…
↗
51
68T4561100
Shaft, propeller
Loading…
↗
