FL250AET (2007)
LOWER CASING & DRIVE 1

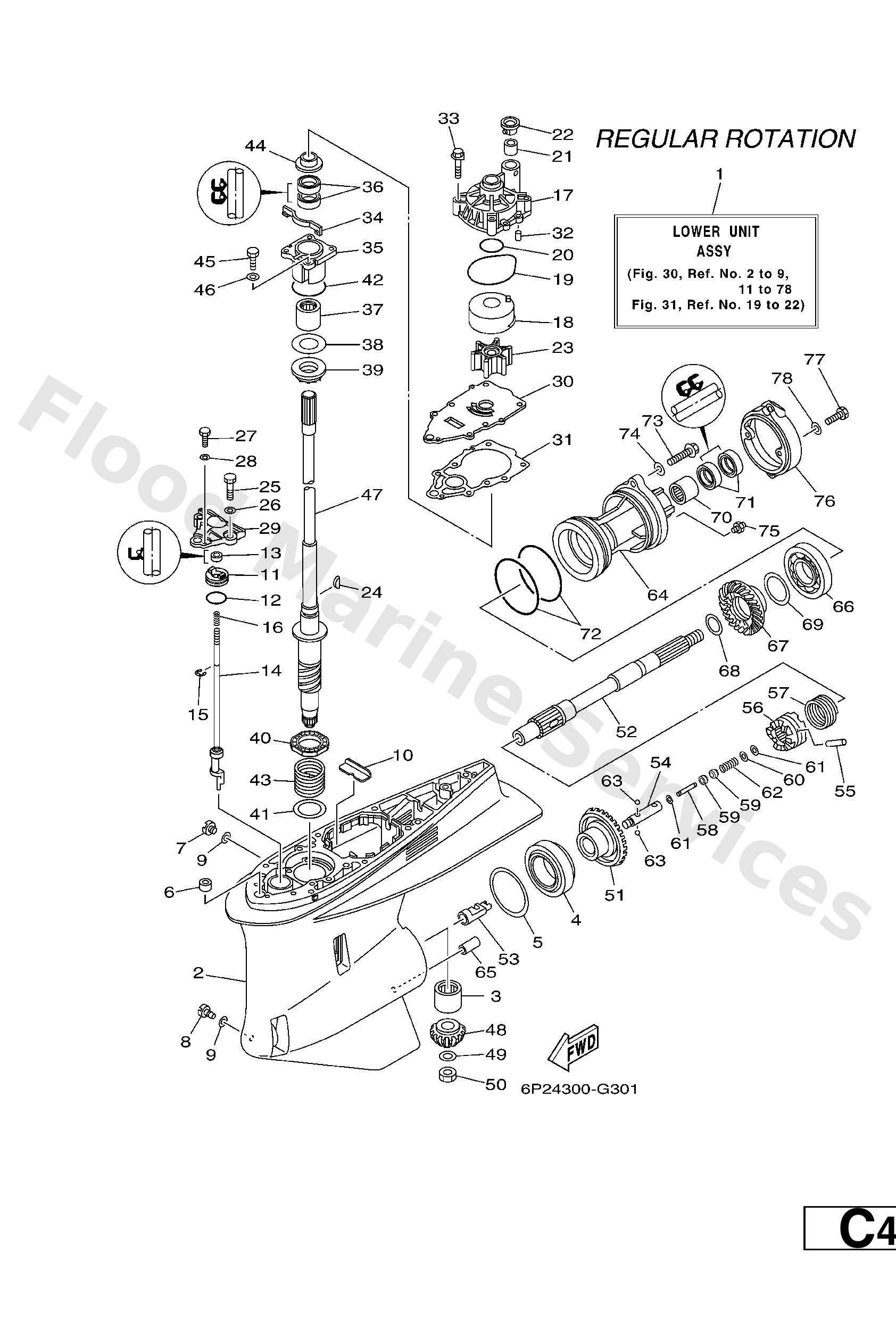

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6P245300408D
X(25.3"),RH
Lower unit assembly
Loading…
↗
1
6P245300508D
U(30.3"),RH
Lower unit assembly
Loading…
↗
2
6P245301108D
Casing, lower
Loading…
↗
3
9331183280
Ball bearing
Loading…
↗
4
93332000W1
Bearing
Loading…
↗
5
61A4556700
UR
Shim (t:0.10mm)
Loading…
↗
5
61A4556710
UR
Shim (t:0.12mm)
Loading…
↗
5
61A4556720
UR
Shim (t:0.15mm)
Loading…
↗
5
61A4556730
UR
Shim (t:0.18mm)
Loading…
↗
5
61A4556740
UR
Shim (t:0.30mm)
Loading…
↗
5
61A4556750
UR
Shim (t:0.40mm)
Loading…
↗
5
61A4556760
UR
Shim (t:0.50mm)
Loading…
↗
6
6634436600
Damper, Water Seal 2
Loading…
↗
7
9034008002
Plug, Straight Screw
Loading…
↗
8
6884534110
Plug, Drain
Loading…
↗
9
9043008020
Gasket
Loading…
↗
10
61A453760094
31
Loading…
↗
11
65N4532100
Plate
Loading…
↗
12
9321033M49
O-ring(6l5)
Loading…
↗
13
9310609014
28
Loading…
↗
14
6P24415000
Shift cam assembly
Loading…
↗
15
9900108600
Circlip
Loading…
↗
16
9050111M10
Spring, Compression
Loading…
↗
17
61A4431101
Housing, Water Pump
Loading…
↗
18
61A4432202
Insert, Cartridge
Loading…
↗
19
9321086M38
O-Ring
Loading…
↗
20
9321037160
O-Ring
Loading…
↗
21
6E54436500
Damper, Water Seal 1
Loading…
↗
22
6E54431200
Cover, Water Pump Housing
Loading…
↗
23
6E54435201
Impeller
Loading…
↗
24
9028004M05
29
Loading…
↗
25
9709508030
Bolt
Loading…
↗
26
9299508600
17
Loading…
↗
27
9709506016
Bolt
Loading…
↗
28
9299506600
10
Loading…
↗
29
60X4431200
Cover, water pump housing
Loading…
↗
30
6P24432300
Outer plate, cartridge
Loading…
↗
31
60X44315A0
Gasket, water pump
Loading…
↗
32
9360612019
Pin, Dowel
Loading…
↗
33
9011908M14
Bolt, With Washer
Loading…
↗
34
6P24572300
Plate, seal
Loading…
↗
35
6P2453310094
Housing, bearing
Loading…
↗
36
9310128M16
Oil Seal
Loading…
↗
37
93317330U2
Bearing
Loading…
↗
38
61A4558700
UR
Shim (t:0.10mm)
Loading…
↗
38
61A4558710
UR
Shim (t:0.12mm)
Loading…
↗
38
61A4558720
UR
Shim (t:0.15mm)
Loading…
↗
38
61A4558730
UR
Shim (t:0.18mm)
Loading…
↗
38
61A4558740
UR
Shim (t:0.30mm)
Loading…
↗
38
61A4558750
UR
Shim (t:0.40mm)
Loading…
↗
38
61A4558760
UR
Shim (t:0.50mm)
Loading…
↗
39
93341930U9
Bearing
Loading…
↗
40
9334134019
Bearing
Loading…
↗
41
9020142014
Washer, plate
Loading…
↗
42
9321055M14
O-Ring
Loading…
↗
43
90501450A2
Spring, compression
Loading…
↗
44
6E54534400
Cover, Oil Seal
Loading…
↗
45
9709508025
Bolt
Loading…
↗
47
6P24550100
X(25.3")
Drive shaft comp.
Loading…
↗
47
6P24550110
U(30.3")
Drive shaft comp.
Loading…
↗
48
6P24555101
Pinion
Loading…
↗
49
9020116M00
Washer, Plate
Loading…
↗
50
9017016M19
Nut
Loading…
↗
51
6P24556000
Gear set
Loading…
↗
52
69J4561100
Shaft, Propeller
Loading…
↗
53
61A4564102
Shifter
Loading…
↗
54
61A4563401
Slide, Shift
Loading…
↗
55
61A4563200
Pin, Cross
Loading…
↗
56
69J4563100
Clutch, Dog
Loading…
↗
57
61A4563300
Ring, Cross Pin
Loading…
↗
58
6H14566800
Shaft, Free 1
Loading…
↗
59
61A4563500
Plunger, Shift
Loading…
↗
60
9020102M00
Washer, Plate
Loading…
↗
61
9018302M03
Nut, Spring
Loading…
↗
62
9050110M77
Spring, Compression
Loading…
↗
63
9350104011
Ball
Loading…
↗
64
6D0453320094
Housing, bearing
Loading…
↗
65
9959010114
Pin, Dowel
Loading…
↗
66
93306210U0
Bearing
Loading…
↗
67
6P24557100
Gear
Loading…
↗
68
6P24557800
UR
Shim (t:1.80mm)
Loading…
↗
68
6P24557810
UR
Shim (t:1.90mm)
Loading…
↗
68
6P24557820
UR
Shim (t:2.00mm)
Loading…
↗
68
6P24557830
UR
Shim (t:2.10mm)
Loading…
↗
68
6P24557840
UR
Shim (t:2.20mm)
Loading…
↗
69
61A4557700
UR
Shim (t:0.10mm)
Loading…
↗
69
61A4557710
UR
Shim (t:0.12mm)
Loading…
↗
69
61A4557720
UR
Shim (t:0.15mm)
Loading…
↗
69
61A4557730
UR
Shim (t:0.18mm)
Loading…
↗
69
61A4557740
UR
Shim (t:0.30mm)
Loading…
↗
69
61A4557750
UR
Shim (t:0.40mm)
Loading…
↗
69
61A4557760
UR
Shim (t:0.50mm)
Loading…
↗
70
9331543064
Bearing
Loading…
↗
71
9310130002
Oil seal
Loading…
↗
72
9321104384
O–Ring
Loading…
↗
73
9010508049
Bolt, flange
Loading…
↗
74
9020108023
Washer, Plate
Loading…
↗
75
9370009M00
Nipple, Grease
Loading…
↗
76
6D045361008D
Cap, lower casing
Loading…
↗
77
9709508020
Bolt
Loading…
↗
