FL300DET (2024)
LOWER CASING & DRIVE 1

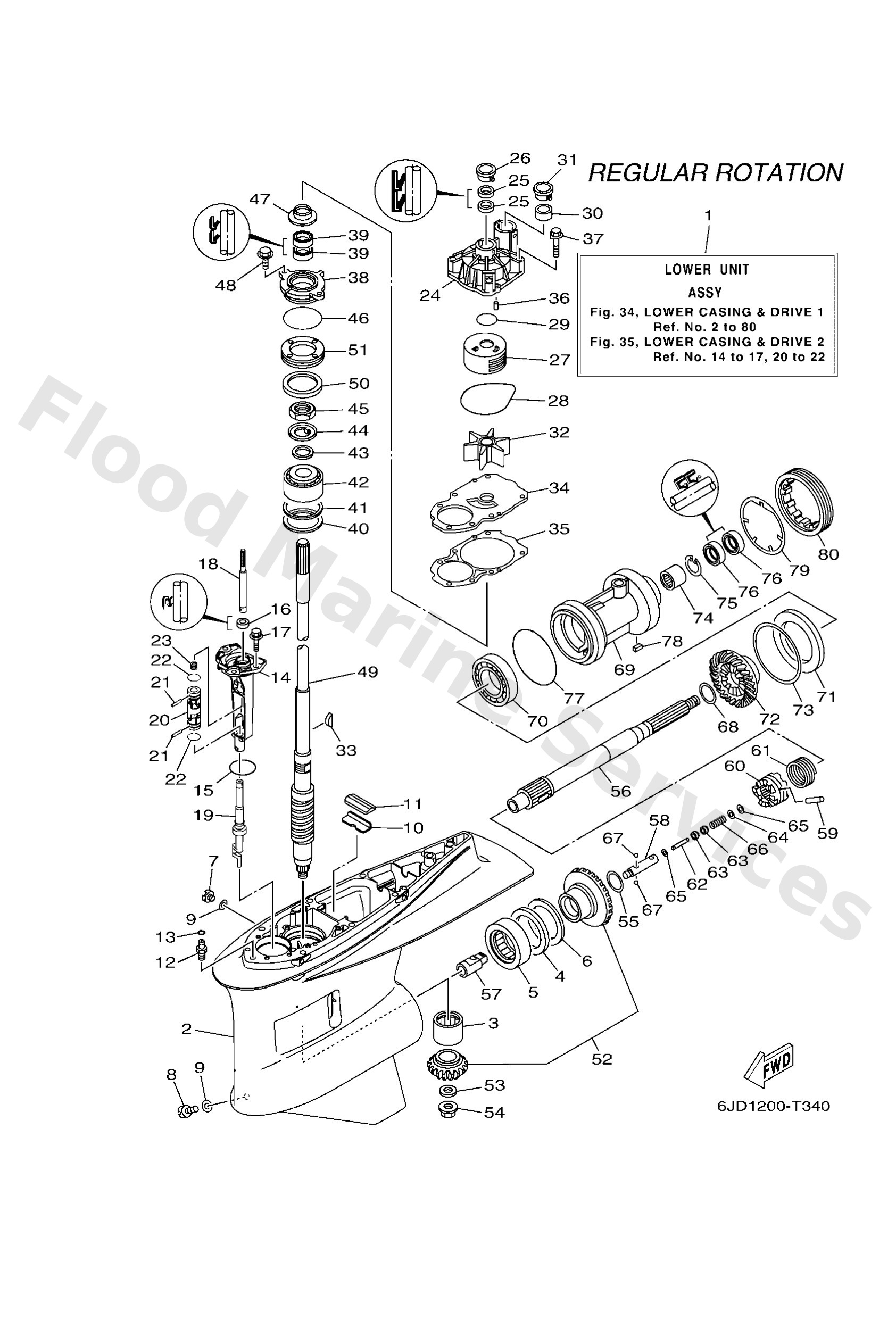

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6JD45300018D
X(25.3"),RH
Lower unit assembly
Loading…
↗
1
6JD45300118D
U(30.3"),RH
Lower unit assembly
Loading…
↗
2
6JD45301008D
Casing, lower
Loading…
↗
3
9331193590
Bearing
Loading…
↗
4
9334067011
Bearing
Loading…
↗
5
9339000031
Bearing
Loading…
↗
6
6AW4556700
UR
Shim (t:2.00mm)
Loading…
↗
6
6AW4556710
UR
Shim (t:2.03mm)
Loading…
↗
6
6AW4556720
UR
Shim (t:2.06mm)
Loading…
↗
6
6AW4556730
UR
Shim (t:2.09mm)
Loading…
↗
6
6AW4556740
UR
Shim (t:2.12mm)
Loading…
↗
6
6AW4556750
UR
Shim (t:2.15mm)
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
6884534110
Plug, drain
Loading…
↗
9
9043008003
Gasket
Loading…
↗
10
61A4537600
Guide, seal damper
Loading…
↗
11
6JD4537500
Damper, seal
Loading…
↗
12
63P4537800
Nipple, hose
Loading…
↗
13
9321007003
O-ring (11m)
Loading…
↗
14
6JD4532100
Plate
Loading…
↗
15
9321058144
O-ring(47x)
Loading…
↗
16
9310112M70
Oil seal
Loading…
↗
17
9011908180
Bolt, with washer
Loading…
↗
18
6JD4415300
X(25.3")
Rod, shift 3
Loading…
↗
18
6JD4415310
U(30.3")
Rod, shift 3
Loading…
↗
19
6JD4415000
Shift cam assembly
Loading…
↗
20
6JD4586000
Universal joint assembly
Loading…
↗
21
6JD4552400
Pin
Loading…
↗
22
6JD4531900
Clip
Loading…
↗
23
90501127J4
Spring, compression(jn9)
Loading…
↗
24
6CE4431101
Housing, water pump
Loading…
↗
25
9310422M07
Oil seal(61a)
Loading…
↗
26
6AW4431200
Cover, water pump housing
Loading…
↗
27
6JD4432200
Insert, cartridge
Loading…
↗
28
9321094003
O-ring
Loading…
↗
29
9321037160
O-ring (6g8)
Loading…
↗
30
6AW4436501
Damper, water seal 1
Loading…
↗
32
6CE4435200
Impeller
Loading…
↗
33
9028004002
Key, woodruff
Loading…
↗
34
6JD4432300
Outer plate, cartridge
Loading…
↗
35
6JD4431500
Gasket, water pump
Loading…
↗
36
9360612019
Pin, dowel (614)
Loading…
↗
37
9011908191
Bolt, with washer
Loading…
↗
38
6AW4533500CA
Housing, oil seal
Loading…
↗
39
9310128019
Oil seal
Loading…
↗
40
9020168008
Washer, plate
Loading…
↗
41
6AW4558700
UR
Shim (t:0.10mm)
Loading…
↗
41
6AW4558710
UR
Shim (t:0.12mm)
Loading…
↗
41
6AW4558720
UR
Shim (t:0.15mm)
Loading…
↗
41
6AW4558730
UR
Shim (t:0.18mm)
Loading…
↗
41
6AW4558740
UR
Shim (t:0.30mm)
Loading…
↗
41
6AW4558750
UR
Shim (t:0.40mm)
Loading…
↗
41
6AW4558760
UR
Shim (t:0.50mm)
Loading…
↗
42
9339999962
Bearing
Loading…
↗
43
90201301U7
Washer, plate
Loading…
↗
44
9021430003
Washer, claw
Loading…
↗
45
9017030M18
Nut(6t5)
Loading…
↗
46
9321069MG6
O-ring
Loading…
↗
47
6KA4534400
Cover, oil seal
Loading…
↗
48
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
49
6JD4550100
X(25.3")
Drive shaft comp.
Loading…
↗
49
6JD4550110
U(30.3")
Drive shaft comp.
Loading…
↗
50
6T54553900
Spacer 2
Loading…
↗
51
6AW4524400
Nut
Loading…
↗
52
6JD4555000
Gear set
Loading…
↗
53
9020118023
Washer, plate
Loading…
↗
54
9017918009
Nut
Loading…
↗
55
9020135015
Washer, plate
Loading…
↗
56
6AW4561100
Shaft, propeller
Loading…
↗
57
6JD4564100
Shifter
Loading…
↗
58
61A4563401
Slide, shift
Loading…
↗
59
6AW4563200
Pin, cross
Loading…
↗
60
6AW4563100
Clutch, dog
Loading…
↗
61
6AW4563300
Ring, cross pin
Loading…
↗
62
6H14566800
Shaft, free 1
Loading…
↗
63
61A4563500
Plunger, shift
Loading…
↗
64
9020102M00
Washer, plate(61a)
Loading…
↗
65
9018302M03
Nut, spring (6h1)
Loading…
↗
66
9050110M77
Spring, compression(61a)
Loading…
↗
67
9350104011
Ball
Loading…
↗
68
6AW4561200
Washer, thrust
Loading…
↗
69
6AW4533200
Housing, bearing
Loading…
↗
70
9330621101
Bearing
Loading…
↗
71
6AW4557600
Washer, thrust 2
Loading…
↗
72
6AW4557100
Gear
Loading…
↗
73
6AW4557700
UR
Shim (t:0.10mm)
Loading…
↗
73
6AW4557710
UR
Shim (t:0.12mm)
Loading…
↗
73
6AW4557720
UR
Shim (t:0.15mm)
Loading…
↗
73
6AW4557730
UR
Shim (t:0.18mm)
Loading…
↗
73
6AW4557740
UR
Shim (t:0.30mm)
Loading…
↗
73
6AW4557750
UR
Shim (t:0.40mm)
Loading…
↗
73
6AW4557760
UR
Shim (t:0.50mm)
Loading…
↗
74
9331163591
Bearing
Loading…
↗
75
9900947500
Circlip(48y)
Loading…
↗
76
9310135019
Oil seal
Loading…
↗
77
9321110232
O-ring (278)
Loading…
↗
78
9028205008
Key, straight
Loading…
↗
79
6AW4538300
Washer, claw
Loading…
↗
80
6AW4538400
Nut
Loading…
↗
