FL350AET (2011)
LOWER CASING & DRIVE 1

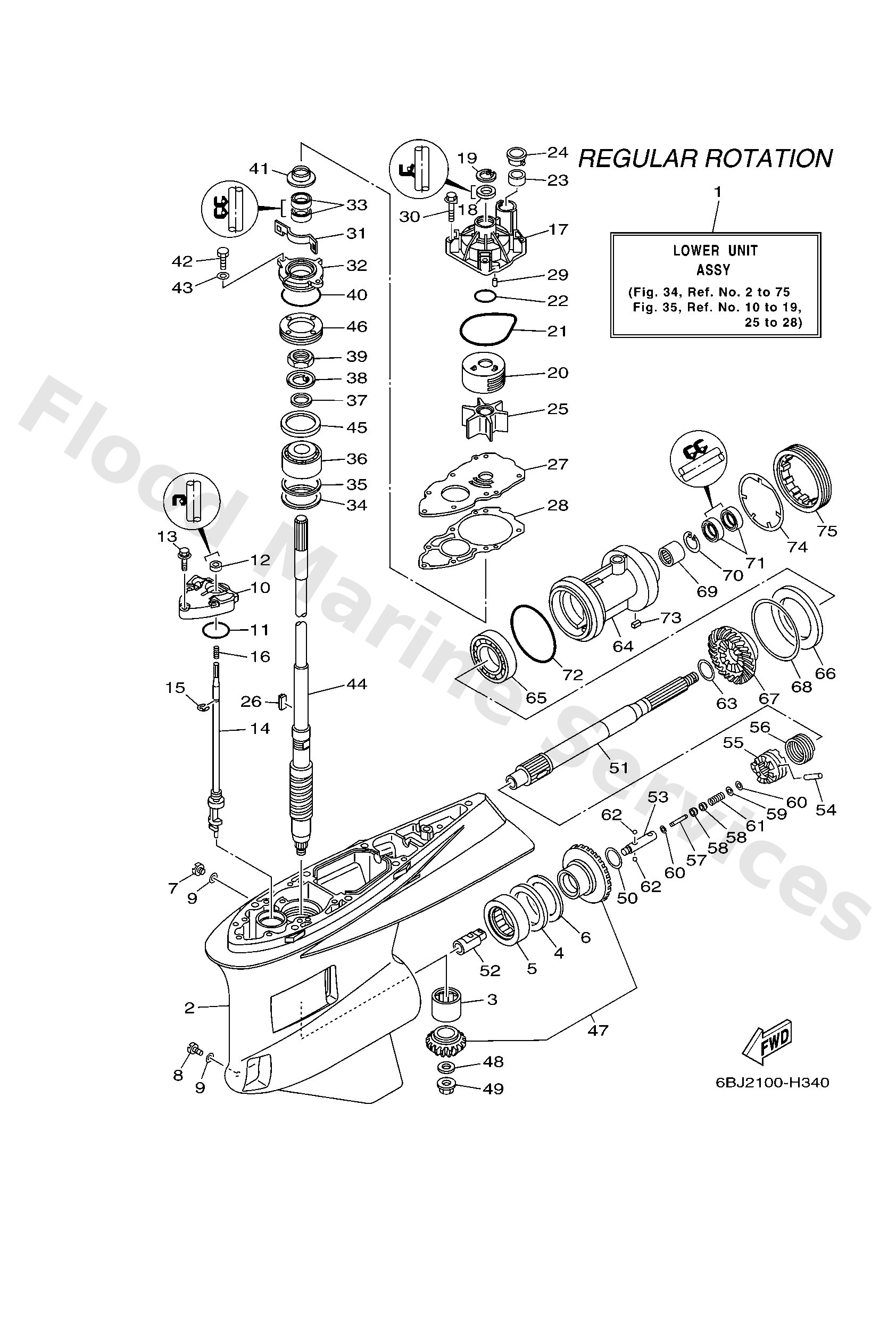

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6AW45300308D
U(30.1"),RH
Lower unit assembly
Loading…
↗
1
6AW45300208D
X(25.1"),RH
Lower unit assembly
Loading…
↗
2
6AW45311018D
Casing, lower
Loading…
↗
3
9331193590
Bearing
Loading…
↗
4
9334067011
Bearing
Loading…
↗
5
9339000031
Bearing
Loading…
↗
6
6AW4556700
UR
Shim (t:2.00mm)
Loading…
↗
6
6AW4556710
UR
Shim (t:2.03mm)
Loading…
↗
6
6AW4556720
UR
Shim (t:2.06mm)
Loading…
↗
6
6AW4556730
UR
Shim (t:2.09mm)
Loading…
↗
6
6AW4556740
UR
Shim (t:2.12mm)
Loading…
↗
6
6AW4556750
UR
Shim (t:2.15mm)
Loading…
↗
7
9034008002
Plug, straight screw
Loading…
↗
8
6884534110
Plug, drain
Loading…
↗
9
9043008020
Gasket
Loading…
↗
10
6AW4532100
Plate
Loading…
↗
11
9321048214
O-ring
Loading…
↗
12
9310112M70
Oil seal
Loading…
↗
13
9011908M26
Bolt, with washer
Loading…
↗
14
6AW4415000
Shift cam assembly
Loading…
↗
15
9900210600
Circlip
Loading…
↗
16
90501127J4
Spring, compression(jn9)
Loading…
↗
17
6AW4431100
Housing, water pump
Loading…
↗
18
9310924001
Oil seal
Loading…
↗
19
9342035085
Circlip
Loading…
↗
20
6AW4432200
Insert, cartridge
Loading…
↗
21
9321094003
O-ring
Loading…
↗
22
9321037160
O-ring (6g8)
Loading…
↗
23
6AW4436500
Damper, water seal 1
Loading…
↗
24
6AW4431200
Cover, water pump housing
Loading…
↗
25
6AW4435200
Impeller
Loading…
↗
26
6AW4433600
Key
Loading…
↗
27
6AW4432300
Outer plate, cartridge
Loading…
↗
28
6AW4431500
Gasket, water pump
Loading…
↗
29
9360612019
Pin, dowel (614)
Loading…
↗
30
9011908M14
Bolt, with washer
Loading…
↗
31
6AW4572300
Plate, seal
Loading…
↗
32
6AW4533500CA
Housing, oil seal
Loading…
↗
33
9310128004
Oil seal
Loading…
↗
34
9020168008
Washer, plate
Loading…
↗
35
6AW4558700
UR
Shim (t:0.10mm)
Loading…
↗
35
6AW4558710
UR
Shim (t:0.12mm)
Loading…
↗
35
6AW4558720
UR
Shim (t:0.15mm)
Loading…
↗
35
6AW4558730
UR
Shim (t:0.18mm)
Loading…
↗
35
6AW4558740
UR
Shim (t:0.30mm)
Loading…
↗
35
6AW4558750
UR
Shim (t:0.40mm)
Loading…
↗
35
6AW4558760
UR
Shim (t:0.50mm)
Loading…
↗
36
9339999962
Bearing
Loading…
↗
37
90201301U7
Washer, plate
Loading…
↗
38
9021430003
Washer, claw
Loading…
↗
39
9017030M18
Nut(6t5)
Loading…
↗
40
9321069MG6
O-ring
Loading…
↗
41
6AW4534400
Cover, oil seal
Loading…
↗
42
9709508020
Bolt, hexagon
Loading…
↗
43
9299508600
Washer, plain (663)
Loading…
↗
44
6AW4550100
X(25.1")
Drive shaft comp.
Loading…
↗
44
6AW4550110
U(30.1")
Drive shaft comp.
Loading…
↗
45
6T54553900
Spacer 2
Loading…
↗
46
6AW4524400
Nut
Loading…
↗
47
6AW4555000
Gear set
Loading…
↗
48
9020118023
Washer, plate
Loading…
↗
49
9017918009
Nut
Loading…
↗
50
9020135015
Washer, plate
Loading…
↗
51
6AW4561100
Shaft, propeller
Loading…
↗
52
6AW4564100
Shifter
Loading…
↗
53
61A4563401
Slide, shift
Loading…
↗
54
6AW4563200
Pin, cross
Loading…
↗
55
6AW4563100
Clutch, dog
Loading…
↗
56
6AW4563300
Ring, cross pin
Loading…
↗
57
6H14566800
Shaft, free 1
Loading…
↗
58
61A4563500
Plunger, shift
Loading…
↗
59
9020102M00
Washer, plate(61a)
Loading…
↗
60
9018302M03
Nut, spring (6h1)
Loading…
↗
61
9050110M77
Spring, compression(61a)
Loading…
↗
62
9350104011
Ball
Loading…
↗
63
6AW4561200
Washer, thrust
Loading…
↗
64
6AW4533200
Housing, bearing
Loading…
↗
65
9330621101
Bearing
Loading…
↗
66
6AW4557600
Washer, thrust 2
Loading…
↗
67
6AW4557100
Gear
Loading…
↗
68
6AW4557700
UR
Shim (t:0.10mm)
Loading…
↗
68
6AW4557730
UR
Shim (t:0.18mm)
Loading…
↗
68
6AW4557760
UR
Shim (t:0.50mm)
Loading…
↗
68
6AW4557750
UR
Shim (t:0.40mm)
Loading…
↗
68
6AW4557740
UR
Shim (t:0.30mm)
Loading…
↗
68
6AW4557720
UR
Shim (t:0.15mm)
Loading…
↗
68
6AW4557710
UR
Shim (t:0.12mm)
Loading…
↗
69
9331163591
Bearing
Loading…
↗
70
9900947500
Circlip(48y)
Loading…
↗
71
9310135018
Oil seal
Loading…
↗
72
9321110232
O-ring (278)
Loading…
↗
73
9028205008
Key, straight
Loading…
↗
74
6AW4538300
Washer, claw
Loading…
↗
75
6AW4538400
Nut
Loading…
↗
