FT25BET (2004)
LOWER CASING & DRIVE 1

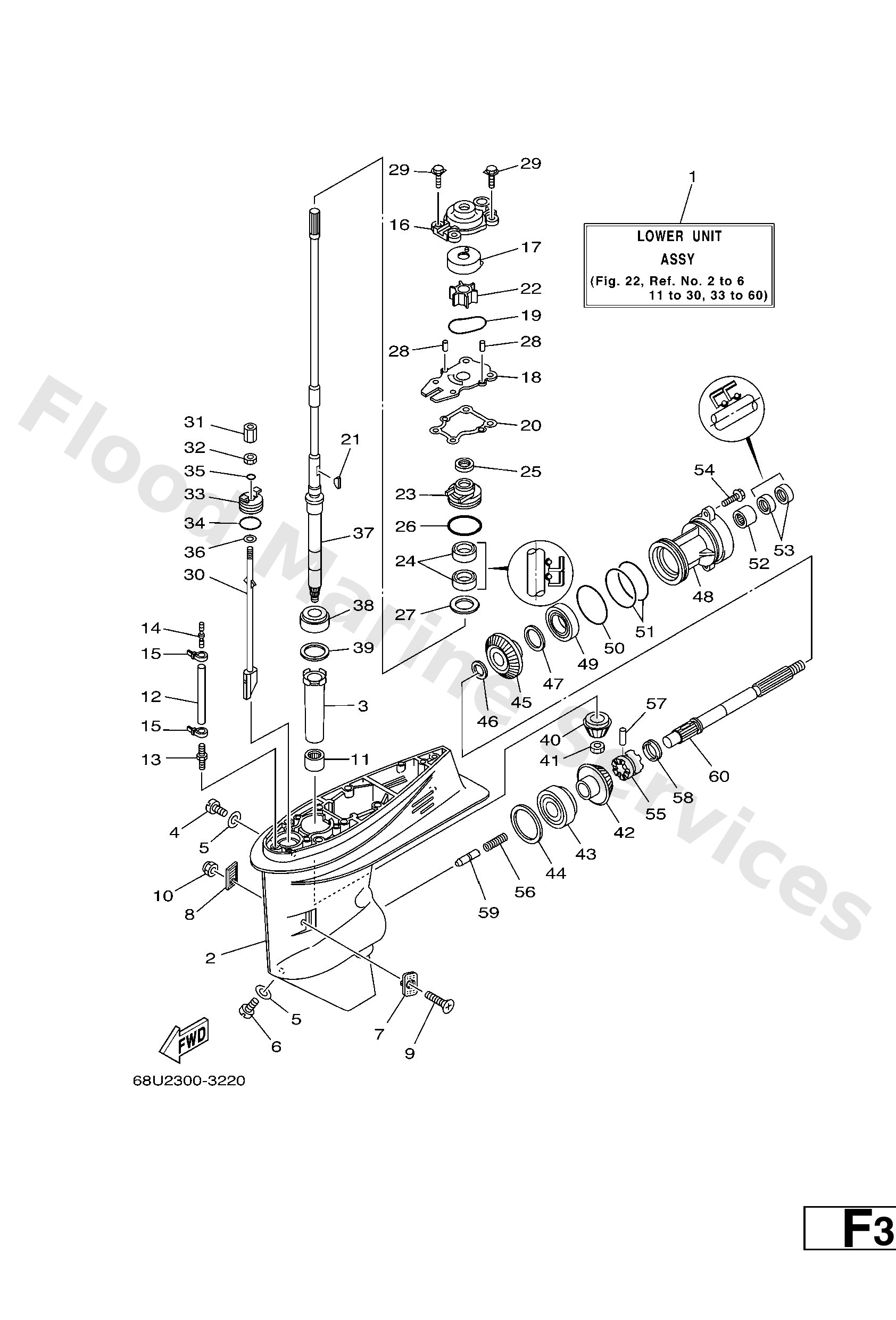

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
68U45300114D
L
-
Loading…
↗
2
67C45301004D
Casing, lower
Loading…
↗
3
6H44553600
Sleeve, drive shaft
Loading…
↗
4
9034008002
Plug, straight screw
Loading…
↗
5
9043008020
Gasket
Loading…
↗
6
6884534110
Plug, drain
Loading…
↗
7
63D4521400
Cover, water inlet
Loading…
↗
8
63D4521500
Cover, water inlet
Loading…
↗
9
9014205M06
Screw, countersunk
Loading…
↗
10
9538005600
Nut, hexagon (663)
Loading…
↗
11
9331532224
Brg,cyl-cal roller 42.2g nk
Loading…
↗
12
9044507ME8
L
Hose (l250)
Loading…
↗
13
6E54537800
Nipple, hose
Loading…
↗
14
6E58355810
End, nipple
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
66T4431100
Housing, water pump
Loading…
↗
17
63D4432200
Insert, cartridge
Loading…
↗
18
66T4432300
Outer plate, cartridge
Loading…
↗
19
9321059MG7
O-ring
Loading…
↗
20
63D4431600
Gasket, water pump
Loading…
↗
21
9028003M03
Key, woodruff (697)
Loading…
↗
22
6H44435202
Impeller
Loading…
↗
23
63D4434100
Housing, water pump set
Loading…
↗
24
9310122M60
Oil seal
Loading…
↗
25
66T4534401
Cover, oil seal
Loading…
↗
26
9321048MG8
O-ring
Loading…
↗
27
9020127M00
Washer, plate(62x)
Loading…
↗
28
9360408062
Pin,dowel (626)
Loading…
↗
29
9011908M15
Bolt, with washer(62w)
Loading…
↗
30
67C4415010
L
Shift cam assembly
Loading…
↗
31
67C4414600
Connector, shift rod
Loading…
↗
32
9538006700
Nut
Loading…
↗
33
68U4532100
Plate
Loading…
↗
34
9321033MG4
O-ring
Loading…
↗
35
9321006ME6
O-ring
Loading…
↗
36
9299006600
Washer, plain (646)
Loading…
↗
37
68U4550111
L
Drive shaft comp.
Loading…
↗
38
9333200001
Brg, tapered roller (409)
Loading…
↗
39
663455870150
UR
Shim (t:0.50mm)
Loading…
↗
39
663455870112
UR
Shim (t:0.12mm)
Loading…
↗
39
663455870140
UR
Shim (t:0.40mm)
Loading…
↗
39
663455870130
UR
Shim (t:0,30mm)
Loading…
↗
39
663455870115
UR
Shim (t:0.15mm)
Loading…
↗
39
663455870110
UR
Shim (t:0.10mm)
Loading…
↗
39
663455870118
UR
Shim (t:0.18mm)
Loading…
↗
40
68U4555100
Pinion
Loading…
↗
41
9017910M38
Nut
Loading…
↗
42
68U4556000
Gear
Loading…
↗
43
9333200003
Brg,cyl-cal roller 318g ky
Loading…
↗
44
663455670118
UR
Shim (t:0.18mm)
Loading…
↗
44
663455670130
UR
Shim (t:0.30mm)
Loading…
↗
44
663455670115
UR
Shim (t:0.15mm)
Loading…
↗
44
663455670112
UR
Shim (t:0.12mm)
Loading…
↗
44
663455670110
UR
Shim (t:0.10mm)
Loading…
↗
44
663455670140
UR
Shim (t:0.40mm)
Loading…
↗
44
663455670150
UR
Shim (t:0.50mm)
Loading…
↗
45
68U4557100
Gear
Loading…
↗
46
9020122429
Washer, plate(663)
Loading…
↗
47
63D455770015
UR
Shim (t:0.15mm)
Loading…
↗
47
63D455770050
UR
Shim (t:0.50mm)
Loading…
↗
47
63D455770040
UR
Shim (t:0.40mm)
Loading…
↗
47
63D455770030
UR
Shim (t:0.30mm)
Loading…
↗
47
63D455770018
UR
Shim (t:0.18mm)
Loading…
↗
47
63D455770012
UR
Shim (t:0.12mm)
Loading…
↗
47
63D455770010
UR
Shim (t:0.10mm)
Loading…
↗
48
63D45361024D
Cap, lower casing
Loading…
↗
49
93306001U1
Bearing(62x)
Loading…
↗
50
9321069MG6
O-ring
Loading…
↗
51
9321074MG5
O-ring (xea)
Loading…
↗
52
9331722204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
53
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
54
9010508M61
Bolt, washer based(62x)
Loading…
↗
55
68U4563100
Clutch, dog
Loading…
↗
56
9050115M01
Spring, compression
Loading…
↗
57
9025006023
Pin, strait (663)
Loading…
↗
58
67C4563300
Ring, cross pin
Loading…
↗
59
66T4563500
Plunger, shift
Loading…
↗
60
66T4561100
Shaft, propeller
Loading…
↗
