FT9.9LE (2021)
LOWER CASING & DRIVE 1

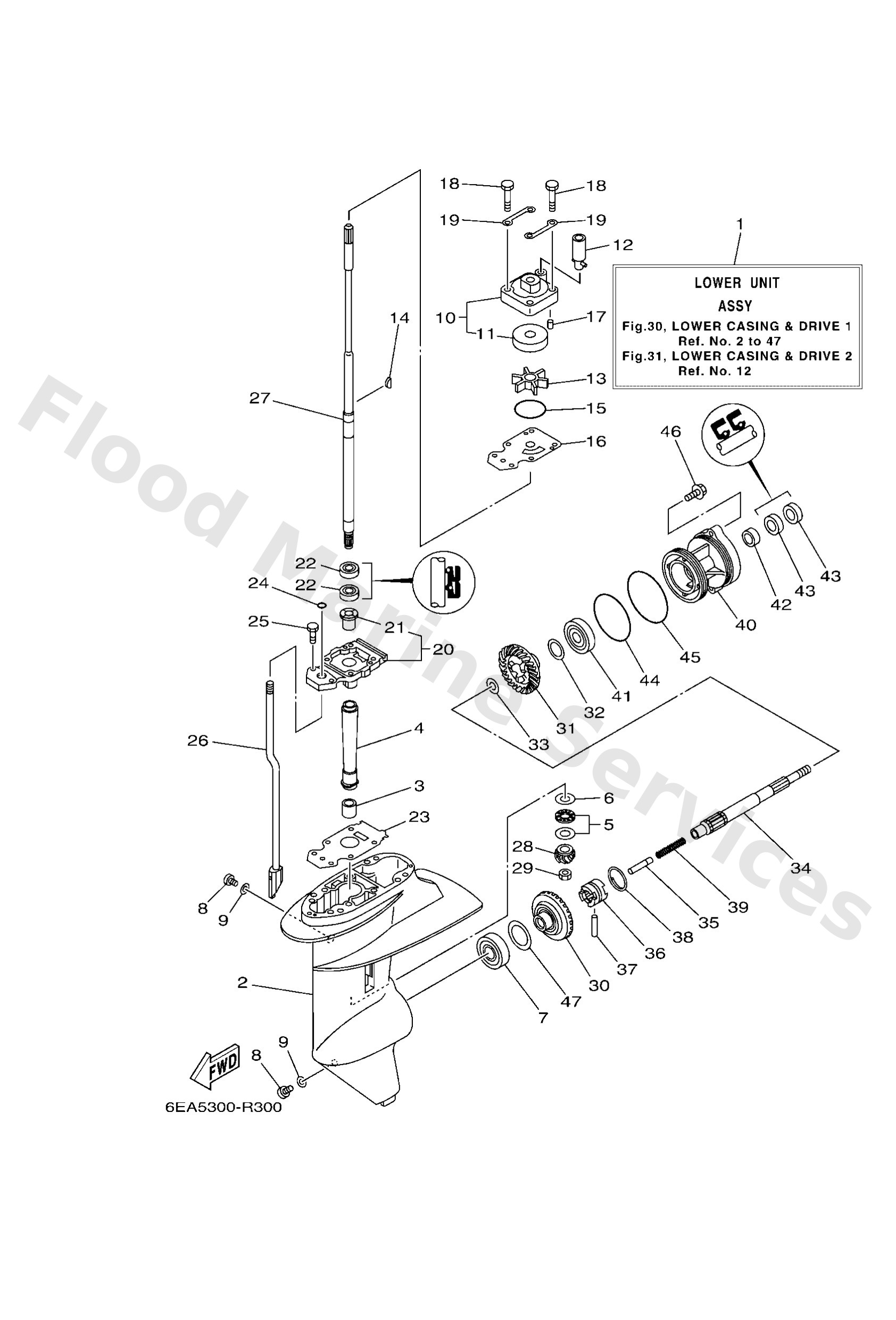

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
69G45300138D
L(21.7")
Lower unit assembly
Loading…
↗
1
69G45300238D
X(24.4")
Lower unit assembly
Loading…
↗
2
66R45311018D
Casing, lower
Loading…
↗
3
93315314V8
Bearing, needle (6e7)
Loading…
↗
4
66R4553600
Sleeve, drive shaft
Loading…
↗
5
9334141416
Bearing
Loading…
↗
6
66R4558700
UR
Shim (t:1.13mm)
Loading…
↗
6
66R4558710
UR
Shim (t:1.2mm)
Loading…
↗
7
9333200005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
8
9034008002
Plug, straight screw
Loading…
↗
9
9043008003
Gasket
Loading…
↗
10
63V4430100
Water pump housing comp.
Loading…
↗
11
63V4432200
Insert, cartridge
Loading…
↗
12
68T4436601
Damper, water seal 2
Loading…
↗
13
63V4435201
Impeller
Loading…
↗
14
6644433800
Key, woodruff
Loading…
↗
15
9321044398
O-ring(55x)
Loading…
↗
16
68T4432300
Outer plate, cartridge
Loading…
↗
17
9360412M07
Pin, dowel (688)
Loading…
↗
18
97D9508045
Bolt, hexagon deep recess
Loading…
↗
19
63V4432801
Plate
Loading…
↗
20
69G4533101CA
Housing, bearing
Loading…
↗
21
6264531609
Bushing, drive shaft 1
Loading…
↗
22
9310120048
Oil seal (20x30x6-648)
Loading…
↗
23
69G45315A0
Packing, lower casing
Loading…
↗
24
9321006ME6
O-ring
Loading…
↗
25
9708008025
Screw, bind(j36)
Loading…
↗
26
69G4415010
L(21.7")
Shift cam assembly
Loading…
↗
26
69G4415020
X(24.4")
Shift cam assembly
Loading…
↗
27
69G4551010
L(21.7")
Drive shaft assembly
Loading…
↗
27
69G4551020
X(24.4")
Drive shaft assembly
Loading…
↗
28
66R4555100
Pinion
Loading…
↗
29
9017908M06
Nut (6e7)
Loading…
↗
30
66R4556001
Gear
Loading…
↗
31
66R4557100
Gear
Loading…
↗
32
6264557700
UR
Shim (t:0.10mm)
Loading…
↗
32
6264557710
UR
Shim (t:0.20mm)
Loading…
↗
32
6264557720
UR
Shim (t:0.30mm)
Loading…
↗
32
6264557730
UR
Shim (t:0.40mm)
Loading…
↗
32
6264557740
UR
Shim (t:0.50mm)
Loading…
↗
33
9020117682
Washer, plate (2k7)
Loading…
↗
34
6834561100
Shaft propeller
Loading…
↗
35
6504563500
Plunger, shift
Loading…
↗
36
69G4563100
Clutch, dog
Loading…
↗
37
9025005010
Pin straight 648456320000
Loading…
↗
38
6484563311
Ring, cross pin
Loading…
↗
39
9050114M09
Spring, compression
Loading…
↗
40
66R45361008D
Cap, lower casing
Loading…
↗
41
9330600501
Bearing(1ff)
Loading…
↗
42
93315317U2
Brg,cyl-cal roller 14g (683)
Loading…
↗
43
9310117054
Oil seal (17x30x6-650)
Loading…
↗
44
9321074M68
O-ring (6g8)
Loading…
↗
45
9321074316
O-ring (1j7)
Loading…
↗
46
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
