LZ200NETO (2006)
LOWER CASING & DRIVE 1

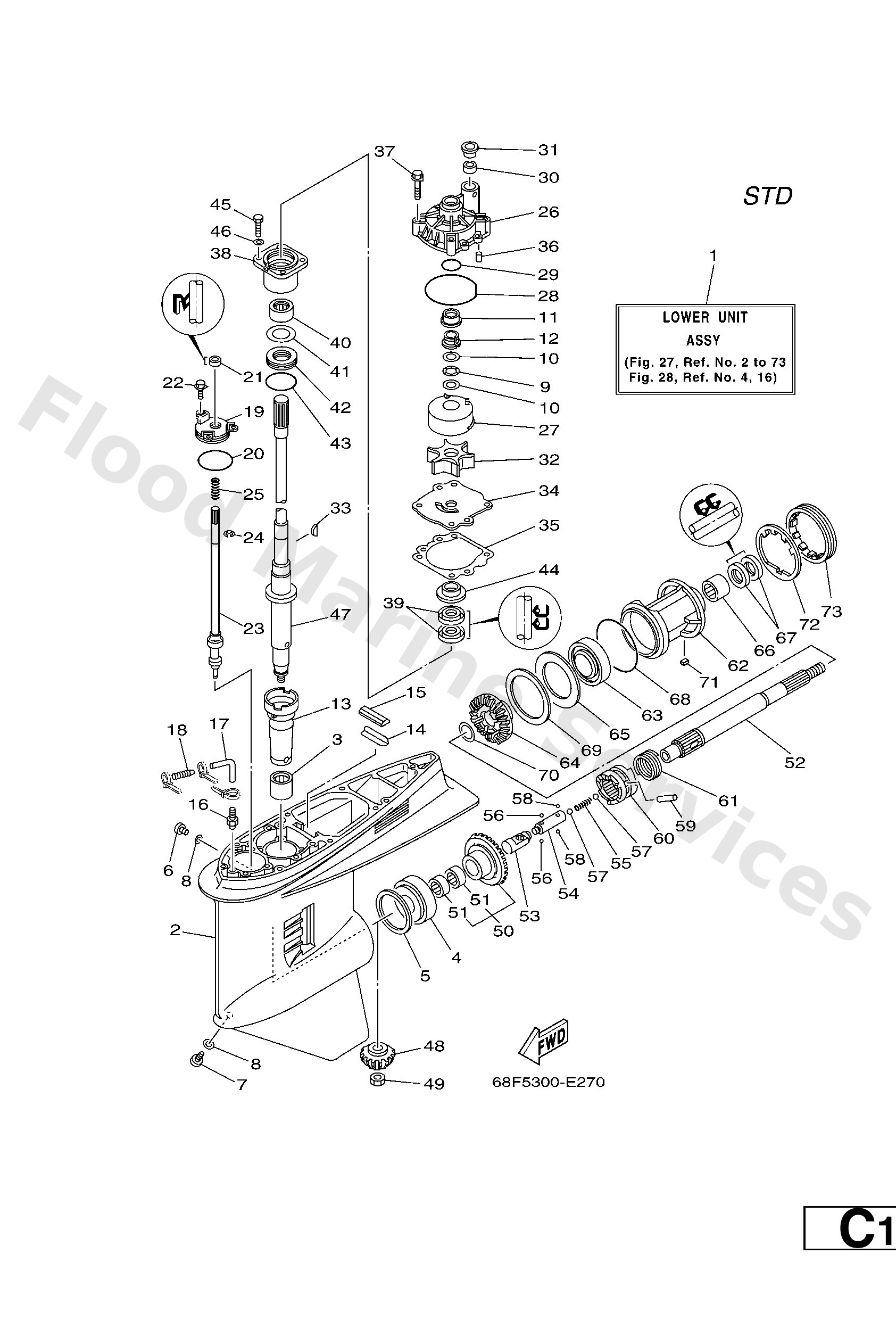

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
64E45300228D
X (25.3"),RH
Lower unit assembly
Loading…
↗
1
64E45300028D
L (20.3"),RH
Lower unit assembly
Loading…
↗
2
6J945301058D
Casing, lower
Loading…
↗
3
93311928U5
Bearing, needle (6g5)
Loading…
↗
4
93332000V3
Bearing, taper roller (6g5)
Loading…
↗
5
6G54556701
UR
Shim (t:0.10mm)
Loading…
↗
5
6G54556710
UR
Shim (t:0.12mm)
Loading…
↗
5
6G54556720
UR
Shim (t:0.15mm)
Loading…
↗
5
6G54556730
UR
Shim (t:0.18mm)
Loading…
↗
5
6G54556740
UR
Shim (t:0.30mm)
Loading…
↗
5
6G54556750
UR
Shim (t:0.40mm)
Loading…
↗
5
6G54556760
UR
Shim (t:0.50mm)
Loading…
↗
6
9034008002
Plug, straight screw
Loading…
↗
7
6884534110
Plug, drain
Loading…
↗
8
9043008020
Gasket
Loading…
↗
9
9020622M19
Washer, wave(61a)
Loading…
↗
10
9020122M01
Washer, plate(61a)
Loading…
↗
11
61A4552700
Collar, drive shaft
Loading…
↗
12
61A4553800
Spacer, 1
Loading…
↗
13
6G54553601
Sleeve, drive shaft
Loading…
↗
14
663453760094
L (20.3")
Guide, seal damper
Loading…
↗
14
64D453760094
X (25.3")
Guide, seal damper
Loading…
↗
15
6884537500
Damper, seal 2
Loading…
↗
16
6E54537800
Nipple, hose
Loading…
↗
17
9044507ME9
X (25.3")
Hose (l250)
Loading…
↗
17
9044507ME8
L (20.3")
Hose (l250)
Loading…
↗
18
6E58355810
End, nipple
Loading…
↗
19
6E54532100
Plate
Loading…
↗
20
9321058144
O-ring(47x)
Loading…
↗
21
9310609014
Oil seal
Loading…
↗
22
9011906M10
Bolt, with washer
Loading…
↗
23
6G54415002
Shift cam assembly
Loading…
↗
24
9900108600
Circlip(2r6)
Loading…
↗
25
9050111M10
Spring, compression (663)
Loading…
↗
26
61A4431101
Housing, water pump
Loading…
↗
27
61A4432202
Insert, cartridge
Loading…
↗
28
9321086M38
O-ring (6e5)
Loading…
↗
29
9321037160
O-ring (6g8)
Loading…
↗
30
6E54436500
Damper, water seal 1
Loading…
↗
31
6E54431200
Cover, water pump housing
Loading…
↗
32
6E54435201
Impeller
Loading…
↗
33
9028004M05
Key, woodruff (6e5)
Loading…
↗
34
6G54432300
Outer plate, cartridge
Loading…
↗
35
6E544315A0
Gasket,water pump
Loading…
↗
36
9360612019
Pin, dowel (614)
Loading…
↗
37
9011908M14
Bolt, with washer
Loading…
↗
38
6E5453310094
Housing, bearing
Loading…
↗
39
9310128M16
Oil seal (6e5)
Loading…
↗
40
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
41
6E54558701
UR
Shim (t:0.10mm)
Loading…
↗
41
6E54558740
UR
Shim (t:0.30mm)
Loading…
↗
41
6E54558730
UR
Shim (t:0.18mm)
Loading…
↗
41
6E54558710
UR
Shim (t:0.12mm)
Loading…
↗
41
6E54558720
UR
Shim (t:0.15mm)
Loading…
↗
41
6E54558750
UR
Shim (t:0.40mm)
Loading…
↗
41
6E54558760
UR
Shim (t:0.50mm)
Loading…
↗
42
93341930V2
Bearing, thrust(64d)
Loading…
↗
43
9321055M14
O-ring (70e)
Loading…
↗
44
6E54534400
Cover, oil seal
Loading…
↗
45
9709508025
Bolt (62g)
Loading…
↗
46
9299508600
Washer, plain (663)
Loading…
↗
47
6G54550121
X (25.3")
Drive shaft comp.
Loading…
↗
47
6G54550101
L (20.3")
Drive shaft comp.
Loading…
↗
48
6G54555110
Pinion
Loading…
↗
49
9017016M01
Nut, hexagon (688)
Loading…
↗
50
6G54556010
Gear
Loading…
↗
51
93315425V3
Bearing, needle (6g5)
Loading…
↗
52
6J94561101
Shaft, propeller
Loading…
↗
53
6E54564103
Shifter
Loading…
↗
54
6E54563401
Slide, shift
Loading…
↗
55
9050116M37
Spring (6g5)
Loading…
↗
56
9350732009
Ball (12r)
Loading…
↗
57
9351132017
Ball (498)
Loading…
↗
58
9350316003
Ball
Loading…
↗
59
9025008M07
Pin, straight (6g5)
Loading…
↗
60
6G54563110
Clutch, dog
Loading…
↗
61
6E54563301
Ring, cross pin
Loading…
↗
62
6J9453320094
Housing, bearing
Loading…
↗
63
93306209U0
Bearing (6g5)
Loading…
↗
64
6G54557102
Gear
Loading…
↗
65
6G54557610
Washer, thrust 2
Loading…
↗
66
9331543061
Bearing
Loading…
↗
67
9310130M17
Oil seal (6e5)
Loading…
↗
68
9321097M55
O-ring (6g5)
Loading…
↗
69
6G54557702
UR
Shim (t:0.10mm)
Loading…
↗
69
6G54557710
UR
Shim (t:0.12mm)
Loading…
↗
69
6G54557720
UR
Shim (t:0.15mm)
Loading…
↗
69
6G54557730
UR
Shim (t:0.18mm)
Loading…
↗
69
6G54557740
UR
Shim (t:0.30mm)
Loading…
↗
69
6G54557750
UR
Shim (t:0.40mm)
Loading…
↗
69
6G54557760
UR
Shim (t:0.50mm)
Loading…
↗
70
9020130M92
Washer (6g5)
Loading…
↗
71
9028204M00
Key, straight(6g5)
Loading…
↗
72
6G54538301
Washer, claw
Loading…
↗
73
6G54538400
Nut
Loading…
↗
