XF425NSA2 (2018)
LOWER CASING & DRIVE 1

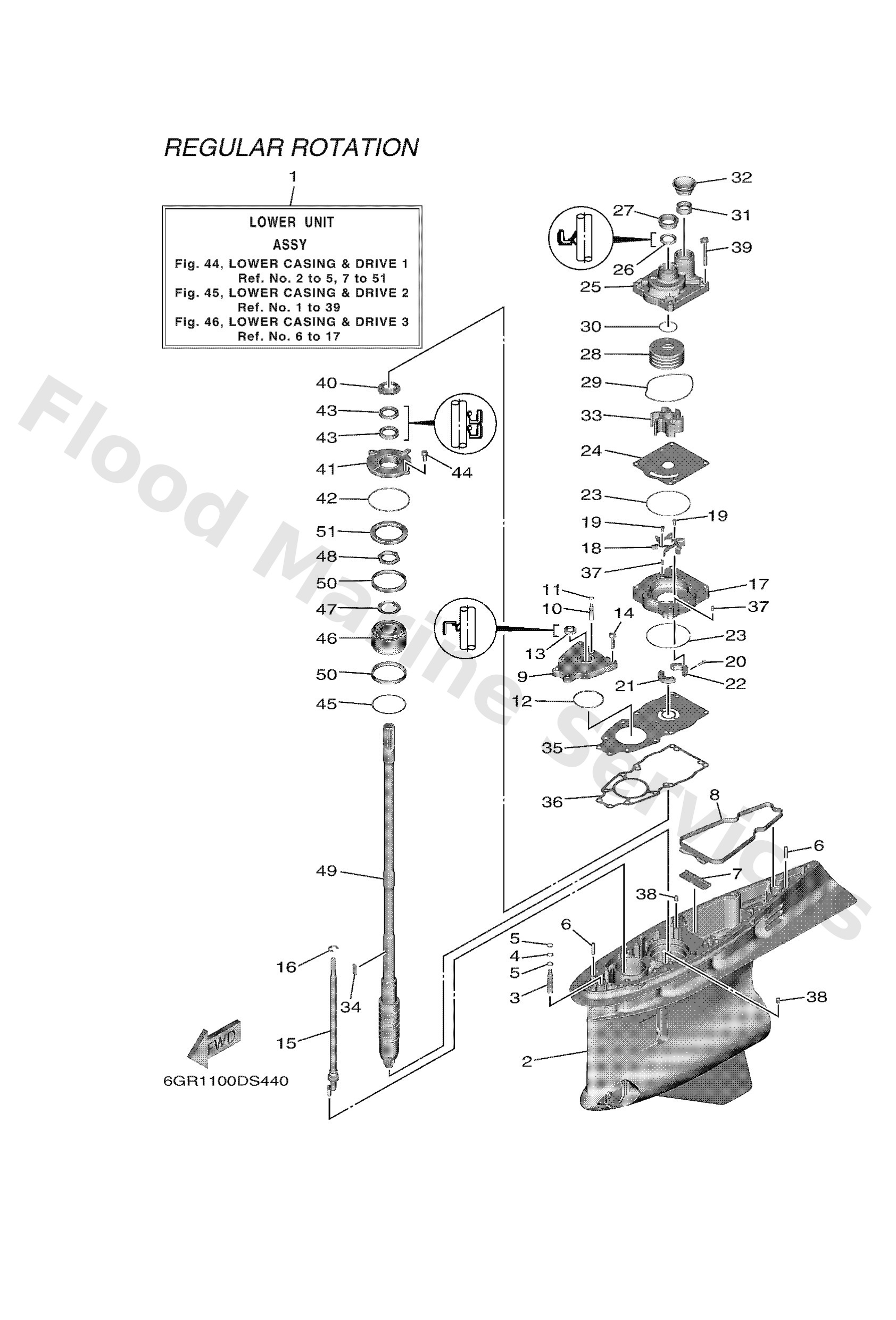

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
6GR4530000CE
WHITE, X(25.2")
Lower unit assembly
Loading…
↗
1
6GR45300008D
GRAY, X(25.2")
Lower unit assembly
Loading…
↗
1
6GR4530020CE
WHITE, E(35.2")
Lower unit assembly
Loading…
↗
1
6GR45300208D
GRAY, E(35.2")
Lower unit assembly
Loading…
↗
1
6GR45300108D
GRAY, U(30.2")
Lower unit assembly
Loading…
↗
1
6GR4530010CE
WHITE, U(30.2")
Lower unit assembly
Loading…
↗
2
6GR45311008D
GRAY
Casing, lower
Loading…
↗
2
6GR4531100CE
WHITE
Casing, lower
Loading…
↗
3
6GR4530800
Valve assembly 1
Loading…
↗
4
9321010010
O-ring
Loading…
↗
5
6GR4387300
Ring, back up
Loading…
↗
6
9948008030
Pin
Loading…
↗
7
6GR4537600
Guide, seal damper
Loading…
↗
8
6GR4537500
Damper, seal
Loading…
↗
9
6GR4532100
Plate
Loading…
↗
10
6GR4530900
Valve assembly 2
Loading…
↗
11
9321007100
O-ring (214)
Loading…
↗
12
9321064488
93210-64488
Loading…
↗
13
9310614001
Oil seal
Loading…
↗
14
9759508535
Bolt, hexagon w/w deep recess
Loading…
↗
15
6GR4415000
UR X(25.2")
Shift cam assembly
Loading…
↗
15
6GR4415010
UR U(30.2")
Shift cam assembly
Loading…
↗
15
6GR4415020
UR E(35.2")
Shift cam assembly
Loading…
↗
16
9900212600
Circlip(58y)
Loading…
↗
17
6GR4434100
Housing, water pump
Loading…
↗
18
6GR1245100
Impeller, water pump
Loading…
↗
19
9709505010
Bolt (682)
Loading…
↗
20
9138005016
Bolt
Loading…
↗
21
6GR4438100
Spacer 1
Loading…
↗
22
6GR4438200
Spacer 2
Loading…
↗
23
9321097690
O-ring(50m)
Loading…
↗
24
6GR4432300
Outer plate, cartridge
Loading…
↗
25
6GR4431100
Housing, water pump
Loading…
↗
26
9310926001
Oil seal
Loading…
↗
27
6GR4431200
Cover, water pump housing
Loading…
↗
28
6GR4432200
Insert, cartridge
Loading…
↗
29
9321108001
O-ring
Loading…
↗
30
9321037160
O-ring (6g8)
Loading…
↗
31
6GR4436500
Damper, water seal 1
Loading…
↗
32
6GR4437900
Guide, water tube
Loading…
↗
33
6GR4435200
Impeller
Loading…
↗
34
6AW4433600
Key
Loading…
↗
35
6GR4432800
Plate
Loading…
↗
36
6GR4431500
Gasket, water pump
Loading…
↗
37
9360612019
Pin, dowel (614)
Loading…
↗
38
9360812M05
Pin, dowel b (6e5)
Loading…
↗
39
9011908M16
Bolt, with washer(6h0)
Loading…
↗
40
6GR4534400
Cover, oil seal
Loading…
↗
41
6GR4533500
Housing, oil seal
Loading…
↗
42
9321089535
O-ring (70e)
Loading…
↗
43
9310130018
Oil seal
Loading…
↗
44
9759508520
Bolt(6td)
Loading…
↗
45
6884556701
UR
Shim (t:0.10mm)
Loading…
↗
45
6884556710
UR
Shim (t:0.12mm)
Loading…
↗
45
6884556720
UR
Shim (t:0.15mm)
Loading…
↗
45
6884556730
UR
Shim (t:0.18mm)
Loading…
↗
45
6884556740
UR
Shim (t:0.30mm)
Loading…
↗
45
6884556750
UR
Shim (t:0.40mm)
Loading…
↗
45
6884556760
UR
Shim (t:0.50mm)
Loading…
↗
46
9339999967
Bearing
Loading…
↗
47
9021435M07
Washer, claw
Loading…
↗
48
9017035M34
Nut
Loading…
↗
49
6GR4550100
UR X(25.2")
Drive shaft comp.
Loading…
↗
49
6GR4550110
UR U(30.2")
Drive shaft comp.
Loading…
↗
49
6GR4550120
UR E(35.2")
Drive shaft comp.
Loading…
↗
50
6GR4553900
Spacer 2
Loading…
↗
51
6GR4524400
Nut
Loading…
↗
