Z250FETO (2006)
LOWER CASING & DRIVE 1

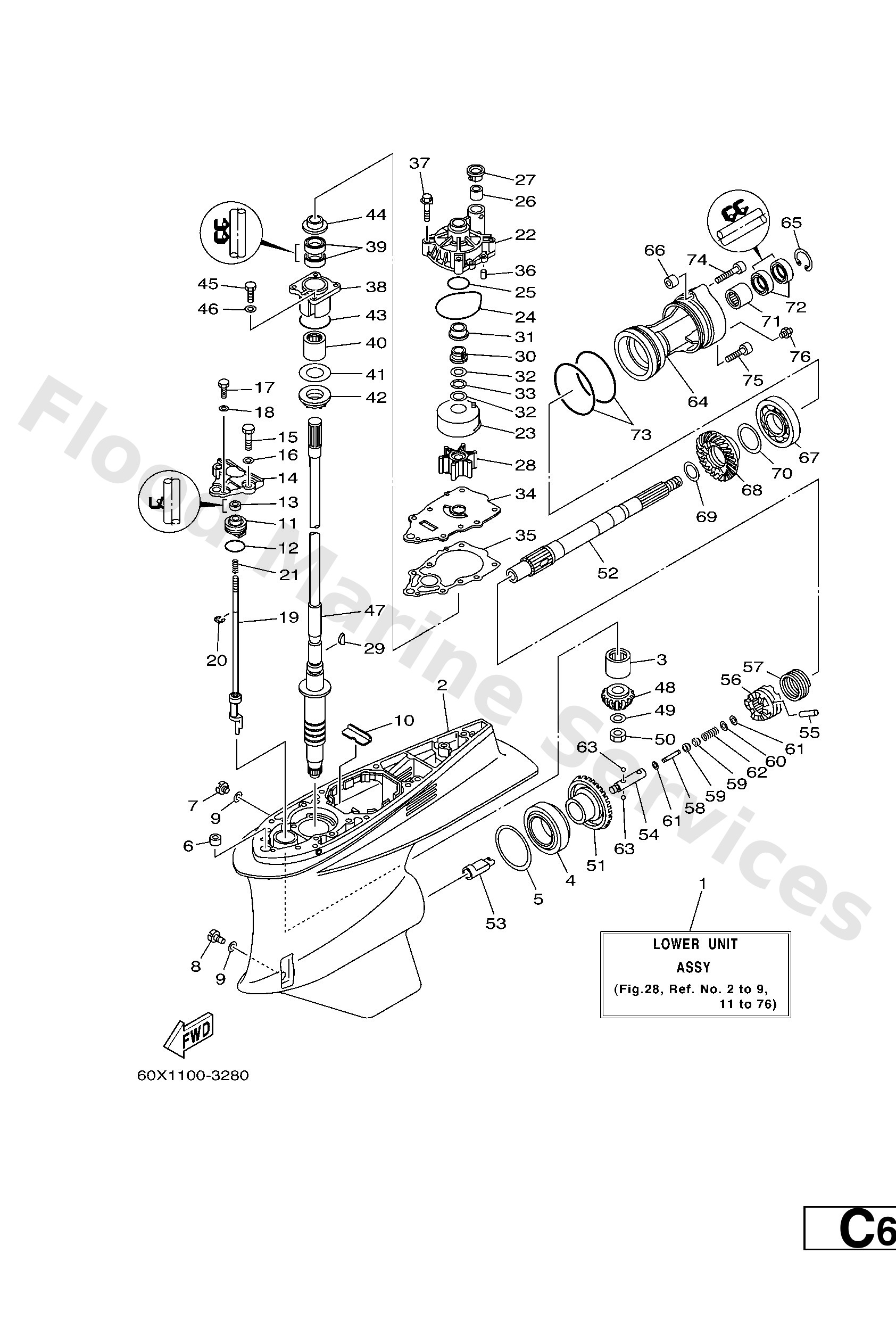

Diagram: LOWER CASING & DRIVE 1
Parts List
Reference
Description
Price
1
60X4530010NA
Lower unit assy
Loading…
↗
2
60X4531100NA
Casing, lower
Loading…
↗
3
9331183280
-
Loading…
↗
4
93332000W1
Bearing(61a)
Loading…
↗
5
61A4556700
UR
Shim (t:0.10mm)
Loading…
↗
5
61A4556710
UR
Shim (t:0.12mm)
Loading…
↗
5
61A4556720
UR
Shim (t:0.15mm)
Loading…
↗
5
61A4556730
UR
Shim (t:0.18mm)
Loading…
↗
5
61A4556740
UR
Shim (t:0.30mm)
Loading…
↗
5
61A4556750
UR
Shim (t:0.40mm)
Loading…
↗
5
61A4556760
UR
Shim (t:0.50mm)
Loading…
↗
6
6634436600
Damper, water seal 2
Loading…
↗
7
9034008002
Plug, Straight Screw
Loading…
↗
8
6884534110
Plug, drain
Loading…
↗
9
9043008020
Gasket
Loading…
↗
10
61A453760094
Guide, seal damper
Loading…
↗
11
65N4532100
Plate
Loading…
↗
12
9321033M49
-
Loading…
↗
13
9310609014
Oil Seal
Loading…
↗
14
60X4431200
Cover, water pump housing
Loading…
↗
15
9709508030
Bolt, hexagon (fj1)
Loading…
↗
16
9299508600
Washer
Loading…
↗
17
9709506016
Bolt
Loading…
↗
18
9299506600
Washer
Loading…
↗
19
60X4415000
Shift cam assy
Loading…
↗
20
9900108600
Circlip
Loading…
↗
21
9050111M10
Spring, compression (663)
Loading…
↗
22
61A4431101
Housing, water pump
Loading…
↗
23
61A4432202
Insert, cartridge
Loading…
↗
24
9321086M38
O-ring (6e5)
Loading…
↗
25
9321037160
-
Loading…
↗
26
6E54436500
Damper, water seal 1
Loading…
↗
27
6E54431200
Cover, water pump housing
Loading…
↗
28
6E54435201
Impeller
Loading…
↗
29
9028004M05
Key, woodruff (6e5)
Loading…
↗
30
61A4553800
Spacer, 1
Loading…
↗
31
61A4552700
Collar, drive shaft
Loading…
↗
32
9020122M01
Washer, plate(61a)
Loading…
↗
33
9020622M19
Washer, wave(61a)
Loading…
↗
34
60X4432300
Outer plate, cartridge
Loading…
↗
35
60X44315A0
Gasket, water pump
Loading…
↗
36
9360612019
Pin, Dowel
Loading…
↗
37
9011908M14
-
Loading…
↗
38
61A453310094
Housing, bearing
Loading…
↗
39
9310128M16
Oil Seal
Loading…
↗
40
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
41
61A4558760
UR
Shim (t:0.50mm)
Loading…
↗
41
61A4558710
UR
Shim (t:0.12mm)
Loading…
↗
41
61A4558750
UR
Shim (t:0.40mm)
Loading…
↗
41
61A4558740
UR
Shim (t:0.30mm)
Loading…
↗
41
61A4558720
UR
Shim (t:0.15mm)
Loading…
↗
41
61A4558730
UR
Shim (t:0.18mm)
Loading…
↗
41
61A4558700
UR
Shim (t:0.10mm)
Loading…
↗
42
93341930U9
Bearing
Loading…
↗
43
9321055M14
O-ring (70e)
Loading…
↗
44
6E54534400
Cover, oil seal
Loading…
↗
45
9709508025
Bolt (62g)
Loading…
↗
47
60X4550110
Drive shaft comp.
Loading…
↗
48
60X4555100
Pinion
Loading…
↗
49
9020116M00
Washer, Plate
Loading…
↗
50
9017016M19
-
Loading…
↗
51
60X4556000
Gear
Loading…
↗
52
60V4561100
Shaft, propeller
Loading…
↗
53
61A4564102
Shifter
Loading…
↗
54
61A4563401
Slide, shift
Loading…
↗
55
61A4563200
Pin, cross
Loading…
↗
56
60V4563100
Clutch, dog
Loading…
↗
57
61A4563300
Ring, cross pin
Loading…
↗
58
6H14566800
-
Loading…
↗
59
61A4563500
Plunger, shift
Loading…
↗
60
9020102M00
Washer, Plate
Loading…
↗
61
9018302M03
Nut, Spring
Loading…
↗
62
9050110M77
Spring, Compression
Loading…
↗
63
9350104011
Ball
Loading…
↗
64
60X453320094
Housing, bearing
Loading…
↗
65
9345045M02
Circlip(6t5)
Loading…
↗
66
9959014016
Pin, dowel(4jt)
Loading…
↗
67
93306210U0
Bearing(61a)
Loading…
↗
68
69L4557100
Gear
Loading…
↗
69
9020131M00
Washer, plate(61a)
Loading…
↗
70
61A4557720
UR
Shim (t:0.15mm)
Loading…
↗
70
61A4557760
UR
Shim (t:0.50mm)
Loading…
↗
70
61A4557750
UR
Shim (t:0.40mm)
Loading…
↗
70
61A4557740
UR
Shim (t:0.30mm)
Loading…
↗
70
61A4557730
UR
Shim (t:0.18mm)
Loading…
↗
70
61A4557710
UR
Shim (t:0.12mm)
Loading…
↗
70
61A4557700
UR
Shim (t:0.10mm)
Loading…
↗
71
9331543061
-
Loading…
↗
72
9310130002
Oil seal
Loading…
↗
73
9321104384
O-ring (705)
Loading…
↗
74
9011010006
Bolt, hexagon socket head
Loading…
↗
75
9011008030
Bolt, hexagon socket head
Loading…
↗
76
9370009M00
Nipple, grease(6t4)
Loading…
↗
