115CETO (2011)
LOWER CASING & DRIVE 2

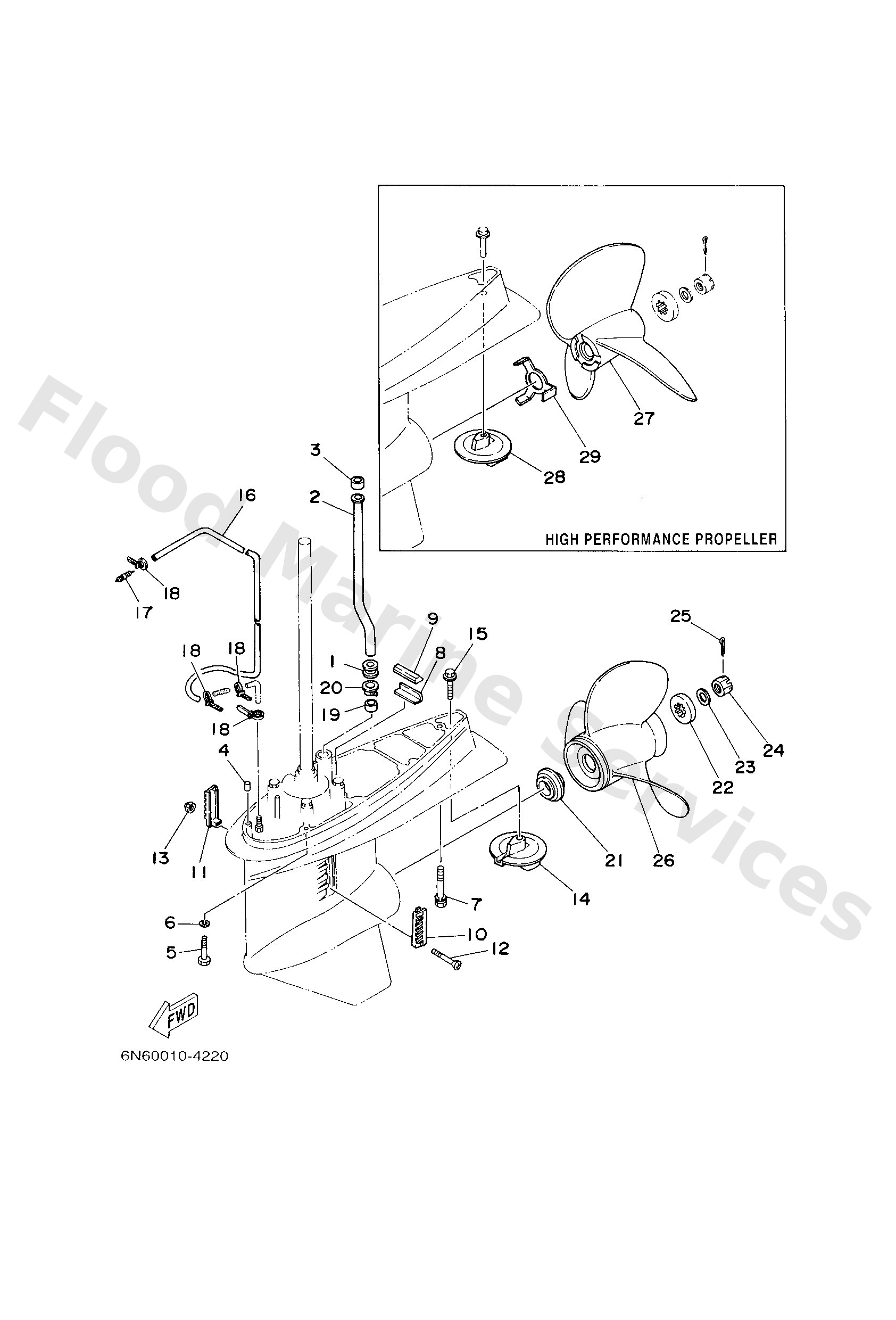

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
6E54436100
L(20.3")
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9707510045
Bolt(64d)
Loading…
↗
6
9299510100
Ybs67-10 washer, spring
Loading…
↗
7
9011910M89
Bolt, with washer
Loading…
↗
8
6634537600
Guide, seal damper
Loading…
↗
9
6884537500
Damper, seal 2
Loading…
↗
10
6884521402
Cover, water inlet
Loading…
↗
11
6884521502
Cover, water inlet
Loading…
↗
12
9015205M07
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6E54537101
Trim tab
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
9044507MF0
Hose (l1160)
Loading…
↗
17
6E58355800
End, nipple
Loading…
↗
18
9046511M10
Clamp
Loading…
↗
20
6E54431200
Cover, water pump housing
Loading…
↗
21
6E54598701
Spacer 1
Loading…
↗
22
6884599701
Spacer 2
Loading…
↗
23
9299018200
Washer (6e5)
Loading…
↗
24
9017118M04
Nut, castle (6e5)
Loading…
↗
25
9149040030
Pin, cotter (663)
Loading…
↗
26
6E54594100EL
UR
Propeller (3x13x19-k)
Loading…
↗
26
6E54594300EL
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
26
688459700398
UR
Propeller (3x13"x19"-k)
Loading…
↗
26
688459786098
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
26
688459760198
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
26
688459740298
UR
Propeller (3x13"x23"-k)
Loading…
↗
26
688459720298
UR
Propeller (3x13"x21"-k)
Loading…
↗
26
688459326098
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
26
688459300298
UR
Propeller (3x13x17)
Loading…
↗
26
6E54595600EL
UR
Propeller (3x13"x25"-k)
Loading…
↗
26
6E54595400EL
UR
Propeller (3x14"x11"-k)
Loading…
↗
26
6E54595200EL
UR
Propeller (3x13"x23"-k)
Loading…
↗
26
6E54594900EL
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
26
6E54594700EL
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
26
6E54594501EL
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
27
6E54597010
UR
Propeller (ss 3x14"x20"-p)
Loading…
↗
27
6E54597210
UR
Propeller (ss 3x14"x24"-p)
Loading…
↗
27
6E54597410
UR
Propeller (ss 3x14"x28"-p)
Loading…
↗
27
6E54597610
UR
Propellar assembly (3x14"x22"-p)
Loading…
↗
27
6E54597810
UR
Propeller assembly (3x14"x26"-p)
Loading…
↗
28
6E54537110
Tab-trim
Loading…
↗
29
6E54599410
Plate, tooth
Loading…
↗
