25BMH (2007)
LOWER CASING & DRIVE 2

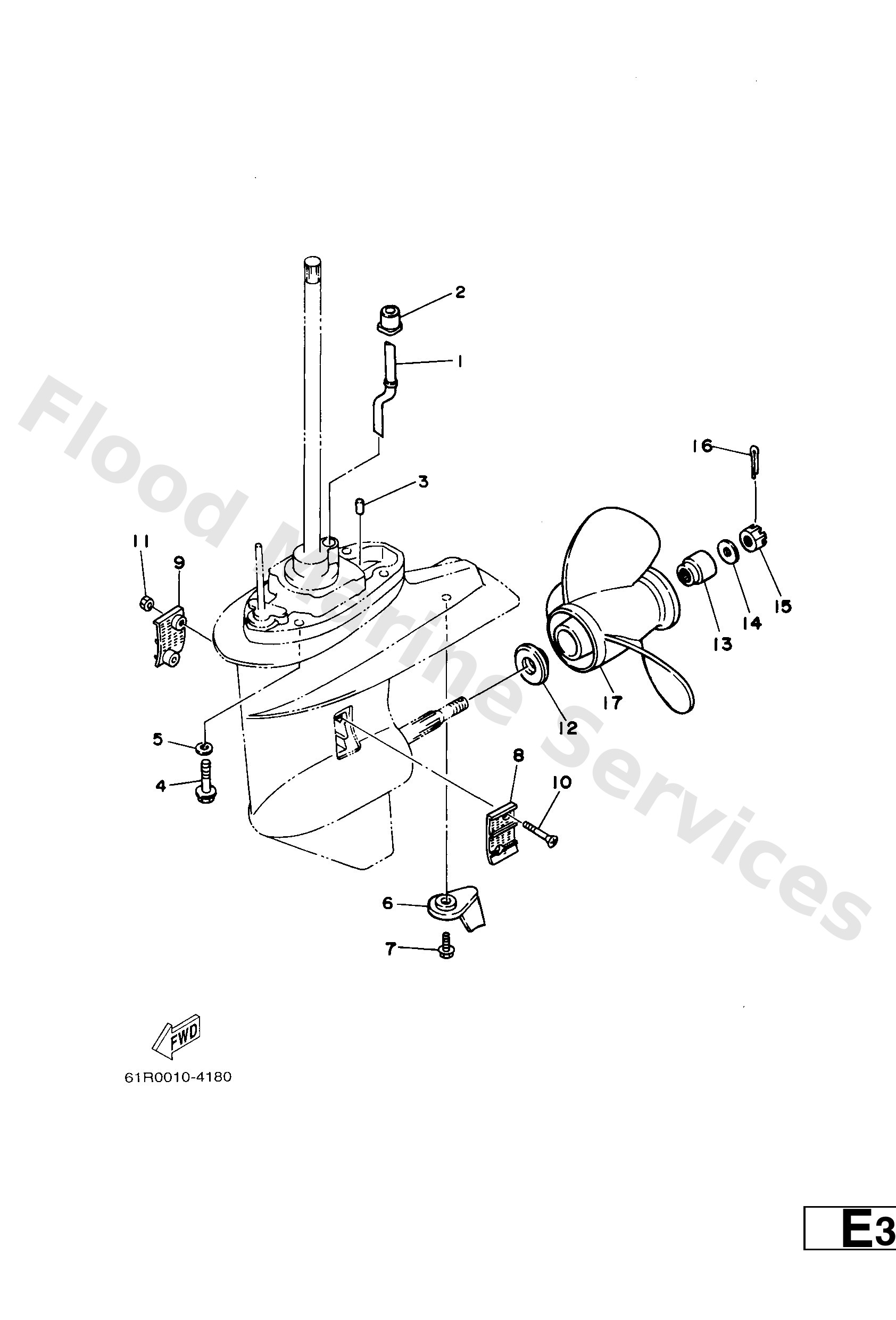

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
61N4436110
L(21.6")
Tube, water
Loading…
↗
1
61N4436100
S(16.7")
Tube, water
Loading…
↗
2
6894436600
Damper, water seal 2
Loading…
↗
3
9360611M24
Pin, dowel
Loading…
↗
4
9010510M12
Bolt (689)
Loading…
↗
5
9299510600
Washer, plate
Loading…
↗
6
61N4537100
Tab-trim
Loading…
↗
7
9011906M48
Bolt, with washer(61n)
Loading…
↗
8
6L24521400
Cover, water inlet
Loading…
↗
9
6L24521500
Cover, water inlet
Loading…
↗
10
9015105M05
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6L24598701
Spacer
Loading…
↗
13
6894599700
Spacer
Loading…
↗
14
9299014200
Washer, plain
Loading…
↗
15
9017114013
Nut(664)
Loading…
↗
16
9149030022
Pin, cotter
Loading…
↗
17
6644594101EL
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
17
6644594301EL
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
17
6644594500EL
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
17
6644594701EL
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
17
6644594902EL
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
17
6644595200EL
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
17
6644595401EL
UR
Propeller (3x9-7/8 x12 -f)
Loading…
↗
17
62C4594100EL
UR
Propeller (3x9-7/8 x10 -f)
Loading…
↗
