25NMHO (2010)
LOWER CASING & DRIVE 2

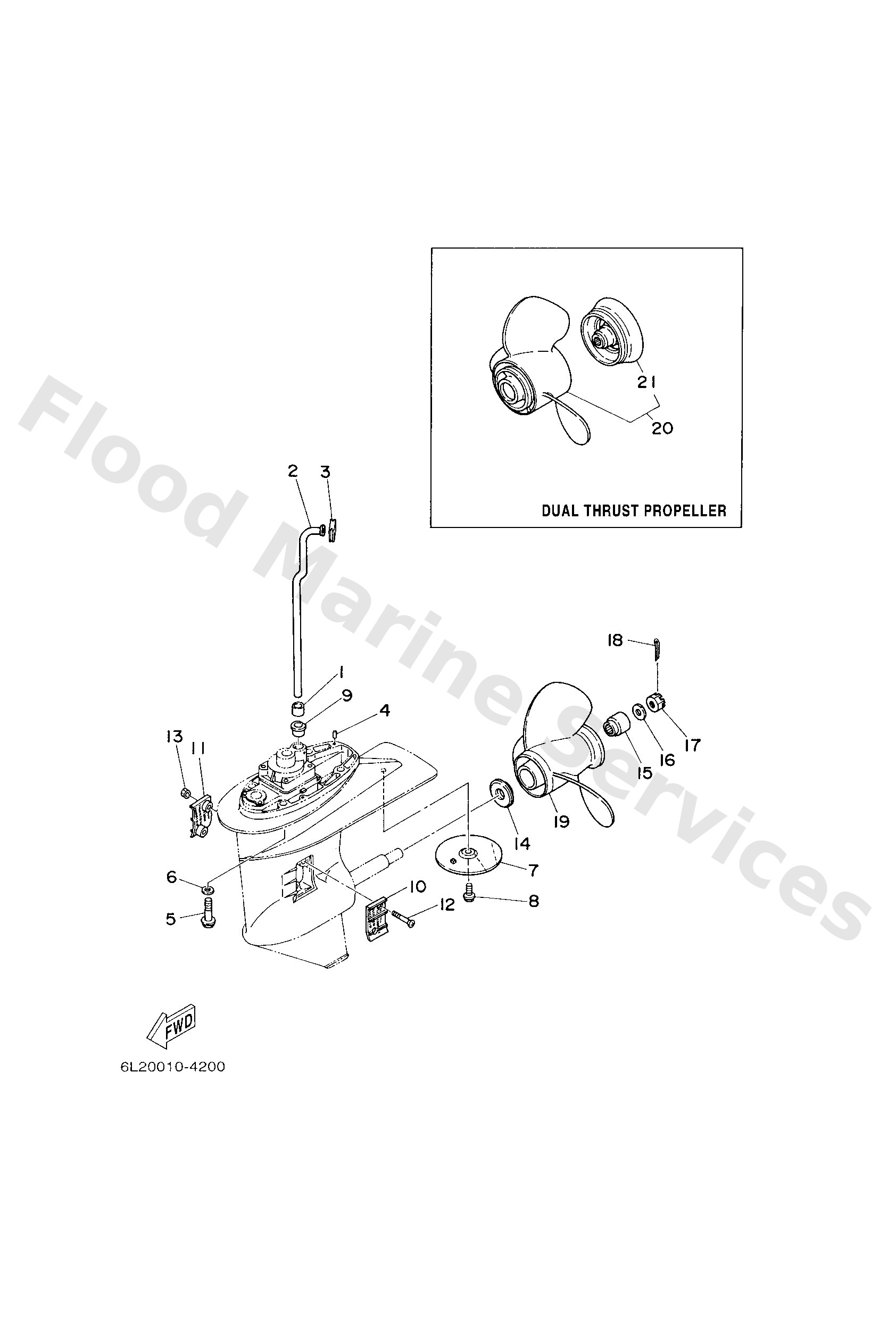

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6L24436800
Rubber, water seal 4
Loading…
↗
2
6L24436100
S(16.5")
Tube, water
Loading…
↗
2
6L24436110
L(21.5")
Tube, water
Loading…
↗
3
6L24436600
Damper, water seal 2
Loading…
↗
4
9360412M07
Pin, dowel (688)
Loading…
↗
5
9010510M12
Bolt (689)
Loading…
↗
6
9299510600
Washer, plate
Loading…
↗
7
6644537101
Tab-trim
Loading…
↗
8
9010508M02
Bolt hexagon
Loading…
↗
9
6L24436700
Damper, water seal 3
Loading…
↗
10
6L24521400
Cover, water inlet
Loading…
↗
11
6L24521500
Cover, water inlet
Loading…
↗
12
9015105M05
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6L24598701
Spacer
Loading…
↗
15
6894599700
Spacer
Loading…
↗
16
9299014200
Washer, plain
Loading…
↗
17
9017114013
Nut(664)
Loading…
↗
18
9149030022
Pin, cotter
Loading…
↗
19
6644594101EL
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
19
6644594301EL
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
19
6644594500EL
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
19
6644594701EL
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
19
6644594902EL
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
19
6644595200EL
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
19
6644595401EL
UR
Propeller (3x9-7/8 x12 -f)
Loading…
↗
19
664459700098
UR
Propeller (3x9-1/8 x13 -f)
Loading…
↗
19
664459720098
UR
Propeller (3x9-1/8 x12 -f)
Loading…
↗
20
6J8W459100EL
Propeller (3x10-5/8"x8-1/4"-f)
Loading…
↗
21
6J8459861098
Ring, deflector
Loading…
↗
