30DMHO (2012)
LOWER CASING & DRIVE 2

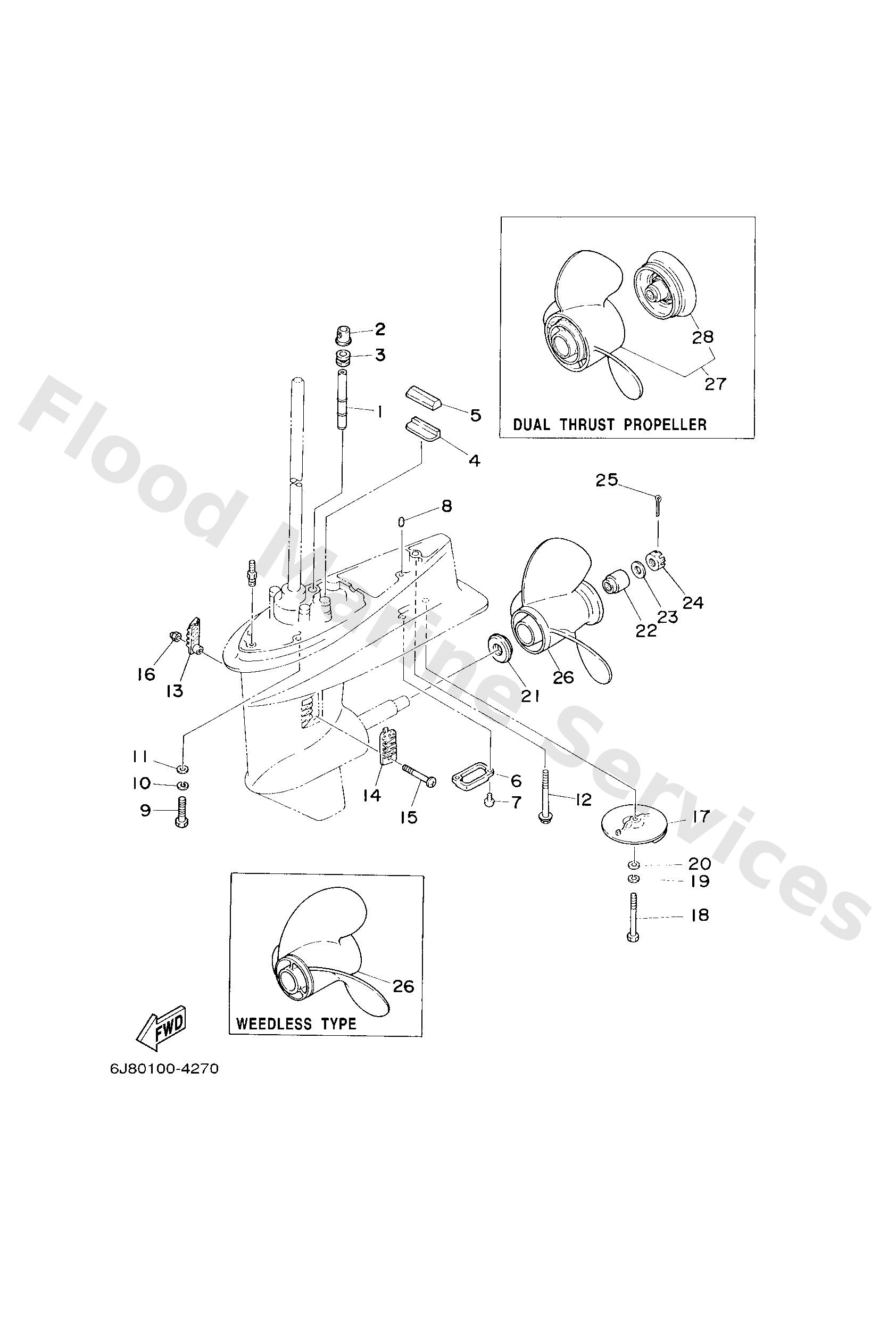

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6J84436110
L(21.5")
Tube, water
Loading…
↗
1
6J84436100
S(16.7")
Tube, water
Loading…
↗
2
6J84436600
Damper, water seal
Loading…
↗
3
6634436700
Damper, water seal 3
Loading…
↗
4
6634537600
Guide, seal damper
Loading…
↗
5
6884537500
Damper, seal 2
Loading…
↗
6
6J84522410
Cover, water inlet 3
Loading…
↗
7
9788006012
Screw, pan head(62j)
Loading…
↗
8
9360612019
Pin, dowel (614)
Loading…
↗
9
9707510040
Bolt, hexagon deep recess
Loading…
↗
10
9299510100
Ybs67-10 washer, spring
Loading…
↗
11
9299510600
Washer, plate
Loading…
↗
12
9757508685
Bolt, with washer
Loading…
↗
13
6894521401
Cover, water inlet 1
Loading…
↗
14
6J84521500
Cover, water inlet
Loading…
↗
15
9015205011
Screw, countersunk
Loading…
↗
16
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
17
6644537101
Tab-trim
Loading…
↗
18
9707508020
Bolt, hexagon
Loading…
↗
19
9299508100
Ybs67-8 washer, spring
Loading…
↗
20
9299508600
Washer, plain (663)
Loading…
↗
21
6L24598701
Spacer
Loading…
↗
22
6894599700
Spacer
Loading…
↗
23
9299014200
Washer, plain
Loading…
↗
24
9017114013
Nut(664)
Loading…
↗
25
9149030022
Pin, cotter
Loading…
↗
26
6644594101
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
26
6644597000
UR WEEDLESS
Propeller (3x9-1/8 x13 -f)
Loading…
↗
26
6644595401
UR
Propeller (3x9-7/8 x12 -f)
Loading…
↗
26
6644595200
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
26
6644594902
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
26
6644594701
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
26
6644594500
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
26
6644594301
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
27
6J8W459100
Propeller (3x10-5/8"x8-1/4"-f)
Loading…
↗
28
6J84598610
Ring, deflector
Loading…
↗
