40XMH (2018)
LOWER CASING & DRIVE 2

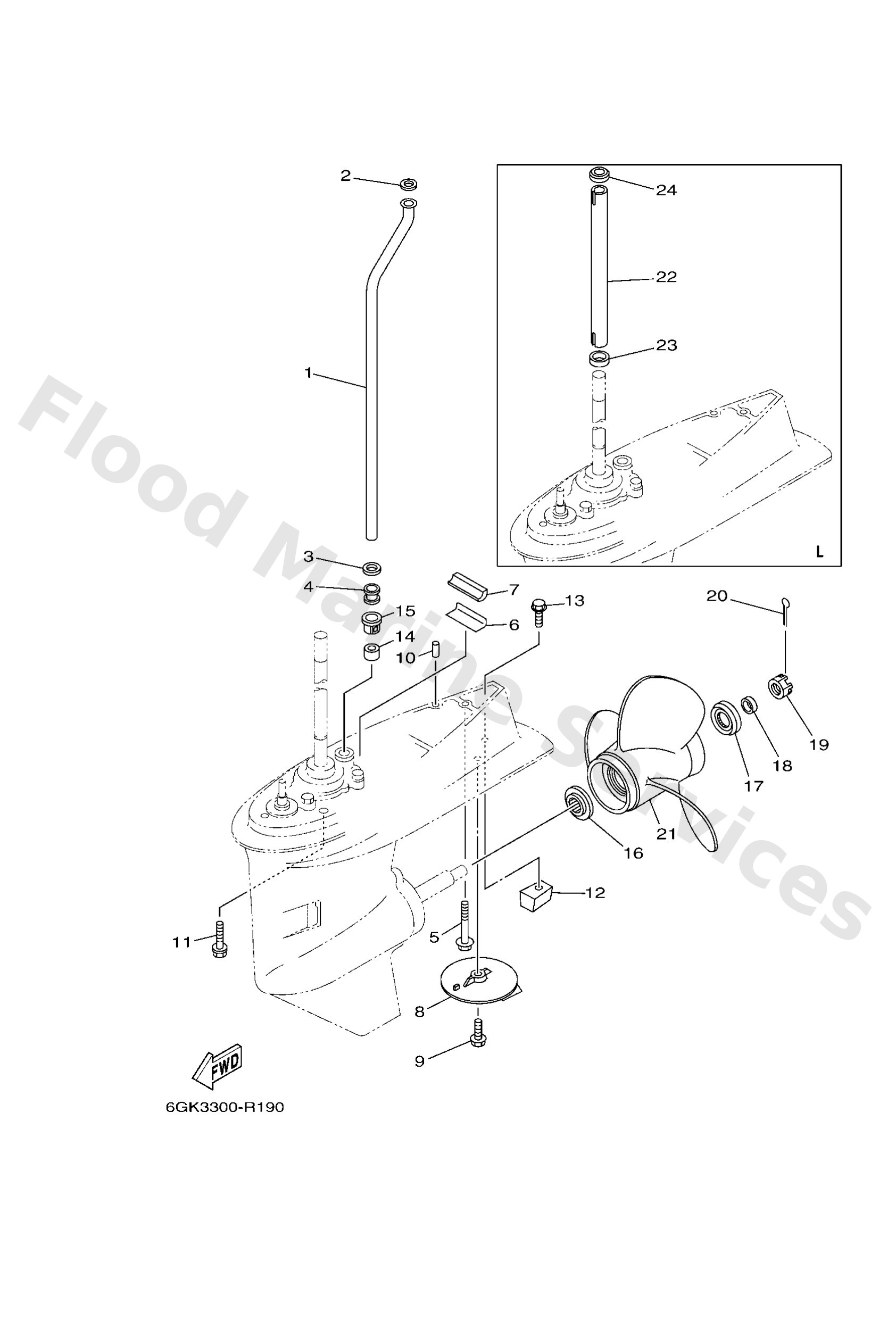

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
66T4436110
L(21.7")
Tube, water
Loading…
↗
2
9020212060
Washer, plate(663)
Loading…
↗
3
9043012072
Gasket
Loading…
↗
4
6634436700
Damper, water seal 3
Loading…
↗
5
9757508565
L(21.7")
Bolt, hexagon w/w deep recess
Loading…
↗
6
6634537600
Guide, seal damper
Loading…
↗
7
63D4537500
Damper, seal
Loading…
↗
8
6644537101
Tab-trim
Loading…
↗
9
9759508525
Bolt, hexagon deep recess
Loading…
↗
10
9360612019
Pin, dowel (614)
Loading…
↗
11
9757510640
L(21.7")
Bolt, hexagon w/w deep recess
Loading…
↗
12
67C4525100
Anode
Loading…
↗
13
9759508535
Bolt, hexagon w/w deep recess
Loading…
↗
14
6634436600
Damper, water seal 2
Loading…
↗
15
63D4431200
Cover, water pump housing
Loading…
↗
16
6634598702
Spacer
Loading…
↗
17
66T4599700
Spacer 2
Loading…
↗
18
9038922M01
Bush
Loading…
↗
19
9017116011
Nut, castle (663)
Loading…
↗
20
9149030025
Pin cotter
Loading…
↗
21
63D4594100
UR
Propeller (3x12-1/4 x8 -g)
Loading…
↗
21
69W4595200
UR
Propeller (3x11-3/8 x12 -g)
Loading…
↗
21
6634595202
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
21
6634597260
UR
Propeller (3x12"x11"-g)
Loading…
↗
21
6634595401
UR
Propeller (3x11-3/4"x10"-g)
Loading…
↗
21
6634595601
UR
Propeller (3x12-1/4"x9"-g)
Loading…
↗
21
69W4594700
UR
Prop assembly (3x11-5/8"x11"-g)
Loading…
↗
21
69W4595800
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
21
6634594101
UR
Propeller (3x10-3/4"x17"-g)
Loading…
↗
21
6634597800
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
21
6634594901
UR
Propeller (3x10-3/4"x16"-g)
Loading…
↗
21
6634597600
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
21
69W4594300
UR
Propeller (3x11 x15 -g)
Loading…
↗
21
6634595801
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
21
6634593000
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
21
6634597460
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
21
69W4594500
UR
Propeller (3x11-1/8"x13"-g)
Loading…
↗
21
6634597060
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
22
66T4436230
L(21.7")
Tube, water 2
Loading…
↗
23
9048025M70
L(21.7")
Grommet
Loading…
↗
24
9048030M71
L(21.7")
Grommet
Loading…
↗
