6DMH (2007)
LOWER CASING & DRIVE 2

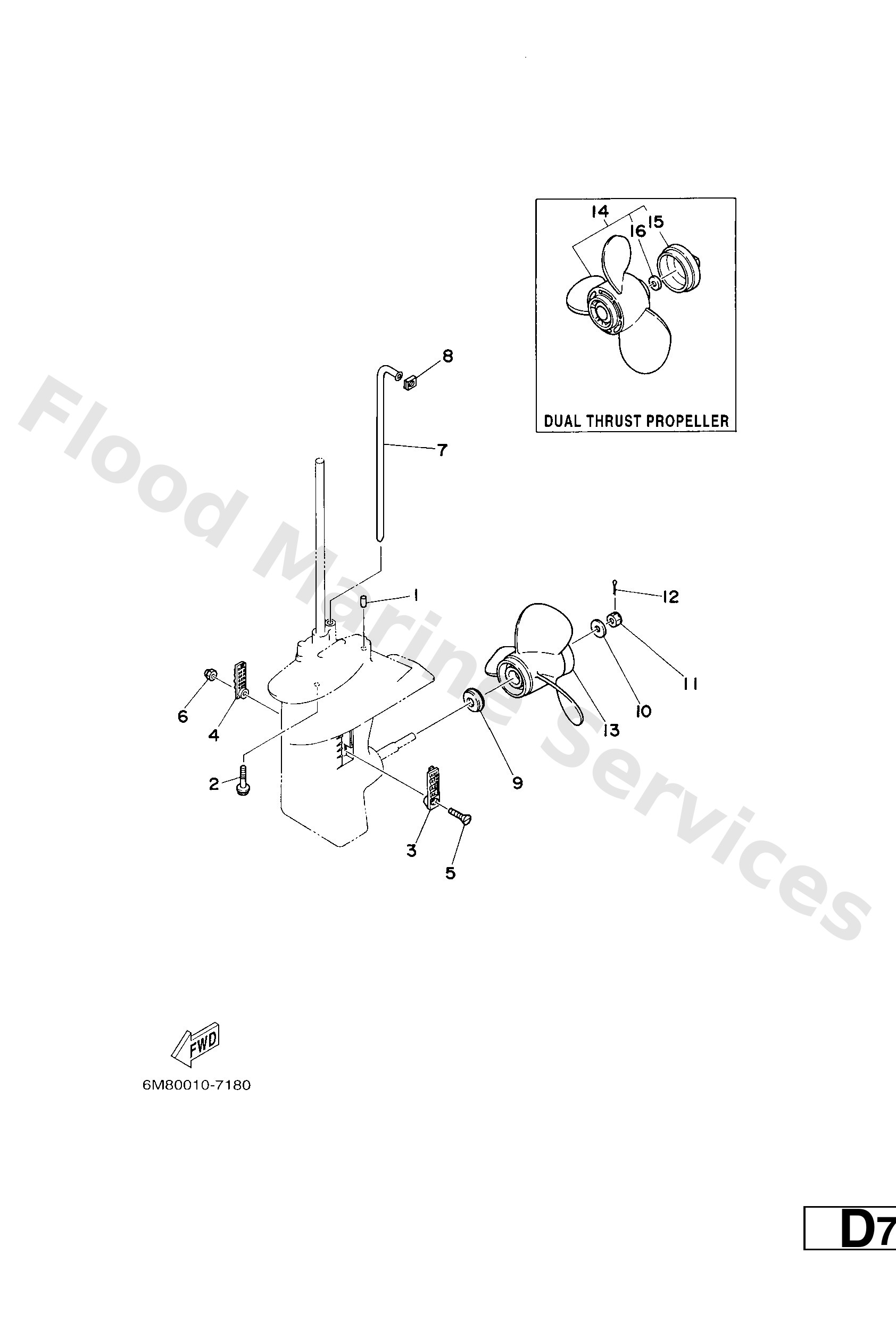

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
9360408062
Pin,dowel (626)
Loading…
↗
2
9589506030
Bolt, flange deep recess
Loading…
↗
3
6G14521400
Cover, water inlet
Loading…
↗
4
6G14521500
Cover, water inlet
Loading…
↗
5
9015205M03
Screw, countersunk
Loading…
↗
6
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
7
6N0G436100
S(17.2")
Tube, water 1
Loading…
↗
7
6N0G436110
L(22.2")
Tube, water 1
Loading…
↗
8
6G14436500
Damper, water seal 1
Loading…
↗
9
6N0G598710
UR
Spacer
Loading…
↗
9
6N0G598700
UR
Spacer
Loading…
↗
10
9020110M01
Washer, plate(6m7)
Loading…
↗
11
9017110M01
Nut castle (683)
Loading…
↗
12
9149030020
Pin cotter
Loading…
↗
13
6G14594100EL
UR
Propeller (3x8-1/2"x8-1/2"-n)
Loading…
↗
13
6G14594300EL
UR
Propeller (3x8-1/2 x7-1/2 -n)
Loading…
↗
13
6G14594700EL
UR
Propeller (3x8-1/2"x6-1/2"-n)
Loading…
↗
14
6G1W459101EL
UR
Propeller (3x9 x7 -n)
Loading…
↗
14
6G1W459200EL
UR
Propeller (3x9 x5 -n)
Loading…
↗
15
6G14561601
Nut, propeller
Loading…
↗
16
9020110M02
Washer, plate(6g9)
Loading…
↗
