75CETO (2006)
LOWER CASING & DRIVE 2

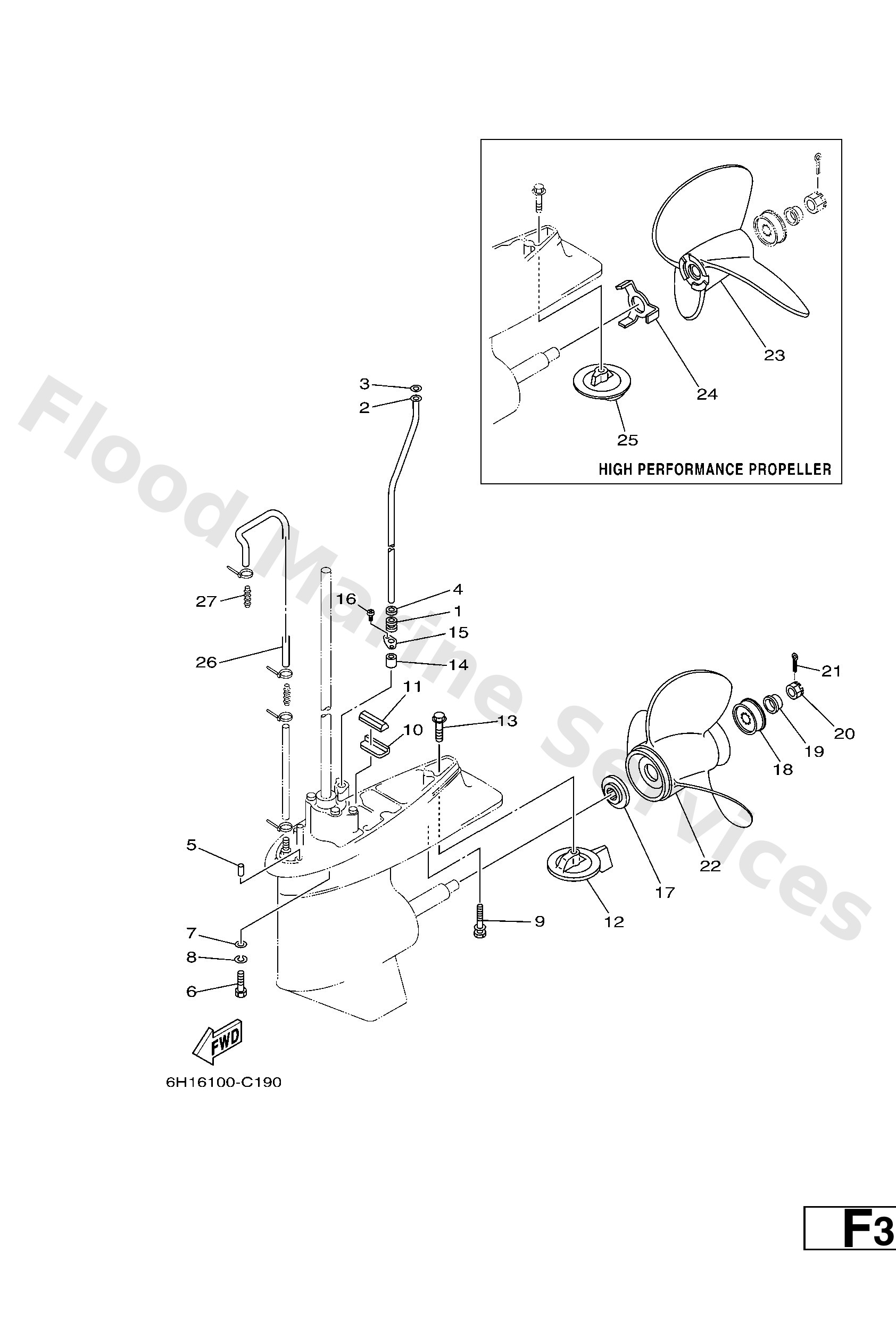

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6634436700
Damper, water seal 3
Loading…
↗
2
6884436110
L (20.3")
Tube, water 1
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
9360612019
L (20.3")
Pin, dowel (614)
Loading…
↗
6
9707510040
L (20.3")
Bolt, hexagon deep recess
Loading…
↗
7
9299010600
Washer, plate
Loading…
↗
8
9299010100
Ybs67-10 washer, spring
Loading…
↗
9
9011908M84
L (20.3")
Bolt, with washer
Loading…
↗
10
663453760094
Guide, seal damper
Loading…
↗
11
6884537500
Damper, seal 2
Loading…
↗
12
6884537102
Tab-trim
Loading…
↗
13
9010510M67
Bolt, hexagon (663)
Loading…
↗
14
6634436600
Damper, water seal 2
Loading…
↗
15
9048019M06
Grommet (688)
Loading…
↗
16
9778040512
Screw, pan head tapping
Loading…
↗
17
6884598701
Spacer
Loading…
↗
18
67F4599700
Spacer 2
Loading…
↗
19
9038925M00
Bush
Loading…
↗
20
9017116011
Nut, castle (663)
Loading…
↗
21
9149040025
Pin, cotter (663)
Loading…
↗
22
6E54595200EL
UR
Propeller (3x13"x23"-k)
Loading…
↗
22
6E54594300EL
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
22
6E54594900EL
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
22
6E54594501EL
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
22
6E54594100EL
UR
Propeller (3x13x19-k)
Loading…
↗
22
6E54594700EL
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
22
688459326098
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
22
688459786098
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
22
688459760198
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
22
688459740298
UR
Propeller (3x13"x23"-k)
Loading…
↗
22
688459720298
UR
Propeller (3x13"x21"-k)
Loading…
↗
22
688459700398
UR
Propeller (3x13"x19"-k)
Loading…
↗
22
688459300298
UR
Propeller (3x13x17)
Loading…
↗
22
6E54595600EL
UR
Propeller (3x13"x25"-k)
Loading…
↗
22
6E54595400EL
UR
Propeller (3x14"x11"-k)
Loading…
↗
23
6E54597010
UR
Propeller (ss 3x14"x20"-p)
Loading…
↗
23
6E54597210
UR
Propeller (ss 3x14"x24"-p)
Loading…
↗
23
6E54597410
UR
Propeller (ss 3x14"x28"-p)
Loading…
↗
23
6E54597610
UR
Propellar assembly (3x14"x22"-p)
Loading…
↗
23
6E54597810
UR
Propeller assembly (3x14"x26"-p)
Loading…
↗
24
6E54599410
Plate, tooth
Loading…
↗
25
6E54537110
Tab-trim
Loading…
↗
26
9044507MF1
Hose (l570)
Loading…
↗
27
6E58355800
End, nipple
Loading…
↗
