9.9FMH (2009)
LOWER CASING & DRIVE 2

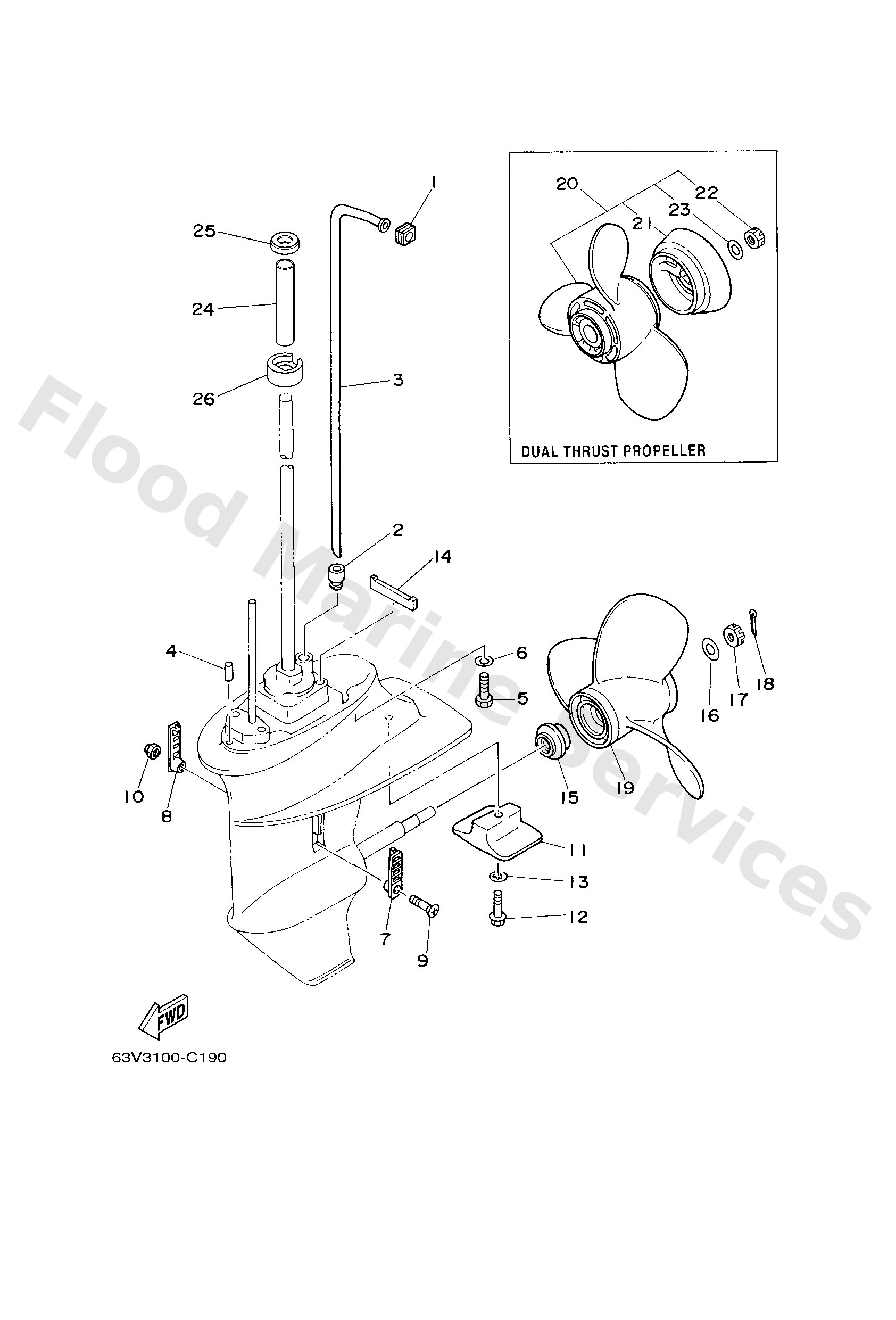

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
63V4436510
Damper, water seal 1
Loading…
↗
2
63V4436800
Rubber, water seal 4
Loading…
↗
3
63V4436111
L(22.3")
Tube, water
Loading…
↗
3
63V4436101
S(17.3")
Tube, water
Loading…
↗
4
9360412M07
Pin, dowel (688)
Loading…
↗
5
9707508030
Bolt, hexagon (fj1)
Loading…
↗
6
9299508600
Washer, plain (663)
Loading…
↗
7
6G14521400
Cover, water inlet
Loading…
↗
8
63V4521500
Cover, water inlet
Loading…
↗
9
9015205M04
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
61N4525101
Anode
Loading…
↗
12
9589506030
Bolt, flange deep recess
Loading…
↗
13
9299006300
Washer, tooth
Loading…
↗
14
63V4537500
Damper, seal
Loading…
↗
15
6E74598701
Spacer
Loading…
↗
16
9020110M01
Washer, plate(6m7)
Loading…
↗
17
9017110M01
Nut castle (683)
Loading…
↗
18
9149030020
Pin cotter
Loading…
↗
19
6834594300EL
UR
Propeller (3x9-1/4"x10-1/2"-j)
Loading…
↗
19
6834594500EL
UR
Propeller (3X9–1/4”X9”–J)
Loading…
↗
19
6834594700EL
UR
Propeller (3X9-1/4"X8"-J)
Loading…
↗
19
6834594900EL
UR
Propeller (3x9-1/2"x6-1/2"-j)
Loading…
↗
19
6834595200EL
UR
プロペラ (3X9-1/4X9-3/4-J)
Loading…
↗
19
63V4594310EL
UR
Propeller (3x9-1/4 x11 -j1)
Loading…
↗
19
63V4594510EL
UR
Propeller (3x9-1/4 x9 -j1)
Loading…
↗
19
6834594100EL
UR
Propeller (3x9-1/4"x12"-j)
Loading…
↗
19
63V4595210EL
UR
Propeller (3x9-1/4 x10 -j1)
Loading…
↗
19
63V4594700EL
UR
Propeller (3x9-1/4 x8 -j)
Loading…
↗
20
683W459102EL
UR
Propeller (3x9-3/4 x8 -j)
Loading…
↗
20
683W459202EL
UR
Propeller (3x9-3/4"x6-1/2"-j)
Loading…
↗
21
6E74598600
Ring, deflector
Loading…
↗
22
9017110M07
Nut, castle(6g8)
Loading…
↗
23
9020110M02
Washer, plate(6g9)
Loading…
↗
24
63V4436200
L(22.3")
Tube, water 2
Loading…
↗
25
63V4437500
L(22.3")
Grommet, water tube 1
Loading…
↗
26
63V4437600
L(22.3")
Grommet, water tube 2
Loading…
↗
