9.9FMH (2021)
LOWER CASING & DRIVE 2

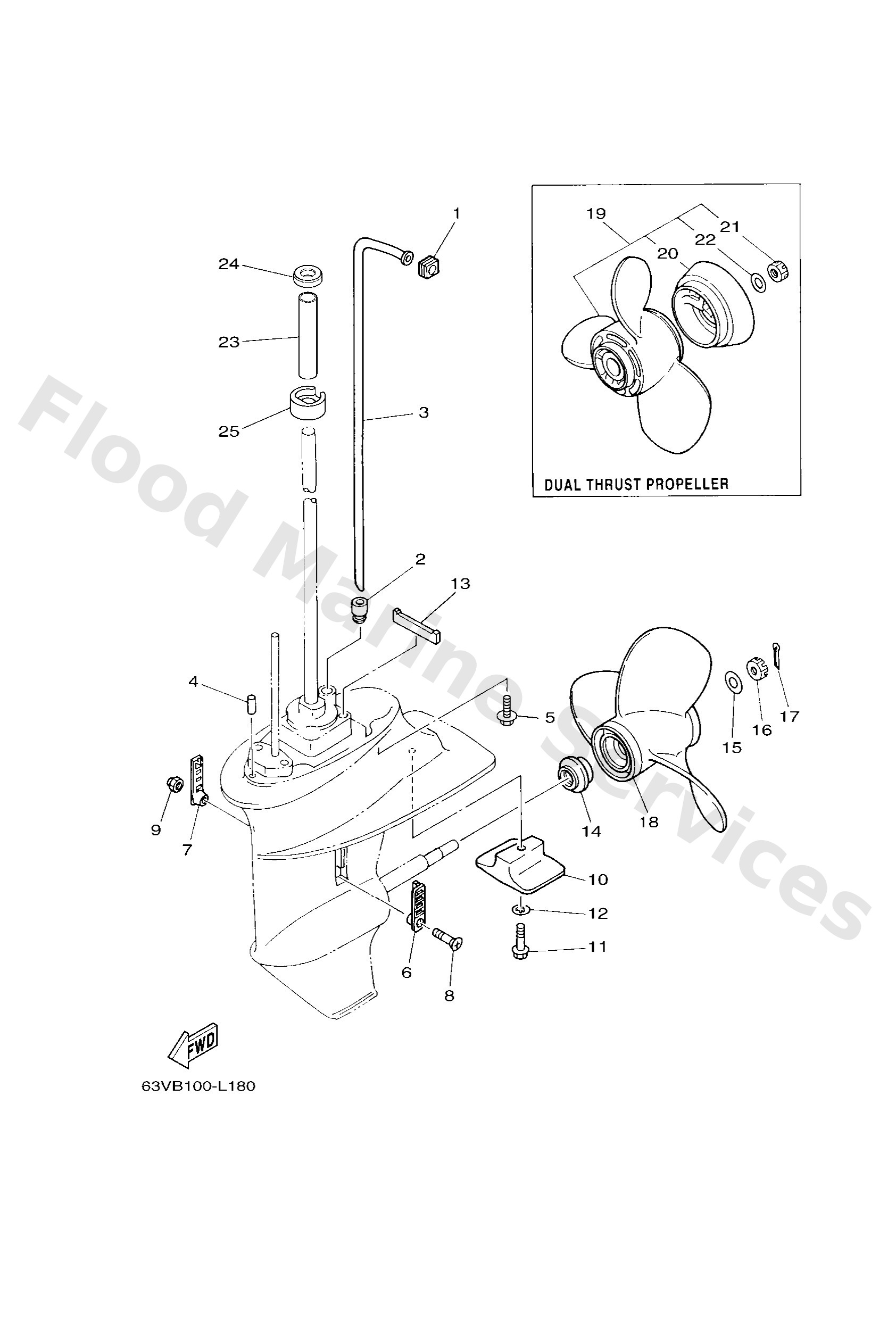

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
63V4436511
Damper, water seal 1
Loading…
↗
2
63V4436801
Rubber, water seal 4
Loading…
↗
3
63V4436101
S(17.3")
Tube, water
Loading…
↗
3
63V4436111
L(22.3")
Tube, water
Loading…
↗
4
9360412M07
Pin, dowel (688)
Loading…
↗
5
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
6
6G14521400
Cover, water inlet
Loading…
↗
7
63V4521500
Cover, water inlet
Loading…
↗
8
9015205011
Screw, countersunk
Loading…
↗
9
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
10
61N4525101
Anode
Loading…
↗
11
95D9506030
Bolt, flange deep recess
Loading…
↗
12
9299006300
Washer, tooth
Loading…
↗
13
63V4537500
Damper, seal
Loading…
↗
14
6E74598701
Spacer
Loading…
↗
15
9020110M01
Washer, plate(6m7)
Loading…
↗
16
9017110M01
Nut castle (683)
Loading…
↗
17
9149030025
Pin cotter
Loading…
↗
18
6834594900
UR
Propeller (3x9-1/2"x6-1/2"-j)
Loading…
↗
18
63V4594310
UR
Propeller (3x9-1/4 x11 -j1)
Loading…
↗
18
6834594300
UR
Propeller (3x9-1/4"x10-1/2"-j)
Loading…
↗
18
63V4595210
UR
Propeller (3x9-1/4 x10 -j1)
Loading…
↗
18
6834595200
UR
-
Loading…
↗
18
6834594500
UR
-
Loading…
↗
18
63V4594510
UR
Propeller (3x9-1/4 x9 -j1)
Loading…
↗
18
63V4594700
UR
Propeller (3x9-1/4 x8 -j)
Loading…
↗
18
6834594700
UR
-
Loading…
↗
18
6834594100
UR
Propeller (3x9-1/4"x12"-j)
Loading…
↗
19
683W459202
UR
Propeller (3x9-3/4"x6-1/2"-j)
Loading…
↗
19
683W459102
UR
Propeller (3x9-3/4 x8 -j)
Loading…
↗
20
6E74598600
Ring, deflector
Loading…
↗
21
9017110M07
Nut, castle(6g8)
Loading…
↗
22
9020110M02
Washer, plate(6g9)
Loading…
↗
23
63V4436200
L(22.3")
Tube, water 2
Loading…
↗
24
63V4437501
L(22.3")
Grommet, water tube 1
Loading…
↗
25
63V4437601
L(22.3")
Grommet, water tube 2
Loading…
↗
