90AETO (2018)
LOWER CASING & DRIVE 2

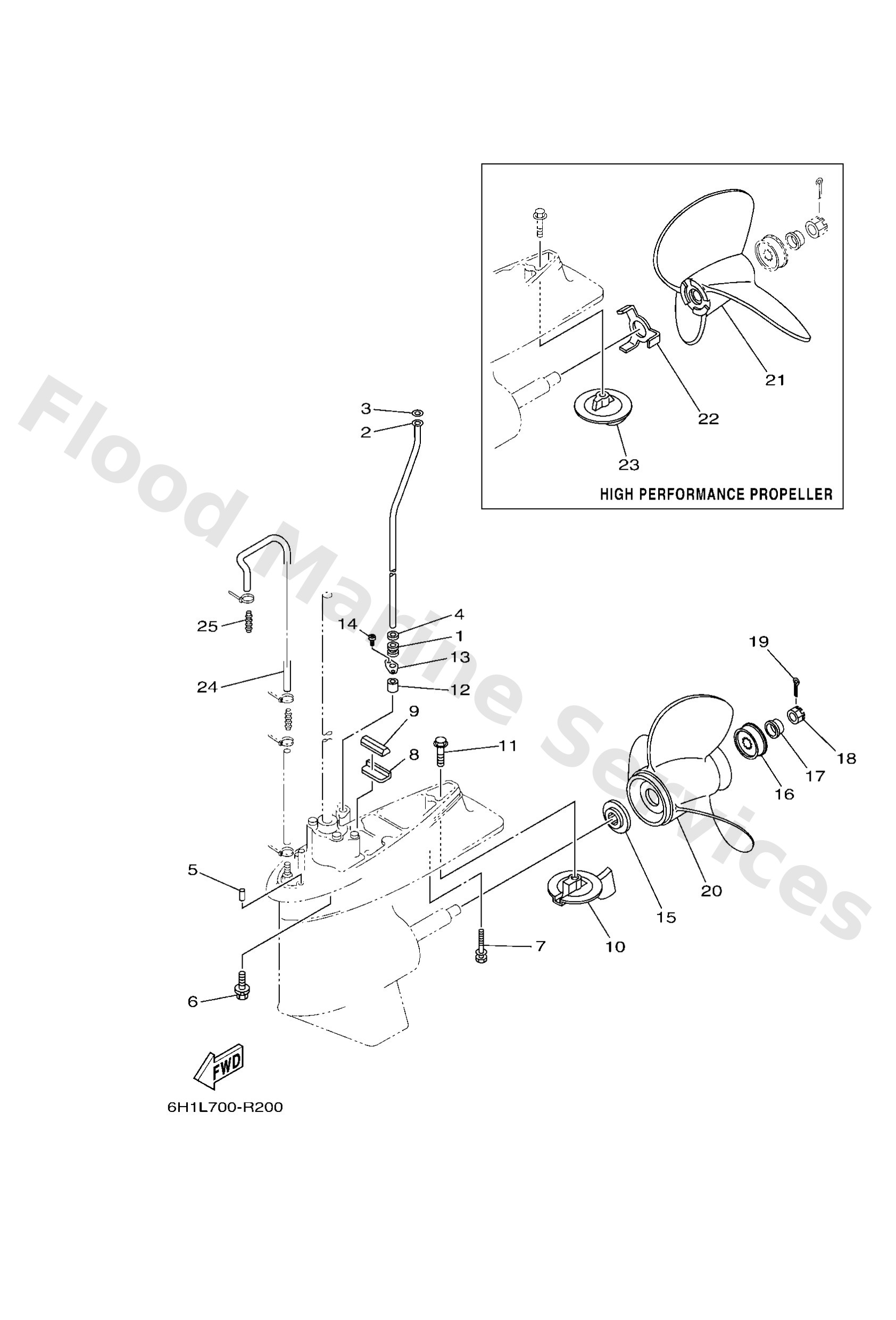

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6634436700
Damper, water seal 3
Loading…
↗
2
6884436110
L(20.5")
Tube, water 1
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
9360612019
L(20.5")
Pin, dowel (614)
Loading…
↗
6
9757510640
L(20.5")
Bolt, hexagon w/w deep recess
Loading…
↗
7
9757508560
L(20.5")
Bolt, hexagon w/w deep recess
Loading…
↗
8
6634537600
Guide, seal damper
Loading…
↗
9
6884537500
Damper, seal 2
Loading…
↗
10
67F4537100
Tab-trim
Loading…
↗
11
9010510M67
Bolt, hexagon (663)
Loading…
↗
12
6634436600
Damper, water seal 2
Loading…
↗
13
9048019M06
Grommet (688)
Loading…
↗
14
9016004006
Screw, round tapping
Loading…
↗
15
6884598701
Spacer
Loading…
↗
16
67F4599700
Spacer 2
Loading…
↗
17
9038925M00
Bush
Loading…
↗
18
9017116011
Nut, castle (663)
Loading…
↗
19
9149030025
Pin cotter
Loading…
↗
20
6E54595400
UR
Propeller (3x14"x11"-k)
Loading…
↗
20
6E54594900
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
20
6E54594700
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
20
6E54594501
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
20
6E54594100
UR
Propeller (3x13x19-k)
Loading…
↗
20
6E54594300
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
20
6E54595200
UR
Propeller (3x13"x23"-k)
Loading…
↗
20
6E54595600
UR
Propeller (3x13"x25"-k)
Loading…
↗
20
6884593260
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
20
6884597860
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
20
6884593002
UR
Propeller (3x13x17)
Loading…
↗
20
6884597003
UR
Propeller (3x13"x19"-k)
Loading…
↗
20
6884597202
UR
Propeller (3x13"x21"-k)
Loading…
↗
20
6884597402
UR
Propeller (3x13"x23"-k)
Loading…
↗
20
6884597601
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
21
6E54597010
UR
Propeller (ss 3x14"x20"-p)
Loading…
↗
21
6E54597610
UR
Propellar assembly (3x14"x22"-p)
Loading…
↗
21
6E54597210
UR
Propeller (ss 3x14"x24"-p)
Loading…
↗
21
6E54597810
UR
Propeller assembly (3x14"x26"-p)
Loading…
↗
21
6E54597410
UR
Propeller (ss 3x14"x28"-p)
Loading…
↗
22
6E54599410
Plate, tooth
Loading…
↗
23
6E54537110
Tab-trim
Loading…
↗
24
9044507MF1
Hose (l570)
Loading…
↗
25
6E58355800
End, nipple
Loading…
↗
