E15DMH (2004)
LOWER CASING & DRIVE 2

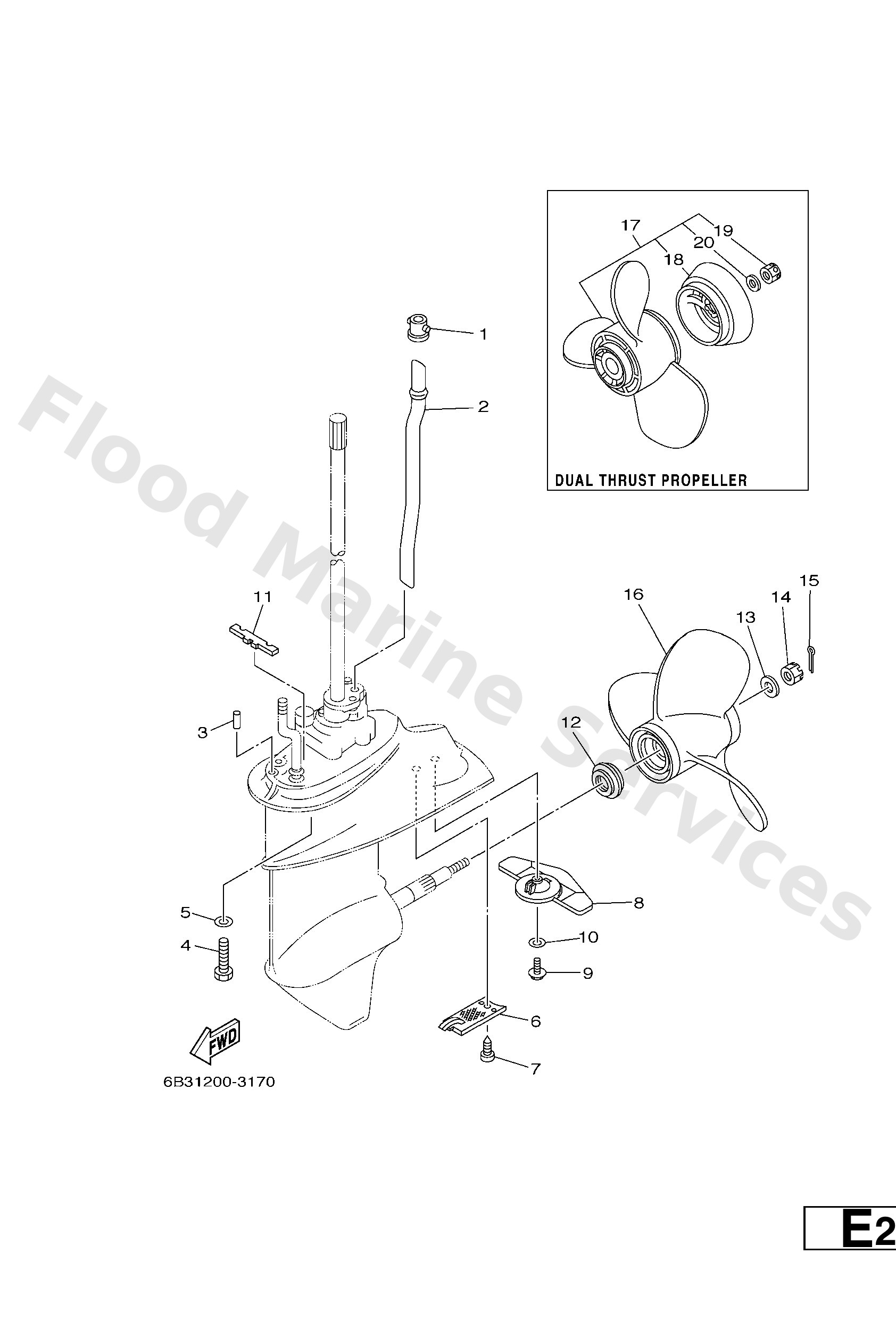

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6264436501
Damper, water seal 1
Loading…
↗
2
6824436100
S
Tube, water
Loading…
↗
2
6B44436110
L
Tube, water 1
Loading…
↗
2
6B44436130
X
Tube, water 1
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9707508035
Bolt(70w)
Loading…
↗
5
9299508600
Washer, plain (663)
Loading…
↗
6
6E74521400
Cover, water inlet
Loading…
↗
7
9788005012
Screw,pan head (646)
Loading…
↗
8
6B44525100
Anode
Loading…
↗
9
9589506020
Bolt, flange(jk3)
Loading…
↗
10
9299006300
Washer, tooth
Loading…
↗
11
6824537501
Damper, seal
Loading…
↗
12
6E74598701
Spacer
Loading…
↗
13
9020110M01
Washer, plate(6m7)
Loading…
↗
14
9017110M01
Nut castle (683)
Loading…
↗
15
9149030020
Pin cotter
Loading…
↗
16
6834594100EL
UR
Propeller (3x9-1/4"x12"-j)
Loading…
↗
16
6834594300EL
UR
Propeller (3x9-1/4"x10-1/2"-j)
Loading…
↗
16
6834594700EL
UR
Propeller (3X9-1/4"X8"-J)
Loading…
↗
16
6834594900EL
UR
Propeller (3x9-1/2"x6-1/2"-j)
Loading…
↗
16
6834595200EL
UR
プロペラ (3X9-1/4X9-3/4-J)
Loading…
↗
16
63V4594300EL
UR
Propeller (3x9-1/4 x11 -j1)
Loading…
↗
16
63V4594500EL
UR
Propeller (3x9-1/4 x9 -j1)
Loading…
↗
16
63V4594700EL
UR
Propeller (3x9-1/4 x8 -j)
Loading…
↗
16
63V4595200EL
UR
Propeller (3x9-1/4 x10 -j1)
Loading…
↗
17
683W459202EL
UR
Propeller (3x9-3/4"x6-1/2"-j)
Loading…
↗
17
683W459102EL
UR
Propeller (3x9-3/4 x8 -j)
Loading…
↗
18
6E74598600
Ring, deflector
Loading…
↗
19
9017110M07
Nut, castle(6g8)
Loading…
↗
20
9020110M02
Washer, plate(6g9)
Loading…
↗
