E60HMHD (2023)
LOWER CASING & DRIVE 2

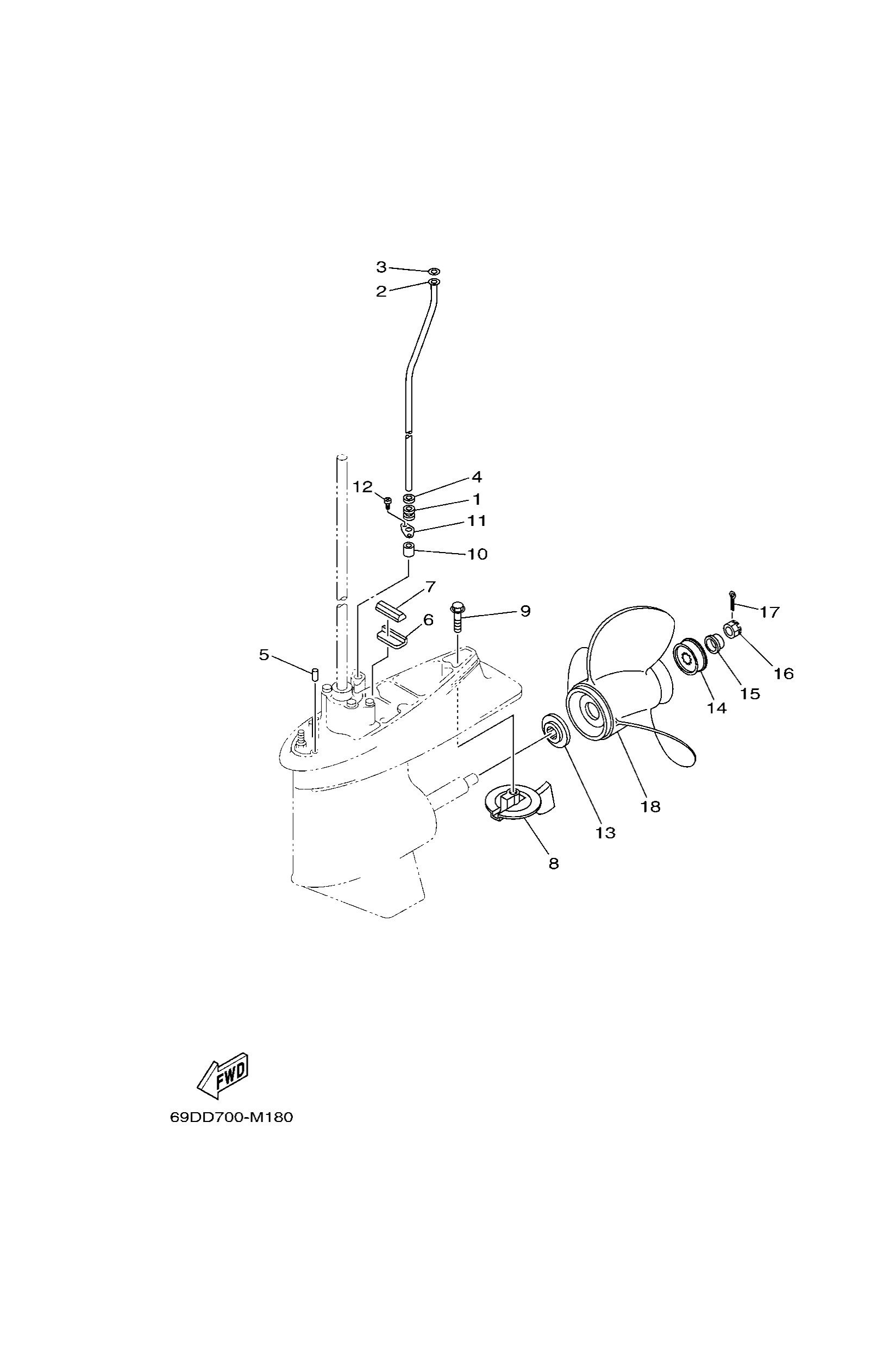

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6634436701
Damper, water seal 3
Loading…
↗
2
69D4436110
L(22.5")
Tube, water 1
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
6634537600
Guide, seal damper
Loading…
↗
7
6884537500
Damper, seal 2
Loading…
↗
8
67F4537100
Tab-trim
Loading…
↗
9
9010510M67
Bolt, hexagon (663)
Loading…
↗
10
6634436601
Damper, water seal 2
Loading…
↗
11
9048019M06
Grommet (688)
Loading…
↗
12
9016004006
Screw, round tapping
Loading…
↗
13
6884598701
Spacer
Loading…
↗
14
67F4599700
Spacer 2
Loading…
↗
15
9038925M00
Bush
Loading…
↗
16
9017116011
Nut, castle (663)
Loading…
↗
17
9149030025
Pin cotter
Loading…
↗
18
6E54595400
UR
Propeller (3x14"x11"-k)
Loading…
↗
18
6E54594900
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
18
6884593260
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
18
6E54594700
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
18
6884597860
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
18
6884593002
UR
Propeller (3x13x17)
Loading…
↗
18
6E54594501
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
18
6E54594100
UR
Propeller (3x13x19-k)
Loading…
↗
18
6884597003
UR
Propeller (3x13"x19"-k)
Loading…
↗
18
6E54594300
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
18
6884597202
UR
Propeller (3x13"x21"-k)
Loading…
↗
18
6E54595200
UR
Propeller (3x13"x23"-k)
Loading…
↗
18
6884597402
UR
Propeller (3x13"x23"-k)
Loading…
↗
18
6E54595600
UR
Propeller (3x13"x25"-k)
Loading…
↗
18
6884597601
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
