F100DET (2018)
LOWER CASING & DRIVE 2

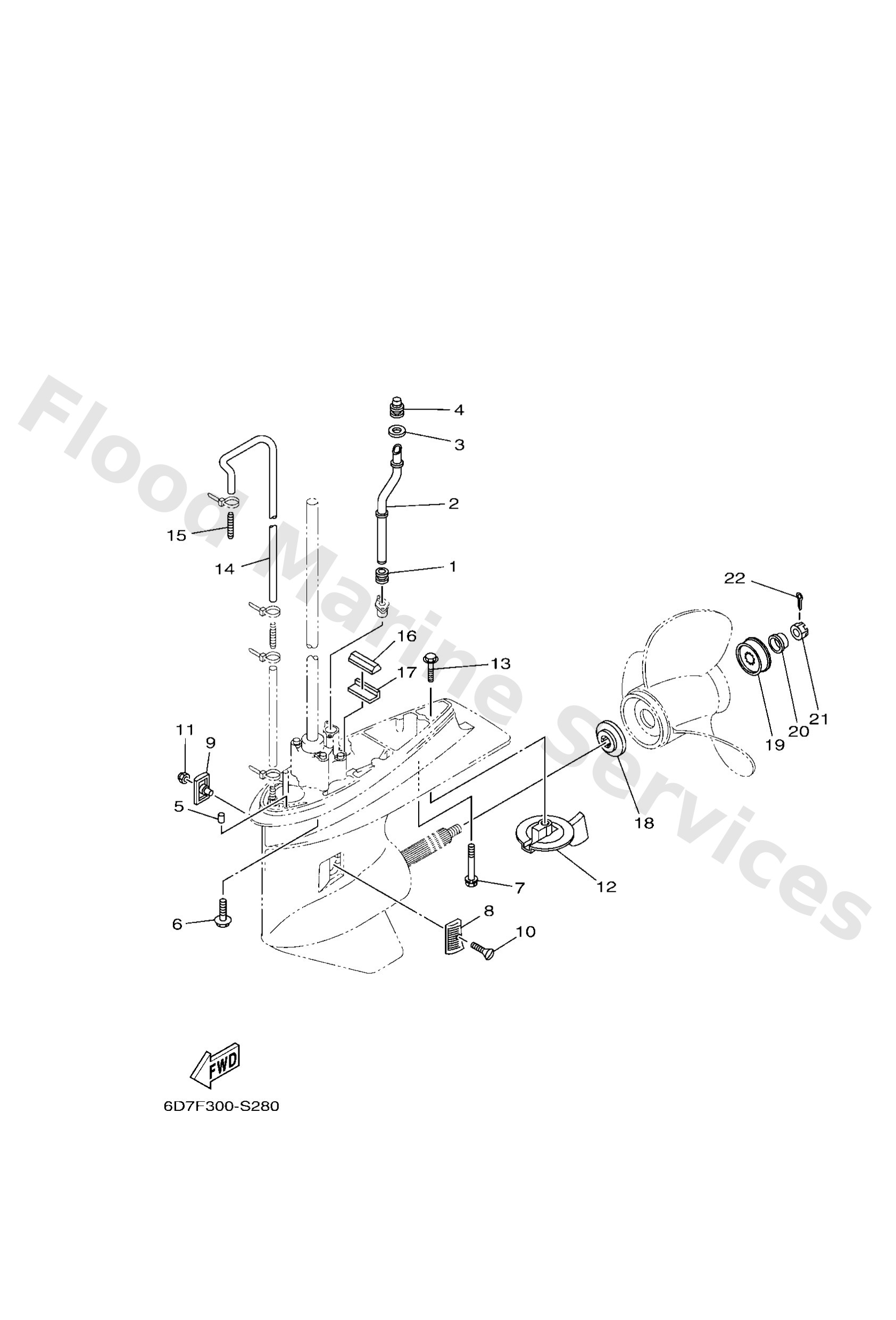

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6634436700
Damper, water seal 3
Loading…
↗
2
6D84436100
L(21.1")
Tube, water 1
Loading…
↗
2
6D84436110
X(26.1")
Tube, water 1
Loading…
↗
3
6D84431400
Spacer
Loading…
↗
4
67F4436500
Damper, water seal
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9011910068
L(21.1")
Bolt, with washer
Loading…
↗
7
9011908M84
L(21.1")
Bolt, with washer
Loading…
↗
7
9011908M86
X(26.1")
Bolt, with washer(62x)
Loading…
↗
8
6H14521400
Cover, water inlet
Loading…
↗
9
6H14521500
Cover, water inlet
Loading…
↗
10
9015105M00
Screw, countersunk(692)
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
67F4537100
Tab-trim
Loading…
↗
13
9010510M67
Bolt, hexagon (663)
Loading…
↗
14
9044507ME0
Hose (l1457)
Loading…
↗
15
6E58355800
End, nipple
Loading…
↗
16
6884537500
Damper, seal 2
Loading…
↗
17
6634537600
Guide, seal damper
Loading…
↗
18
6884598701
Spacer
Loading…
↗
19
67F4599700
Spacer 2
Loading…
↗
20
9038925M00
Bush
Loading…
↗
21
9017116011
Nut, castle (663)
Loading…
↗
22
9149040030
Pin, cotter (663)
Loading…
↗
