F100FET (2025)
LOWER CASING & DRIVE 2

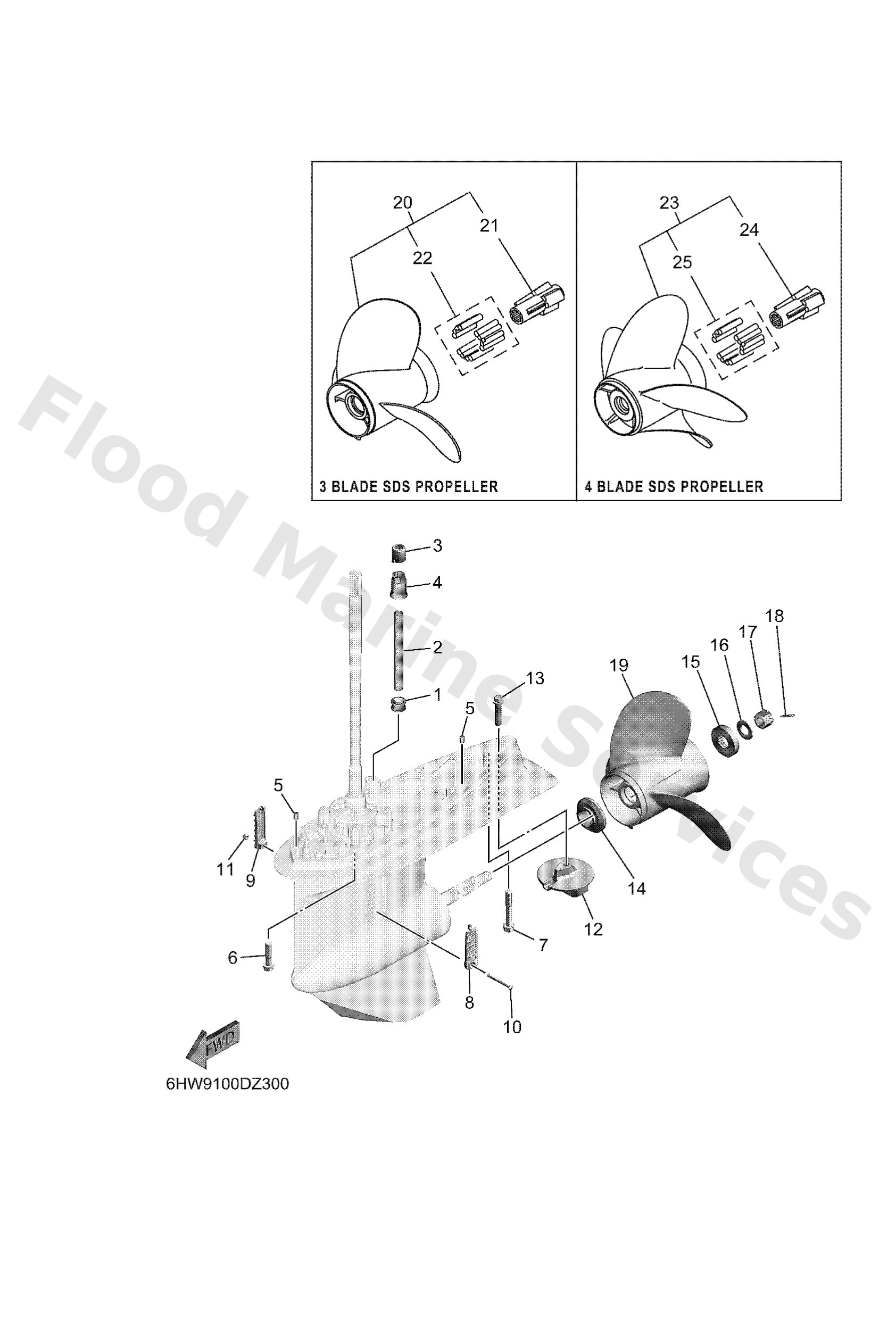

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436601
Damper, water seal 2
Loading…
↗
2
9044016001
L(20.3")
Pipe
Loading…
↗
3
6EK4436501
Damper, water seal 1
Loading…
↗
4
6EK4437900
Guide, water tube
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
6
97E9510545
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011910071
Bolt, with washer
Loading…
↗
8
6884521402
Cover, water inlet
Loading…
↗
9
6884521502
Cover, water inlet
Loading…
↗
10
9015205M07
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6E54537101
Trim tab
Loading…
↗
13
9010510M00
Bolt, hexagon (663)
Loading…
↗
14
6E54598701
Spacer 1
Loading…
↗
15
6884599701
Spacer 2
Loading…
↗
16
9299018200
Washer (6e5)
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
6E54595400
UR
Propeller (3x14"x11"-k)
Loading…
↗
19
6E54594900
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
19
6E54595800
UR
Propeller (3x13-5/8"x14"-k)
Loading…
↗
19
6E54594700
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
19
6E54594501
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
19
6E54594100
UR
Propeller (3x13x19-k)
Loading…
↗
19
6E54594300
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
19
6E54595200
UR
Propeller (3x13"x23"-k)
Loading…
↗
19
6E54595600
UR
Propeller (3x13"x25"-k)
Loading…
↗
19
62A4597210
UR
Propeller (3X13-1/2"X23"-K)
Loading…
↗
19
62A4597010
UR
Propeller (3X13-1/2"X21"-K)
Loading…
↗
19
62A4597410
UR
Propeller (3X13-1/2"X19"-K)
Loading…
↗
19
62A4597600
UR
Propeller (3X13-1/2"X17"-K)
Loading…
↗
19
6884597601
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
19
6884597402
UR
Propeller (3x13"x23"-k)
Loading…
↗
19
6884597003
UR
Propeller (3x13"x19"-k)
Loading…
↗
19
6884593002
UR
Propeller (3x13x17)
Loading…
↗
19
6884597860
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
19
6884593260
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
19
68V4594300
UR
Propeller (3X13-1/2"X19"-K)
Loading…
↗
19
68V4594100
UR
Propeller (3X13-1/2"X17"-K)
Loading…
↗
19
6884597202
UR
Propeller (3x13"x21"-k)
Loading…
↗
20
6N74597400
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 18-sds
Loading…
↗
20
6N74597600
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 19-sds
Loading…
↗
20
6N74597200
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 16-sds
Loading…
↗
20
6N74597000
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 14-sds
Loading…
↗
20
6FP4594900
UR SDS 3 BLADE
Propeller (al 3x13 x18 -k)
Loading…
↗
20
6FP4594700
UR SDS 3 BLADE
Propeller (al 3x13-1/8 x17 -k)
Loading…
↗
20
6FP4594500
UR SDS 3 BLADE
Propeller (al 3x13-1/4 x16 -k)
Loading…
↗
20
6FP4594100
UR SDS 3 BLADE
Propeller (al 3x13-5/8 x14 -k)
Loading…
↗
20
6EK4594900
UR SDS 3 BLADE
Propeller (3x13-1/2 x 16 -k)
Loading…
↗
20
6EK4594700
UR SDS 3 BLADE
Propeller (3x13-1/2 x 14 -k)
Loading…
↗
20
6EK4594500
UR SDS 3 BLADE
Propeller (3x13-1/2 x 12 -k)
Loading…
↗
20
6EK4594300
UR SDS 3 BLADE
Propeller 3x13-1/2 x 10-1/2-k
Loading…
↗
20
6EK4594100
UR SDS 3 BLADE
Propeller (3x13-1/2 x 9-k)
Loading…
↗
20
6FP4594300
UR SDS 3 BLADE
Propeller (al 3x13-1/2 x15 -k)
Loading…
↗
20
6H14597400
UR SDS 3 BLADE
Propeller (3X14"X11"-K)
Loading…
↗
20
6H14597800
UR SDS 3 BLADE
Propeller (3X14"X13"-K)
Loading…
↗
20
6H14597600
UR SDS 3 BLADE
Propeller (3X14"X12"-K)
Loading…
↗
20
6H14597200
UR SDS 3 BLADE
Propeller (3X14"X10"-K)
Loading…
↗
20
6H14597000
UR SDS 3 BLADE
Propeller (3X14"X9"-K)
Loading…
↗
20
6N74593200
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 24-sds
Loading…
↗
20
6N74593000
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 22-sds
Loading…
↗
20
6N74597800
UR SDS 3 BLADE
Talon 3 x 13-1/8 x 20-sds
Loading…
↗
21
6EK4598200
Bush, propeller
Loading…
↗
22
6EK45C8209
Damper rubber, propeller 2
Loading…
↗
23
6N645B7000
UR SDS 4 BLADE
Propeller (4X13-1/4"X14"-X)
Loading…
↗
23
6N645B7200
UR SDS 4 BLADE
Prop - 4 x 13 1/4" x 16" (sds)
Loading…
↗
23
6N645B7400
UR SDS 4 BLADE
Propeller (4X13-1/4"X18"-X)
Loading…
↗
23
6N645B7600
UR SDS 4 BLADE
Propeller (4X13-1/4"X20"-X)
Loading…
↗
23
6N645B7800
UR SDS 4 BLADE
Propeller (4X13-1/4"X22"-X)
Loading…
↗
23
6N645B8000
UR SDS 4 BLADE
Propeller (4X13-1/4"X23"-X)
Loading…
↗
