F150AET (2006)
LOWER CASING & DRIVE 2

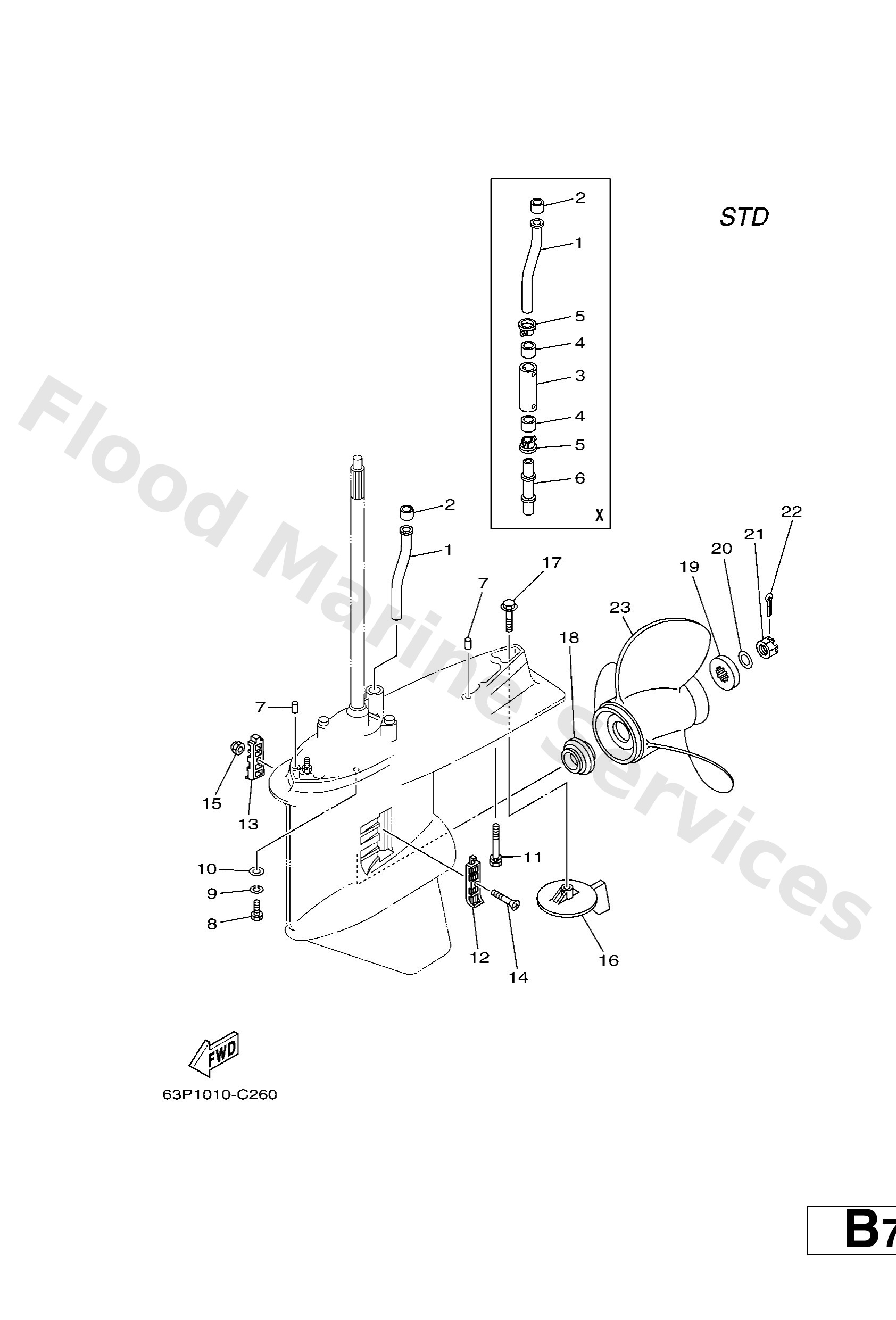

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
63P4436100
Tube, water
Loading…
↗
4
6E54436500
X (25.3")
Damper, water seal 1
Loading…
↗
3
63P4436200
X (25.3")
Tube, water 2
Loading…
↗
5
6E54431200
X (25.3")
Cover, water pump housing
Loading…
↗
6
63P4436300
X (25.3")
Tube, water 3
Loading…
↗
7
9360816M16
Pin, dowel(6t4)
Loading…
↗
8
9709510045
Bolt(64d)
Loading…
↗
9
9299510100
Ybs67-10 washer, spring
Loading…
↗
10
9299510600
Washer, plate
Loading…
↗
11
9011910MA2
L (20.3")
Bolt, with washer
Loading…
↗
11
9011910008
X (25.3")
Bolt, with washer
Loading…
↗
12
6J94521400
Cover, water inlet
Loading…
↗
13
6J94521500
Cover, water inlet
Loading…
↗
14
9015205M08
Screw, countersunk
Loading…
↗
15
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
16
6J94537101
Tab-trim
Loading…
↗
17
9010510M00
Bolt, hexagon (663)
Loading…
↗
18
63P4598700
Spacer 1
Loading…
↗
19
6884599701
Spacer 2
Loading…
↗
20
9299018200
Washer (6e5)
Loading…
↗
21
9017118M04
Nut, castle (6e5)
Loading…
↗
22
9149040030
Pin, cotter (663)
Loading…
↗
23
6G5459430198
UR
Propeller (3x13-3/4"x21"-m)
Loading…
↗
23
6G5459450198
UR
Propeller (3x14"x19"-m)
Loading…
↗
23
6G5459470198
UR
Propeller (3x14-1/2"x17"-m)
Loading…
↗
23
6G5459410098
UR
Propeller (3x15-1/4x15-m)
Loading…
↗
23
6J94597610
UR
Propeller (3X14-1/2"X21"-M)
Loading…
↗
23
6J94597410
UR
Propeller (3X14-1/2"X27"-M)
Loading…
↗
23
6J94597210
UR
Propeller (3X14-1/2"X23"-M)
Loading…
↗
23
6J94597010
UR
Propeller (3X14-1/2"X25"-M)
Loading…
↗
23
6R445978A0
UR
-
Loading…
↗
23
6R445976A0
UR
-
Loading…
↗
23
6R445974A0
UR
-
Loading…
↗
23
6R445972A0
UR
-
Loading…
↗
23
6R445970A1
UR
-
Loading…
↗
23
6G5459780398
UR
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
23
6G5459760198
UR
Propeller (3x13-3/8"x23"-m)
Loading…
↗
23
6G5459740398
UR
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
23
6G5459720298
UR
Propeller (3x13-3/4 x21 -m)
Loading…
↗
23
6G5459700298
UR
Propeller (3x15-1/4 x15 -m)
Loading…
↗
23
6G5459320098
UR
Propeller (3x15-3/4"x13"-m)
Loading…
↗
23
6G5459300098
UR
Propeller (ss 3x13-3/8"x25"-m)
Loading…
↗
23
6G5459490098
UR
Propeller (3x13-1/2"x23"-m)
Loading…
↗
