F175AET (2014)
LOWER CASING & DRIVE 2

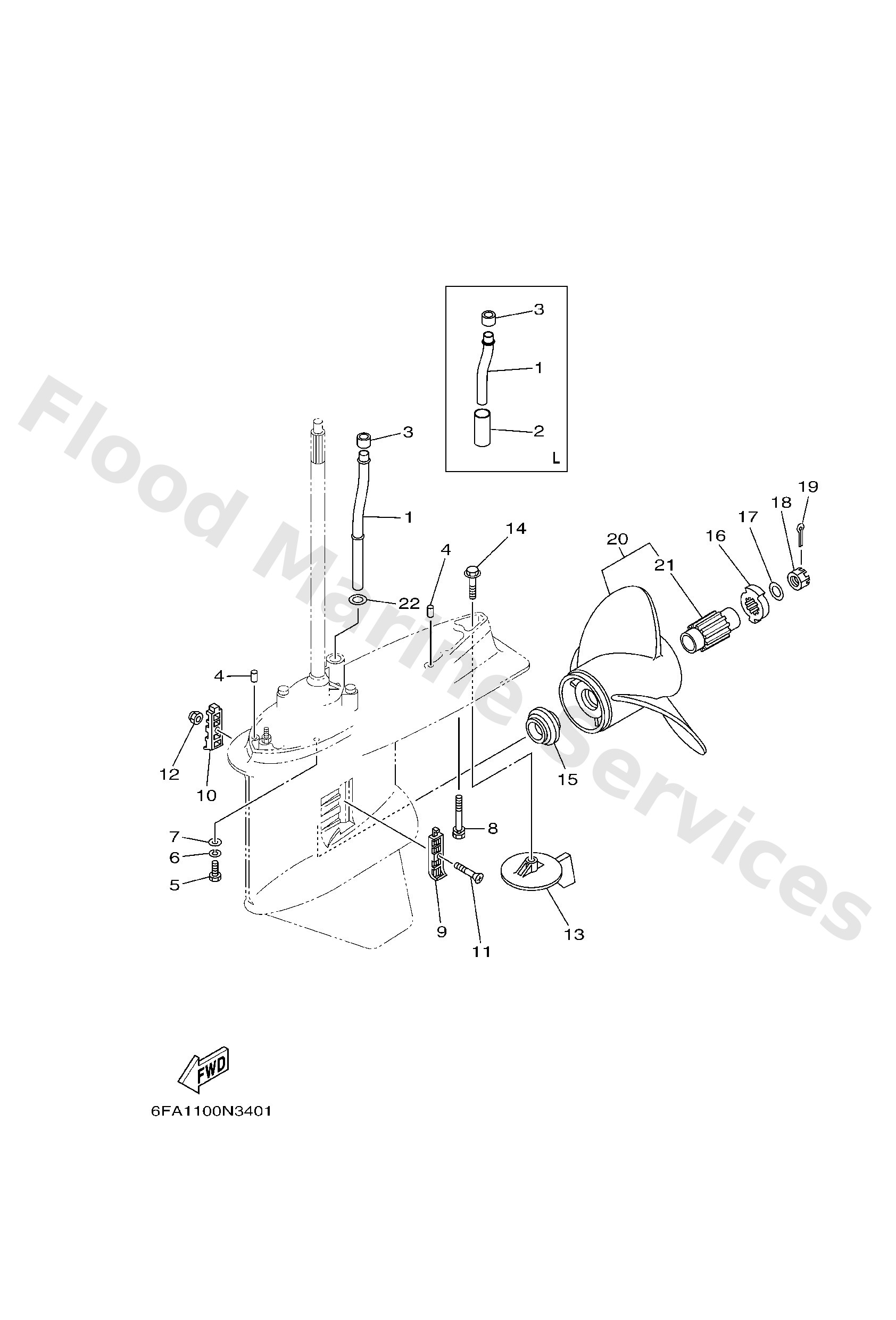

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6DA4436110
L(20.3")
Tube, water 1
Loading…
↗
1
6DA4436100
X(25.3")
Tube, water 1
Loading…
↗
2
9044523002
L(20.3")
Hose
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
9709510045
Bolt(64d)
Loading…
↗
6
9299510100
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
Washer, plate
Loading…
↗
8
9011910MA2
Bolt, with washer
Loading…
↗
9
6J94521400
Cover, water inlet
Loading…
↗
10
6J94521500
Cover, water inlet
Loading…
↗
11
9015205M08
Screw, countersunk
Loading…
↗
12
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
13
6J94537101
Tab-trim
Loading…
↗
14
9010510M00
Bolt, hexagon (663)
Loading…
↗
15
63P4598700
Spacer 1
Loading…
↗
16
6CE4599700
Spacer 2
Loading…
↗
17
9299018200
Washer (6e5)
Loading…
↗
18
9017118M04
Nut, castle (6e5)
Loading…
↗
19
9149040030
Pin, cotter (663)
Loading…
↗
20
68F4597010
UR
Propeller (3X14-1/2"X15"-M)
Loading…
↗
20
68F4597210
UR
Propeller (3X14-1/4"X17"-M)
Loading…
↗
20
68F4597410
UR
Propeller (3X13-3/4"X19"-M)
Loading…
↗
20
68F4597610
UR
Propeller (3X13-3/4"X21"-M)
Loading…
↗
20
68F4597810
UR
Propeller (3X14-1/4"X18"-M)
Loading…
↗
21
6CE45C8100
Propeller damper sds gen 1
Loading…
↗
22
9020216061
Go to P/N ) PE0-OM-140009
Washer, plate(663)
Loading…
↗
