F2.5AMH (2005)
LOWER CASING & DRIVE 2

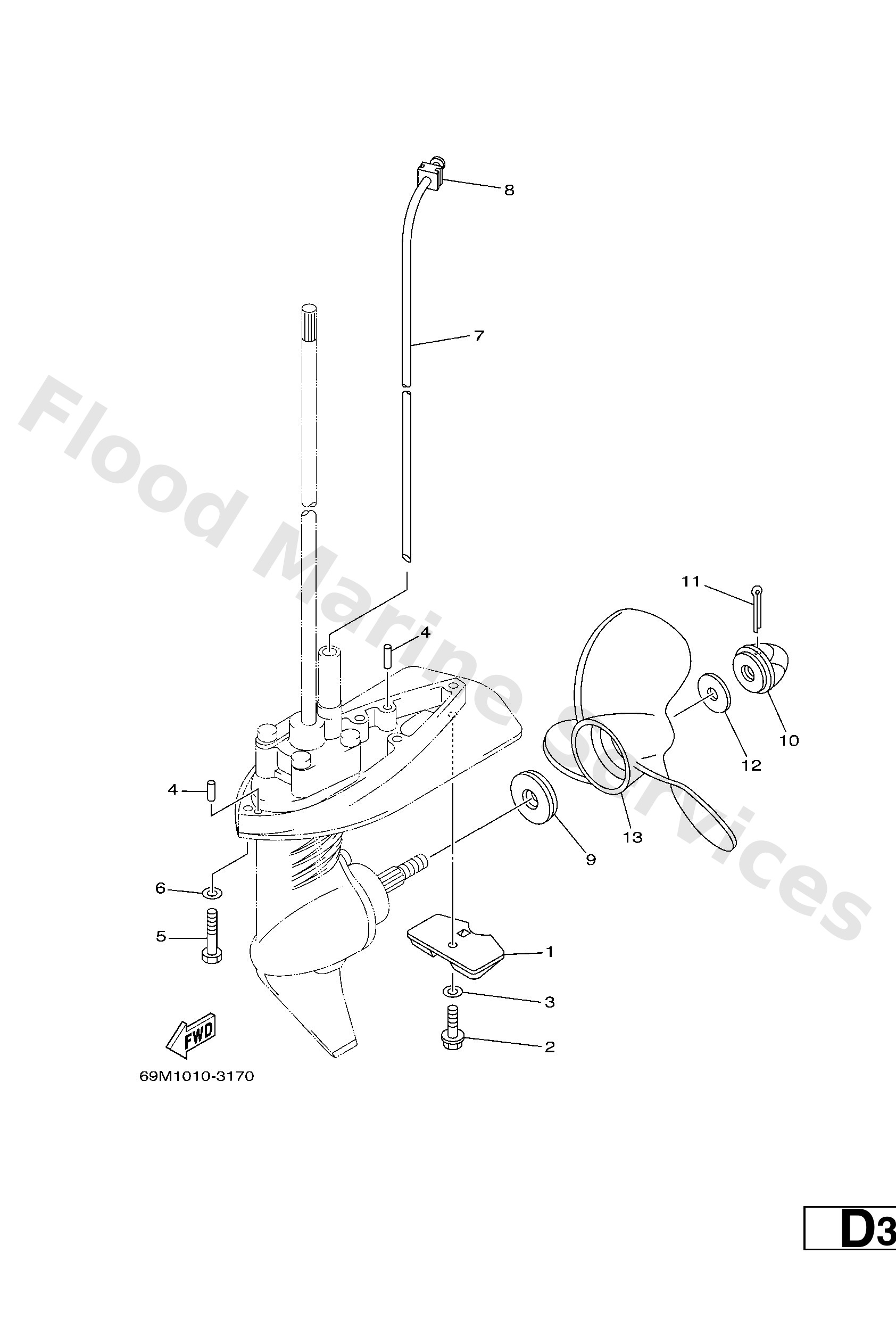

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
68DG525100
Anode
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
9299006300
Washer, tooth
Loading…
↗
4
9360412M07
Pin, dowel (688)
Loading…
↗
5
9709506030
S
Bolt(jf7)
Loading…
↗
6
9299506600
S
Washer, plain (646)
Loading…
↗
7
69M4436100
S
Tube, water 1
Loading…
↗
7
69M4436110
L
Tube, water 1
Loading…
↗
8
68DG436500
Damper, water seal
Loading…
↗
9
68DG598700
Spacer 1
Loading…
↗
10
6L54561600
Nut, propeller
Loading…
↗
11
9149025030
Pin, cotter(6l5)
Loading…
↗
12
9020108M54
Washer, plate (6e5)
Loading…
↗
13
6L54594300EL
UR
Propeller (3x7-1/4 x6 -bs)
Loading…
↗
13
6L54594500EL
UR
Propeller (3x7-1/4"x7-1/4"-bs)
Loading…
↗
13
6L54594700EL
UR
Propeller (3x7-1/4"x8-1/4"-bs)
Loading…
↗
13
6L54594900EL
UR
Propeller (3x7-1/4 x5 -bs)
Loading…
↗
13
6L54595200EL
UR
Propeller (3x7-1/4"x5-1/2"-bs)
Loading…
↗
