F2.5BMH (2022)
LOWER CASING & DRIVE 2

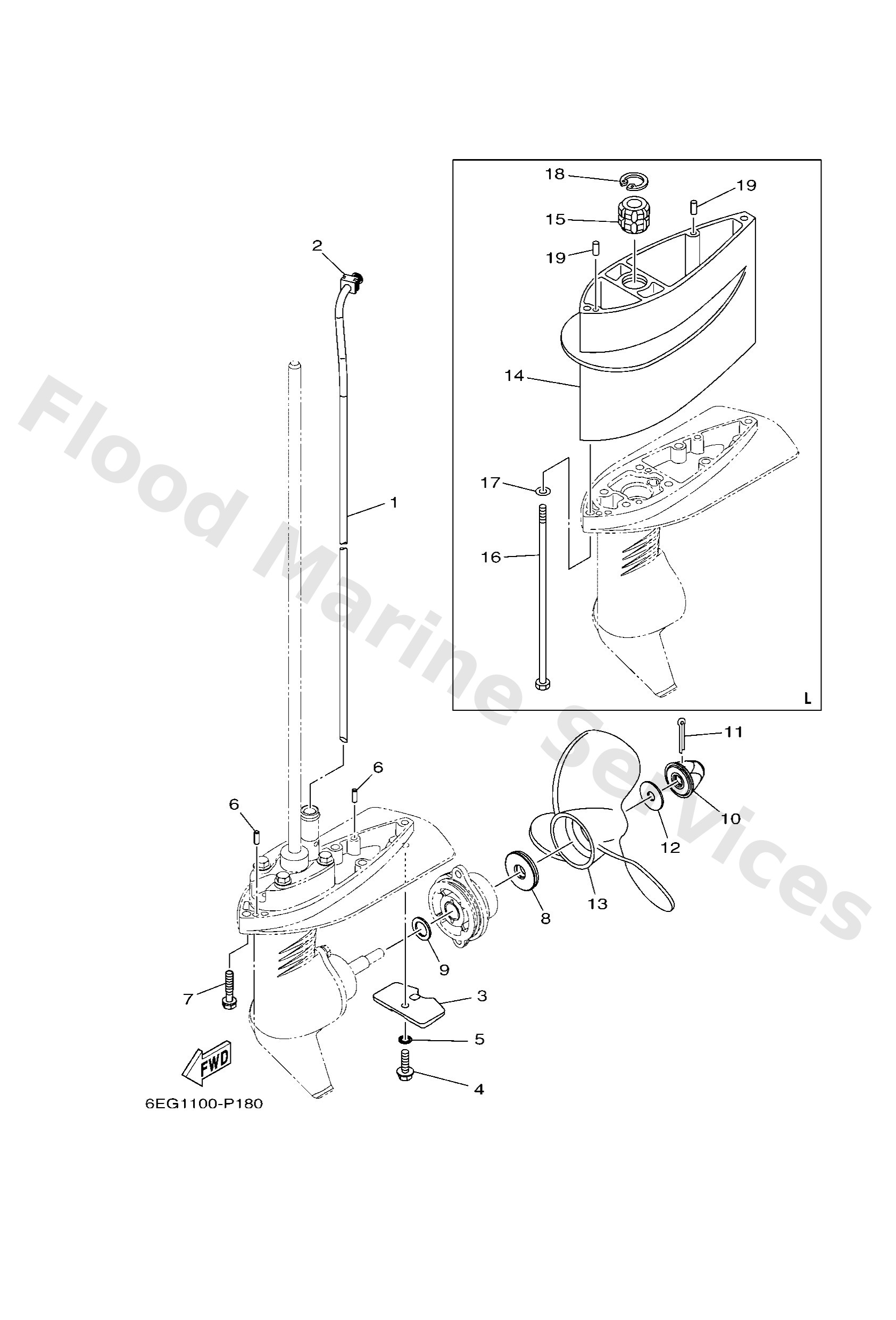

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6EG4436110
L(22.0")
Tube, water 1
Loading…
↗
1
6EG4436100
S(17.0")
Tube, water 1
Loading…
↗
2
6EEG436500
Damper, water seal
Loading…
↗
3
6L54525103
Anode
Loading…
↗
4
95D9506012
Bolt, flange deep recess
Loading…
↗
5
9299006300
Washer, tooth
Loading…
↗
19
9360412M07
L(22.0")
Pin, dowel (688)
Loading…
↗
7
97E9506530
S(17.0")
Bolt, hexagon w/w deep recess
Loading…
↗
8
6EEG598700
Spacer 1
Loading…
↗
9
9020113198
Washer 6474556600
Loading…
↗
10
6EEG561600
Nut, propeller
Loading…
↗
11
9149025030
Pin, cotter(6l5)
Loading…
↗
12
9020108M54
Washer, plate (6e5)
Loading…
↗
13
6L54594300
UR
Propeller (3x7-1/4 x6 -bs)
Loading…
↗
13
6L54594900
UR
Propeller (3x7-1/4 x5 -bs)
Loading…
↗
14
6EGG5211008D
L(22.0")
Extension
Loading…
↗
15
6L54531800
L(22.0")
Bushing, drive shaft
Loading…
↗
16
9010106M18
L(22.0")
Bolt(6l5)
Loading…
↗
17
9299006600
L(22.0")
Washer, plain (646)
Loading…
↗
18
9342022M03
L(22.0")
Cir clip (6e0)
Loading…
↗
