F200AET (2007)
LOWER CASING & DRIVE 2

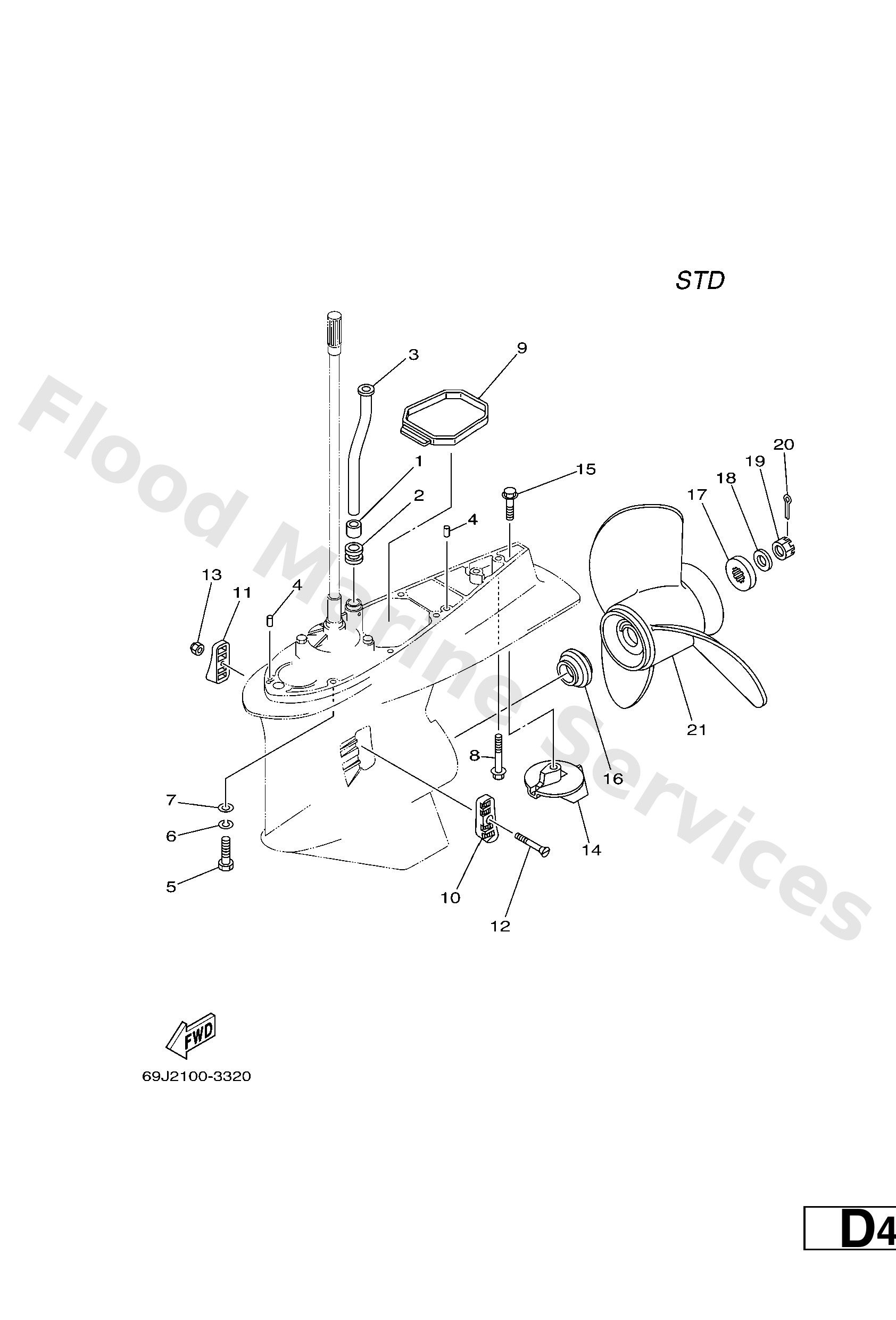

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436500
Damper, water seal 1
Loading…
↗
2
6E54436600
Damper, water seal 2
Loading…
↗
3
69J4436100
X(25.3")
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9709510045
X(25.3")
Bolt(64d)
Loading…
↗
6
9299510100
X(25.3")
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
X(25.3")
Washer, plate
Loading…
↗
8
9011910MA2
X(25.3")
Bolt, with washer
Loading…
↗
9
69J4537500
Damper, seal
Loading…
↗
10
61A4521410
Cover, water inlet 1
Loading…
↗
11
61A4521510
Cover, water inlet 2
Loading…
↗
12
9015205003
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
61A4537100
Anode
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
69J4598700
Spacer 1
Loading…
↗
17
6884599701
Spacer 2
Loading…
↗
18
9299018200
Washer (6e5)
Loading…
↗
19
9017118M04
Nut, castle (6e5)
Loading…
↗
20
9149040030
Pin, cotter (663)
Loading…
↗
21
6G5459700298
UR
Propeller (3x15-1/4 x15 -m)
Loading…
↗
21
6G5459720298
UR
Propeller (3x13-3/4 x21 -m)
Loading…
↗
21
6G5459740398
UR
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
21
6G5459780398
UR
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
21
61A459720098
UR
Propeller (3x14-1/2"x21"-t)
Loading…
↗
21
61A459740098
UR
Propeller (3x14-1/2"x19"-t)
Loading…
↗
21
61A459780098
UR
Propeller (3x15"x17"-t)
Loading…
↗
21
6R445970A1
UR
-
Loading…
↗
21
6R445972A0
UR
-
Loading…
↗
21
6R445974A0
UR
-
Loading…
↗
21
6R445976A0
UR
-
Loading…
↗
21
6R445978A0
UR
-
Loading…
↗
21
66K45974B0
UR
Propeller (3X14-1/2"X23"-M2)
Loading…
↗
