F20GMH (2020)
LOWER CASING & DRIVE 2

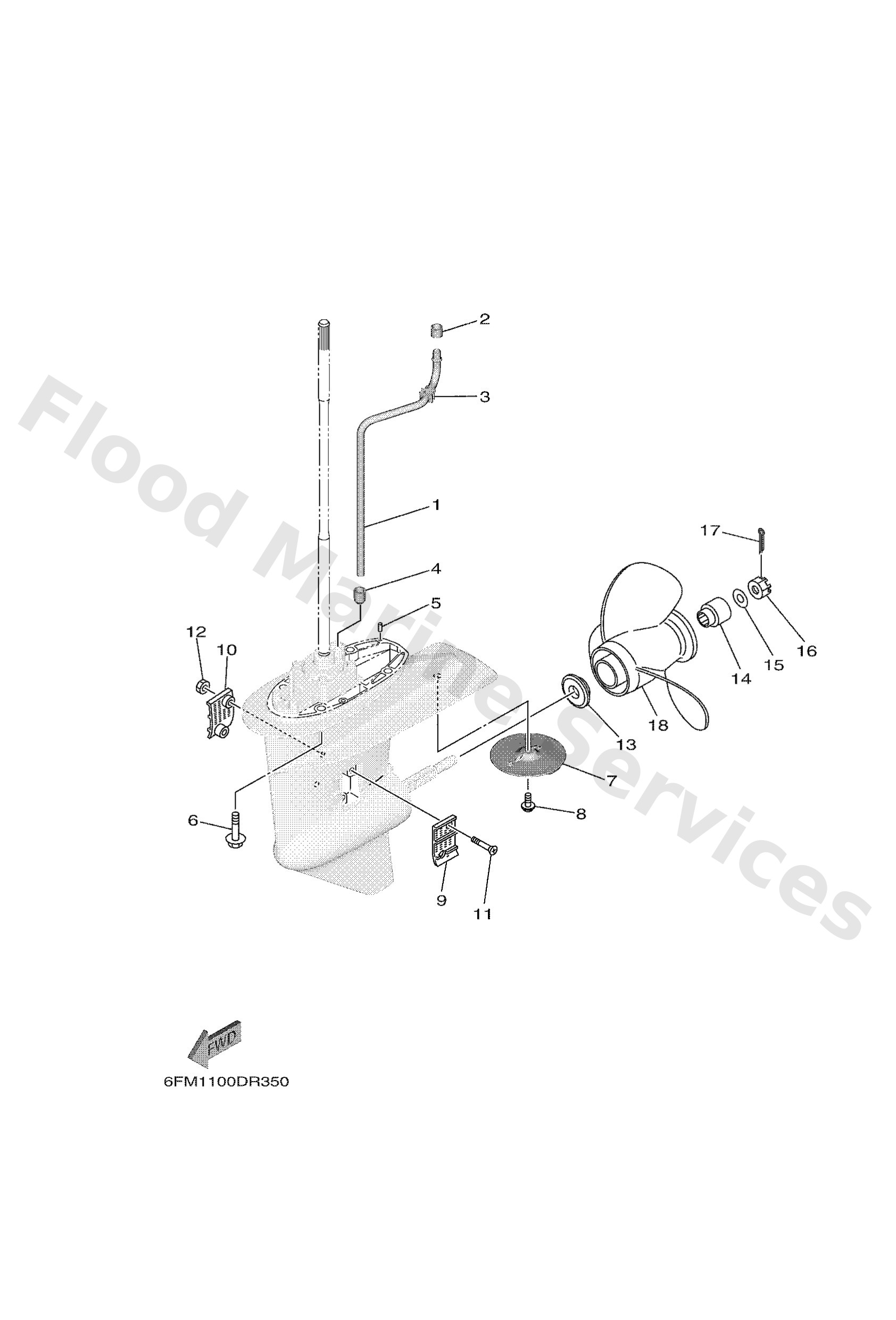

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6FM4436110
L(21.7")
Tube, water 1
Loading…
↗
1
6FM4436100
S(16.7")
Tube, water 1
Loading…
↗
2
6824436500
Damper, water seal 1
Loading…
↗
3
6AH4436500
Damper, water seal 1
Loading…
↗
4
6L24436800
Rubber, water seal 4
Loading…
↗
5
9360412M07
Pin, dowel (688)
Loading…
↗
6
9010510M12
Bolt (689)
Loading…
↗
7
6644537101
Tab-trim
Loading…
↗
8
9010508M02
Bolt hexagon
Loading…
↗
9
6L24521400
Cover, water inlet
Loading…
↗
10
6L24521500
Cover, water inlet
Loading…
↗
11
9015105M05
Screw, countersunk
Loading…
↗
12
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
13
6L24598701
Spacer
Loading…
↗
14
6894599700
Spacer
Loading…
↗
15
9299014200
Washer, plain
Loading…
↗
16
9017114013
Nut(664)
Loading…
↗
17
9149030022
Pin, cotter
Loading…
↗
18
6644594701
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
18
6644594500
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
