F225CET (2010)
LOWER CASING & DRIVE 2

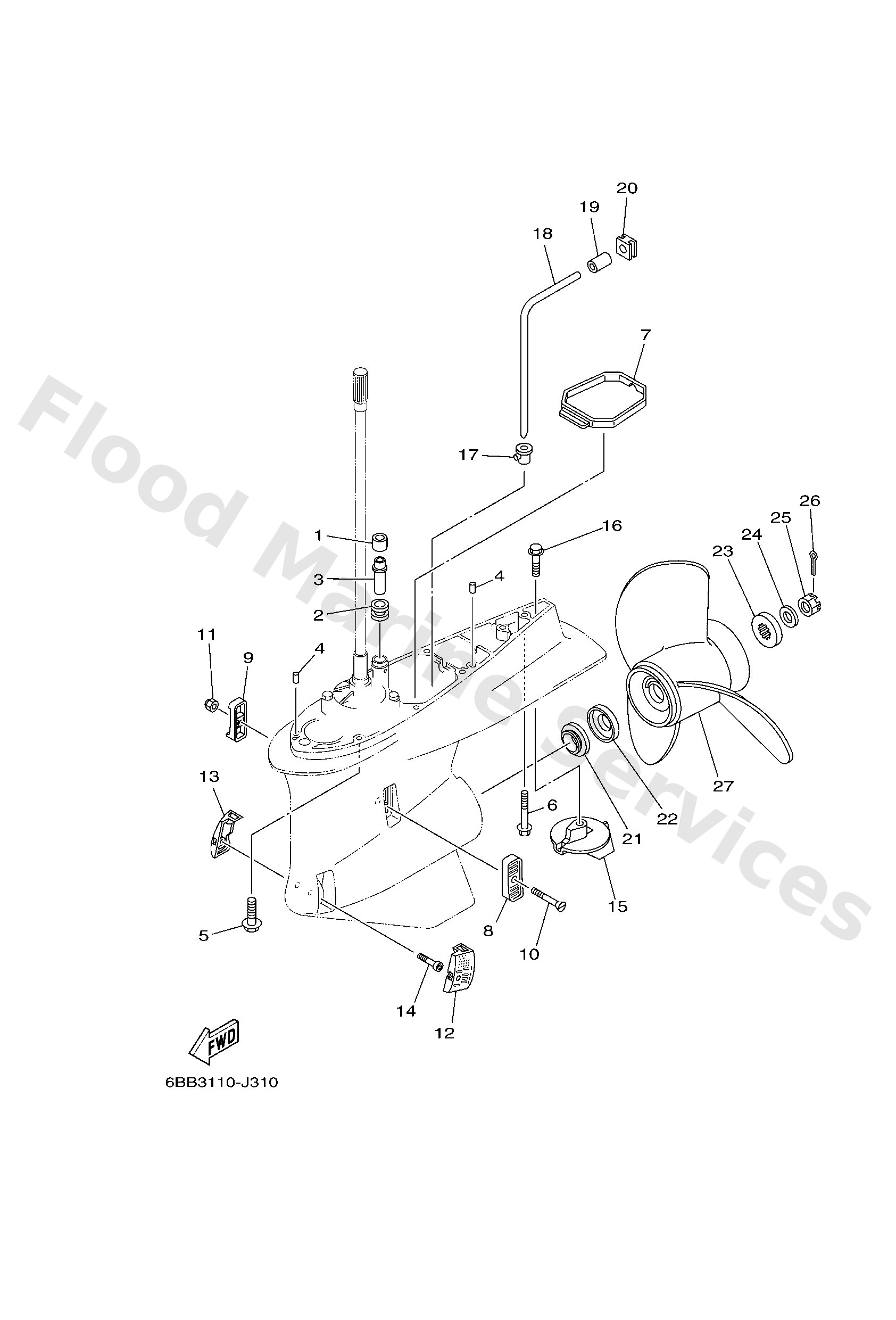

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436500
Damper, water seal 1
Loading…
↗
2
6E54436600
Damper, water seal 2
Loading…
↗
3
6BB4436100
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9011910038
Bolt, with washer
Loading…
↗
6
9011910MA2
Bolt, with washer
Loading…
↗
7
6D04537500
Damper, seal
Loading…
↗
8
6P24521400
Cover, water inlet 1
Loading…
↗
9
6P24521500
Cover, water inlet 2
Loading…
↗
10
9015205M08
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6P24522400
Cover, water inlet 3
Loading…
↗
13
6P24522500
Cover, water inlet 4
Loading…
↗
14
9011005039
Bolt, hexagon socket head
Loading…
↗
15
69L4537100
Tab-trim
Loading…
↗
16
9010510M00
Bolt, hexagon (663)
Loading…
↗
17
6D04436700
Damper, water seal 3
Loading…
↗
18
6D04436201
Tube, water 2
Loading…
↗
19
6D04436500
Damper, water seal 1
Loading…
↗
20
6D04436600
Damper, water seal 2
Loading…
↗
21
60X4598710
Spacer 1
Loading…
↗
22
60X4599500
Spacer 3
Loading…
↗
23
6884599701
Spacer 2
Loading…
↗
24
9299018200
Washer (6e5)
Loading…
↗
25
9017118M04
Nut, castle (6e5)
Loading…
↗
26
9149040030
Pin, cotter (663)
Loading…
↗
27
6G5459700298
UR
Propeller (3x15-1/4 x15 -m)
Loading…
↗
27
6R445978A0
UR
-
Loading…
↗
27
6R445976A0
UR
-
Loading…
↗
27
6R445974A0
UR
-
Loading…
↗
27
6R445972A0
UR
-
Loading…
↗
27
6R445970A1
UR
-
Loading…
↗
27
61A459780098
UR
Propeller (3x15"x17"-t)
Loading…
↗
27
61A459740098
UR
Propeller (3x14-1/2"x19"-t)
Loading…
↗
27
61A459720098
UR
Propeller (3x14-1/2"x21"-t)
Loading…
↗
27
6G5459780398
UR
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
27
6G5459740398
UR
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
27
6G5459720298
UR
Propeller (3x13-3/4 x21 -m)
Loading…
↗
