F250AET (2013)
LOWER CASING & DRIVE 2

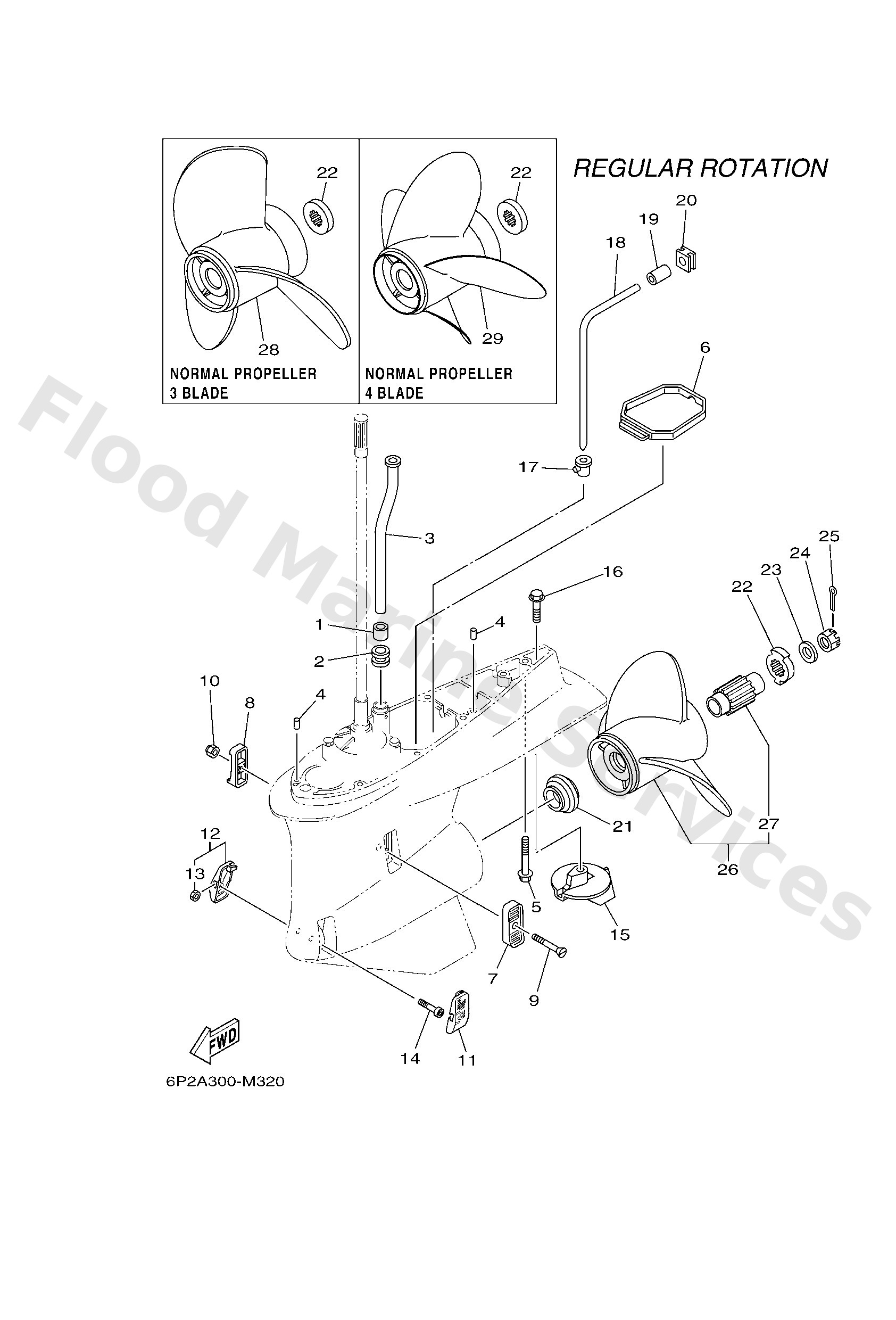

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436500
Damper, water seal 1
Loading…
↗
2
6E54436600
Damper, water seal 2
Loading…
↗
3
6S14436111
U(30.3")
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9011910008
U(30.3")
Bolt, with washer
Loading…
↗
6
6D04537501
Damper, seal
Loading…
↗
7
6P24521400
Cover, water inlet 1
Loading…
↗
8
6P24521500
Cover, water inlet 2
Loading…
↗
9
9015205M08
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
6CE4522400
Cover, water inlet 3
Loading…
↗
12
6CE4522500
Cover, water inlet 4
Loading…
↗
14
9011005039
Bolt, hexagon socket head
Loading…
↗
15
61A4537100
Anode
Loading…
↗
16
9010510M00
Bolt, hexagon (663)
Loading…
↗
17
6D04436700
Damper, water seal 3
Loading…
↗
18
6D04436201
Tube, water 2
Loading…
↗
19
6D04436500
Damper, water seal 1
Loading…
↗
20
6D04436600
Damper, water seal 2
Loading…
↗
21
69J4598700
Spacer 1
Loading…
↗
22
6CE4599700
FOR SDS PROP.
Spacer 2
Loading…
↗
22
6884599701
FOR NORMAL PROP.
Spacer 2
Loading…
↗
23
9299018200
Washer (6e5)
Loading…
↗
24
9017118M04
Nut, castle (6e5)
Loading…
↗
25
9149040030
Pin, cotter (663)
Loading…
↗
26
6CE4593000
UR SDS PROP.
-
Loading…
↗
26
6CE4597800
UR SDS PROP.
Propeller (3X15-1/2"X17"-T)
Loading…
↗
26
6CE4593400
UR SDS PROP.
-
Loading…
↗
26
6CE4597000
UR SDS PROP.
-
Loading…
↗
26
6CE4593200
UR SDS PROP.
-
Loading…
↗
26
6CE4597200
UR SDS PROP.
-
Loading…
↗
26
6CE4597400
UR SDS PROP.
-
Loading…
↗
26
6CE4597600
UR SDS PROP.
Propeller (3X15-3/4"X15"-T)
Loading…
↗
27
6CE45C8100
Propeller damper sds gen 1
Loading…
↗
28
61A4597400
UR NORMAL 3 BLADE
Propeller (3x14-1/2"x19"-t)
Loading…
↗
28
6D04597800
UR NORMAL 3 BLADE
-
Loading…
↗
28
6D04597200
UR NORMAL 3 BLADE
-
Loading…
↗
28
6D04597000
UR NORMAL 3 BLADE
-
Loading…
↗
28
6R445978A0
UR NORMAL 3 BLADE
-
Loading…
↗
28
6R445976A0
UR NORMAL 3 BLADE
-
Loading…
↗
28
6R445974A0
UR NORMAL 3 BLADE
-
Loading…
↗
28
6R445972A0
UR NORMAL 3 BLADE
-
Loading…
↗
28
6R445970A1
UR NORMAL 3 BLADE
-
Loading…
↗
28
61A4597800
UR NORMAL 3 BLADE
Propeller (3x15"x17"-t)
Loading…
↗
28
61A4597200
UR NORMAL 3 BLADE
Propeller (3x14-1/2"x21"-t)
Loading…
↗
28
6G54597803
UR NORMAL 3 BLADE
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
28
6G54597403
UR NORMAL 3 BLADE
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
28
6G54597202
UR NORMAL 3 BLADE
Propeller (3x13-3/4 x21 -m)
Loading…
↗
28
6G54597002
UR NORMAL 3 BLADE
Propeller (3x15-1/4 x15 -m)
Loading…
↗
29
6BR45B7000
UR NORMAL 4 BLADE
-
Loading…
↗
29
6BR45B7200
UR NORMAL 4 BLADE
-
Loading…
↗
29
6BR45B7400
UR NORMAL 4 BLADE
-
Loading…
↗
