F25AE (2004)
LOWER CASING & DRIVE 2

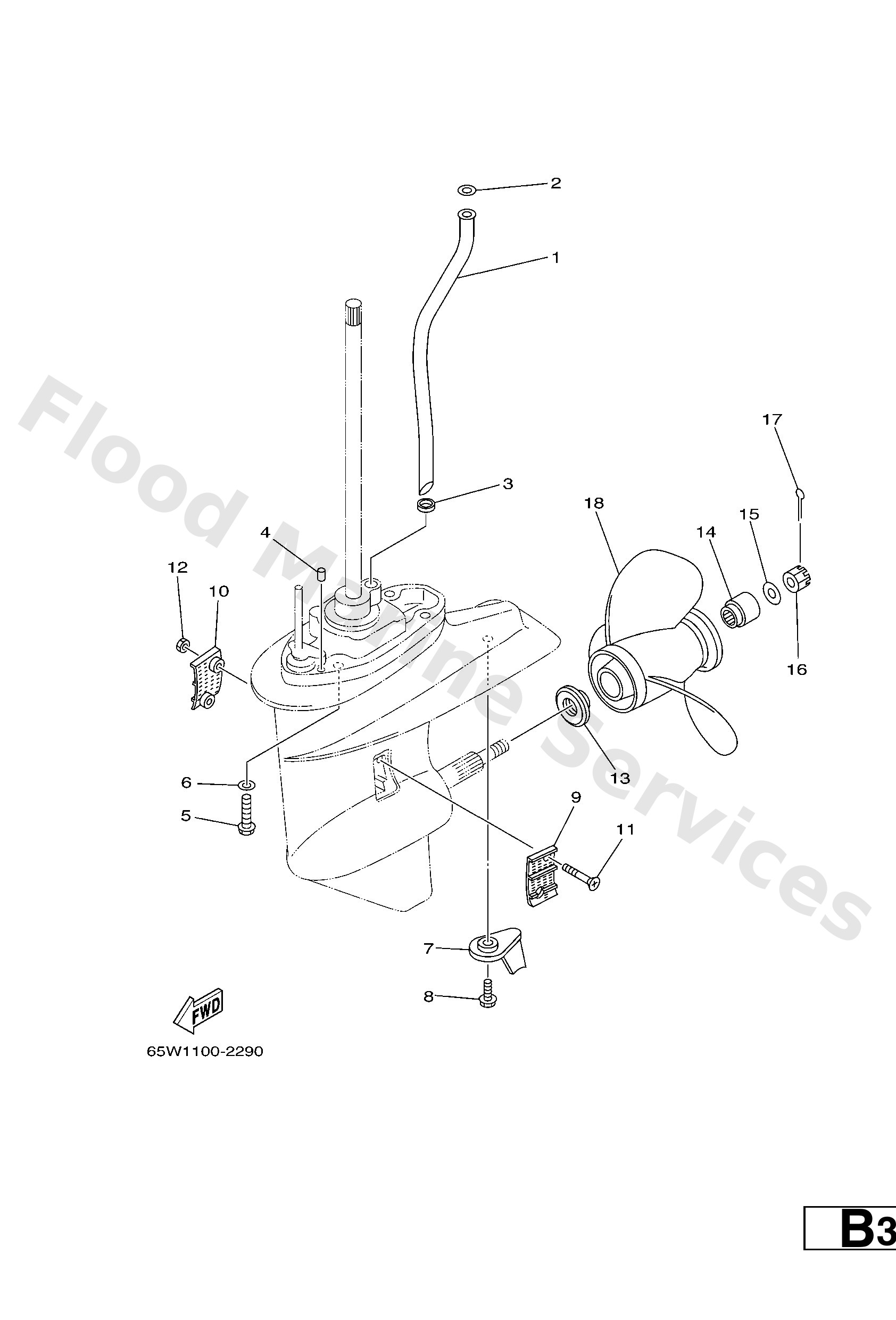

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
65W4436111
L
Tube, water
Loading…
↗
1
65W4436101
S
Tube, water
Loading…
↗
2
9020212060
Washer, plate(663)
Loading…
↗
3
9043010002
Gasket
Loading…
↗
4
9360611M24
Pin, dowel
Loading…
↗
5
9010510M12
Bolt (689)
Loading…
↗
6
9299510600
Washer, plate
Loading…
↗
7
61N4537100
Tab-trim
Loading…
↗
8
9011906M48
Bolt, with washer(61n)
Loading…
↗
9
6L24521400
Cover, water inlet
Loading…
↗
10
6L24521500
Cover, water inlet
Loading…
↗
11
9015105M05
Screw, countersunk
Loading…
↗
12
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
13
6L24598701
Spacer
Loading…
↗
14
6894599700
Spacer
Loading…
↗
15
9299014200
Washer, plain
Loading…
↗
16
9017114013
Nut(664)
Loading…
↗
17
9149030022
Pin, cotter
Loading…
↗
18
6644594101EL
UR
Propeller (3x9-7/8"x9"-f)
Loading…
↗
18
6644594301EL
UR
Propeller (3x9-7/8 x8 -f)
Loading…
↗
18
6644594500EL
UR
Propeller (3x9-7/8 x10-1/2 -f)
Loading…
↗
18
6644594701EL
UR
Propeller (3x9-7/8 x11-1/4 -f)
Loading…
↗
18
6644594902EL
UR
Propeller (3x9-7/8 x13 -f)
Loading…
↗
18
6644595200EL
UR
Propeller (3x9-7/8 x14 -f)
Loading…
↗
18
6644595400EL
UR
Propeller (3x9-7/8 x12 -f)
Loading…
↗
18
664459700098
UR
Propeller (3x9-1/8 x13 -f)
Loading…
↗
18
664459720098
UR
Propeller (3x9-1/8 x12 -f)
Loading…
↗
