F40FED (2015)
LOWER CASING & DRIVE 2

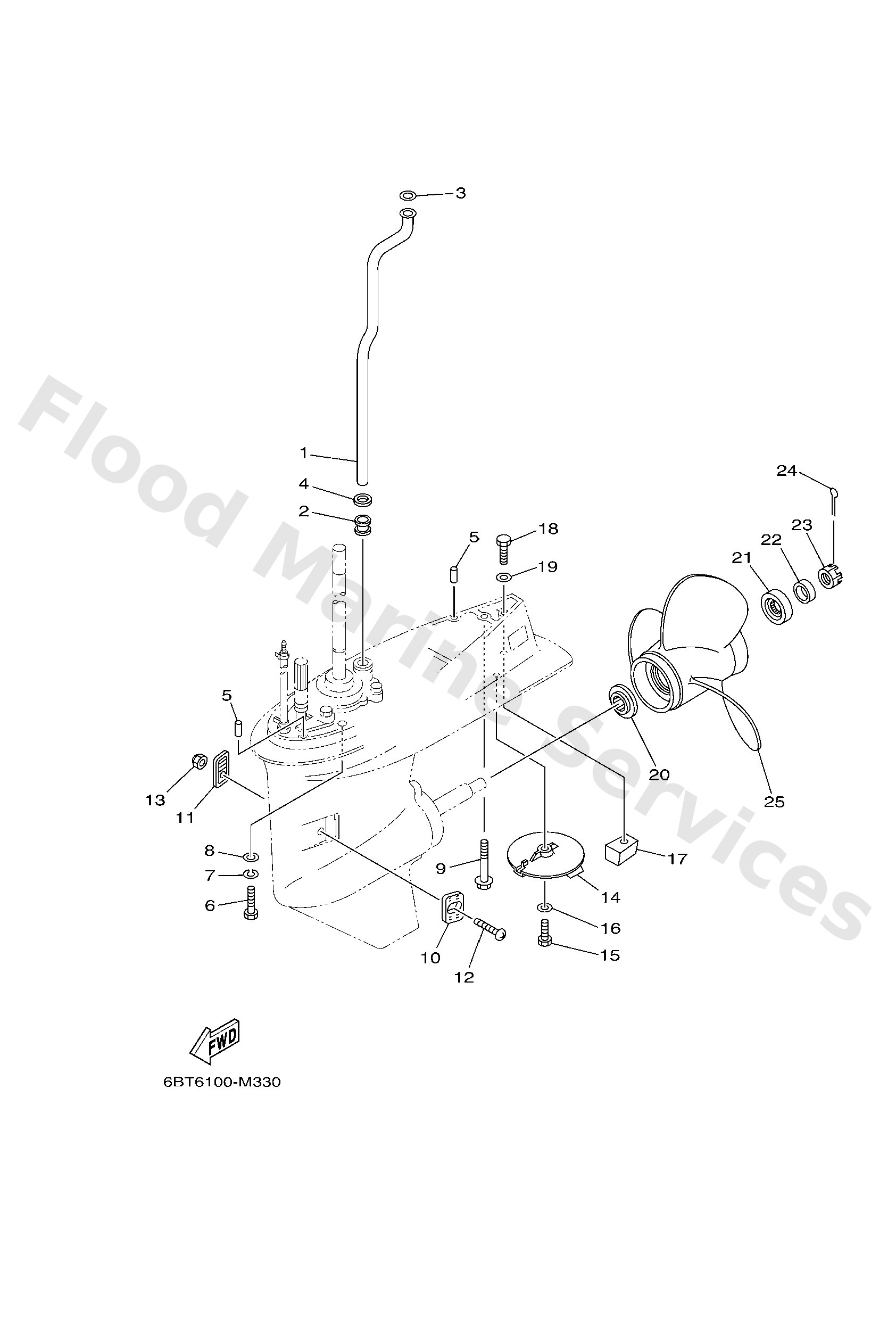

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
62Y4436100
L(21.0")
Tube, water
Loading…
↗
1
67C4436100
S(16.1")
Tube, water 1
Loading…
↗
2
6634436700
Damper, water seal 3
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9707510040
Bolt, hexagon deep recess
Loading…
↗
7
9299510100
Ybs67-10 washer, spring
Loading…
↗
8
9299510600
Washer, plate
Loading…
↗
9
9011908M84
Bolt, with washer
Loading…
↗
10
63D4521400
Cover, water inlet
Loading…
↗
11
63D4521500
Cover, water inlet
Loading…
↗
12
9015205010
Screw, countersunk
Loading…
↗
13
9538005600
Nut, hexagon (663)
Loading…
↗
14
67C4537100
Tab-trim
Loading…
↗
15
9709508025
Bolt (62g)
Loading…
↗
16
9299508600
Washer, plain (663)
Loading…
↗
17
67C4525100
Anode
Loading…
↗
18
9709508035
Bolt(70w)
Loading…
↗
20
6634598702
Spacer
Loading…
↗
21
66T4599700
Spacer 2
Loading…
↗
22
9038922M01
Bush
Loading…
↗
23
9017116011
Nut, castle (663)
Loading…
↗
24
9149030025
Pin cotter
Loading…
↗
25
69W4594300
UR
Propeller (3x11 x15 -g)
Loading…
↗
25
69W4594500
UR
Propeller (3x11-1/8"x13"-g)
Loading…
↗
25
6634597800
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
25
6634597600
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
25
6634597402
UR
Propeller (3x10-5/8"x13"-g)
Loading…
↗
25
6634593000
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
25
6974597000
UR
Propeller (ss 3x11-1/4"x14"-g)
Loading…
↗
25
6634597460
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
25
6634597260
UR
Propeller (3x12"x11"-g)
Loading…
↗
25
6634597060
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
25
6H54595800
UR WITH LIP CUP
Propeller (3x10-1/4"x14"-g)
Loading…
↗
25
6H54595200
UR WITH LIP CUP
Propeller (3x10-5/8"x12"-g)
Loading…
↗
25
6H54594500
UR WITH LIP CUP
Propeller (3x10-3/8"x13"-g)
Loading…
↗
25
6H54594300
UR WITH LIP CUP
Propeller (3x10"x15"-g)
Loading…
↗
25
6634595801
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
25
6634595601
UR
Propeller (3x12-1/4"x9"-g)
Loading…
↗
25
6634595202
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
25
6634594901
UR
Propeller (3x10-3/4"x16"-g)
Loading…
↗
25
6634594101
UR
Propeller (3x10-3/4"x17"-g)
Loading…
↗
25
69W4595200
UR
Propeller (3x11-3/8 x12 -g)
Loading…
↗
25
69W4594700
UR
Prop assembly (3x11-5/8"x11"-g)
Loading…
↗
