F40HET (2024)
LOWER CASING & DRIVE 2

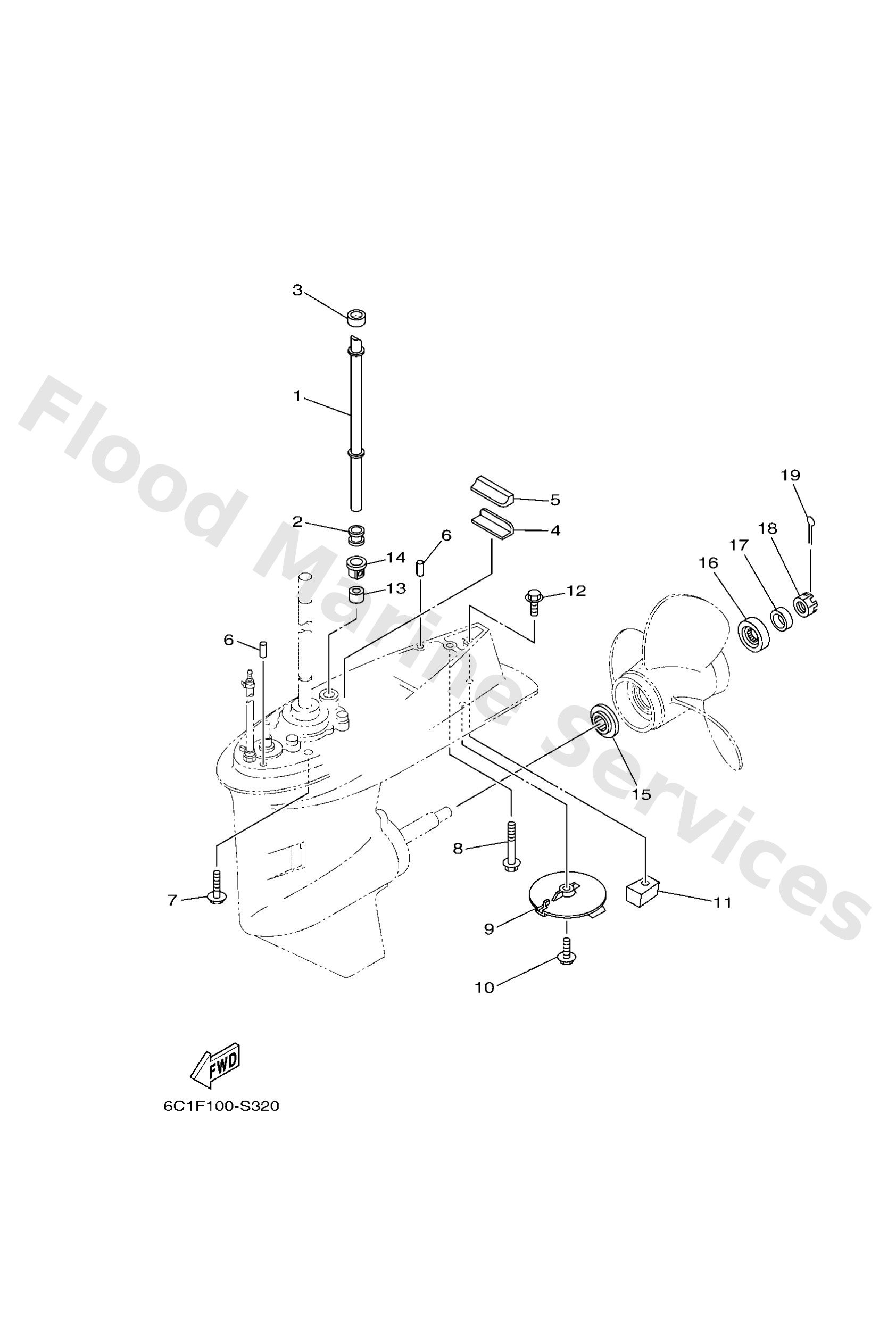

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6C54436100
L(20.7")
Tube, water 1
Loading…
↗
2
6634436701
Damper, water seal 3
Loading…
↗
3
6634436601
Damper, water seal 2
Loading…
↗
4
6634537600
Guide, seal damper
Loading…
↗
5
63D4537500
Damper, seal
Loading…
↗
6
9360612019
Pin, dowel (614)
Loading…
↗
7
9011910068
L(20.7")
Bolt, with washer
Loading…
↗
8
9011908195
L(20.7")
Bolt, with washer
Loading…
↗
9
67C4537100
Tab-trim
Loading…
↗
10
97E9508525
Bolt, hexagon w/w deep recess
Loading…
↗
11
67C4525100
Anode
Loading…
↗
12
97E9508535
Bolt, hexagon w/w deep recess
Loading…
↗
14
63D4431200
Cover, water pump housing
Loading…
↗
15
6634598702
Spacer
Loading…
↗
16
66T4599700
Spacer 2
Loading…
↗
17
9038922M01
Bush
Loading…
↗
18
9017116011
Nut, castle (663)
Loading…
↗
19
9149030025
Pin cotter
Loading…
↗
